For buyers seeking reliable, metal-to-metal holding during grinding, milling, or EDM work, a stainless steel magnetic chuck offers strong, repeatable clamping with simple setup. This guide highlights five top options, explaining who each is best for and why. Each product uses a 100–120 N/cm² magnetic force range and is designed to minimize residual magnetism for easy workpiece removal. Whether you need compact 6×6 inch chucks or larger 6×16 inch plates, this article helps you compare performance, operation, and suitability for different machining tasks.
| Product | ||
|---|---|---|
| Huikizne 6x12Inch Rectangular Magnetic Chuck | Surface grinding on larger workpieces | Optimized magnetic circuit with low residual magnetism |
| RUOXIJUFU 6×12 Inch Magnetic Chuck | Thin and small parts, consistent hold without power | Zero electricity design; easy ON/OFF with mechanical switch |
| TIANGUOHE 6×12 Inch Permanent Magnetic Chuck | Grinding and milling with high flatness | Uniform pole spacing; stable plane precision after cycles |
| TIANGUOHE 6×6 Inch Permanent Magnetic Chuck | Compact setups needing precise hold | Strong, uniform magnetic force in a smaller footprint |
| QWEXOB 6×16 Inch Permanent Magnetic Chuck | Large flat surfaces requiring robust clamping | Sealed unit with no electricity required |
Buyer note: Each entry below includes who it is best for, why selected, and a practical caution to help avoid common pitfalls such as unintended movement or surface marring during clamping. The evaluations emphasize objective, data-based attributes like magnetic force range, surface finish, and mechanical safety features.
Huikizne 6x12Inch Rectangular Magnetic Chuck
The Huikizne chuck uses a 6×12 inch footprint with a 100–120 N/cm² magnetic force. It features a smooth surface, uniform magnetic strip, and a refined magnetic circuit designed to minimize residual magnetism after machining. Best for larger surface grinding tasks where high holding power is needed without constant re-alignment. The integrated safety design reduces the risk of workpiece ejection during power loss. A limitation is that the device relies on a permanent magnet field and may require careful lifting or handling to avoid surface nicks on delicate parts.
Who it’s for: machinists doing routine surface grinding on moderate-to-large workpieces who want strong, predictable clamping and quick release when finished.
Why selected: It demonstrates a balanced combination of strong hold, smooth finish, and residual magnetism management, which supports higher efficiency in repetitive grinding cycles.
Caution: Ensure the workpiece surface is clean to prevent small particles from causing scratches or reduced grip during clamping.

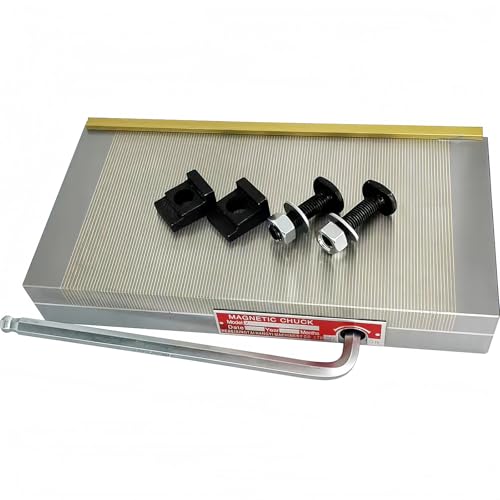

RUOXIJUFU 6×12 Inch Magnetic Chuck
This unit uses high-density fine pole magnetic design with 100–120 N/cm² holding force. The key advantage is zero electricity operation; you rotate the shaft 180° with the included wrench to turn the magnetic field on or off. It’s especially suited for setups where power reliability is a concern or when quick, tool-free ON/OFF control is preferred. The surface is finely ground for flatness and resistance to deformation over repeated cycles. A potential limitation is that the purely mechanical design may require more manual effort to switch states compared to powered chucks.
Who it’s for: shops prioritizing simplicity, electrical independence, and consistent clamping for small to large pieces without reliance on power sources.
Why selected: The Zero Electricity design enhances safety and reduces setup complexity, making it a practical choice for busy machining cells.
Caution: Confirm that the shaft access and wrench fit your machine’s geometry to avoid interference during operation.
TIANGUOHE Permanent Magnetic Chuck, 6×12 Inch
This TIANGUOHE model provides a 6×12 inch table with 100–120 N/cm² magnetic suction. It uses high-performance magnetic steel (N42–N45) and features a fine pole arrangement to ensure uniform force and minimal risk of scratching the workpiece. The design maintains plane precision when switching ON/OFF, which supports stable grinding results across cycles. A potential drawback is that the absence of electrical control may slow adjustments during rapid workflow changes compared to powered chucks.
Who it’s for: manufacturers needing a robust, flat magnetic surface for grinding and milling with consistent accuracy and minimal surface impact.
Why selected: Its emphasis on uniform force distribution and high flatness makes it a reliable foundation for precision operations in traditional machine shops.
Caution: Inspect the magnetic surface for any residue after repeated ON/OFF cycles to preserve planarity and clamping performance.
TIANGUOHE 6×6 Inch Permanent Magnetic Chuck
This smaller 6×6 inch chuck maintains 100–120 N/cm² magnetic force and is designed for compact setups. The pole spacing is refined to deliver uniform holding across the face while minimizing surface damage risk. It uses a simple ON/OFF wrench operation and preserves surface precision during switching. The compact footprint makes it ideal for working on small parts or tight fixtures where larger chucks won’t fit. A caveat is that the clamping area is smaller, which may limit the size of workpieces you can secure in a single setup.
Who it’s for: machinists working with small or delicate parts that require precise, repeatable clamping in restricted spaces.
Why selected: It provides a strong, uniform grip in a compact form factor, balancing power and maneuverability for tight fixtures.
Caution: Verify that the intended workpieces fit within the 6×6 inch footprint to avoid partial clamping or tipping during milling.
QWEXOB Permanent Magnetic Chuck, 6×16 Inch
The QWEXOB unit measures 16x6x1.8 inches with a magnetic force of at least 100 N/cm² and supports a substantial load capacity. It combines a durable copper-based construction with an easy-to-operate lock-on/lock-off handle for manual control. No electricity is required, which reduces the risk of electrical faults. Best for large flat surfaces requiring strong, uniform clamping. A potential limitation is that the lack of active cooling or conditioning features means performance can be sensitive to very high-temperature environments or prolonged use without breaks.
Who it’s for: shops that routinely clamp large workpieces and value a straightforward mechanical operation without wiring or controls.
Why selected: Its large 16×6 size provides extensive clamping area and the sealed design protects the interior, helping maintain a clean, durable surface over time.
Caution: Ensure proper handling to avoid pinching fingers when switching ON/OFF during busy cycles.
Buying Guide
What are your must-have features?
Key considerations include magnetic force (100–120 N/cm² is common in these models), surface flatness, and the presence of a sealed or mechanical ON/OFF system. A sealed surface improves resistance to dirt, while a mechanical switch reduces reliance on electrical power and prevents accidental loss of hold during power outages.
What size fits your worktable?
Choose a size that matches your typical workpiece area. Six-inch to twelve-inch footprints accommodate many standard grinding tasks, while larger 16-inch lengths provide broader coverage for wide surfaces. Smaller chucks are ideal for tight fixtures and delicate items.
How important is ease of release?
Chucks with fast, dependable release reduce handling time between operations. Models with zero-electricity release or simple wrench-based ON/OFF can improve workflow efficiency, especially in unattended or multi-task environments.
Should you prioritize surface protection?
A smooth, finely ground surface reduces the risk of marring workpieces. If your work involves soft metals or fragile coatings, ensure the design minimizes direct contact friction and supports uniform contact across the face.
What maintenance is required?
Regular cleaning to remove chips and debris is essential. Inspect for residual magnetism after repeated ON/OFF cycles and verify flatness periodically. For sealed units, check seals and surface integrity to maintain consistent clamping force over time.
Other considerations
Consider the availability of a mechanical locking feature, the type of magnetic steel (N42–N45 grades are common), and whether the device supports vertical mounting on related tooling. These factors influence long-term reliability and compatibility with existing machines.
FAQ
- What does 100–120 N/cm² mean for chuck strength? It indicates the axial holding force per unit area, reflecting the chuck’s ability to resist movement during machining. Higher values generally mean stronger grip for larger or heavier parts.
- Do I need power for these chucks? Most listed models are permanent magnets that do not require electricity. Some offer zero-electricity ON/OFF via mechanical control, which can improve safety and simplicity.
- Will these chucks scratch delicate parts? The pole design and carefully finished surfaces aim to minimize scratching, but proper workholding setup and surface cleanliness are essential to prevent marks.
- What size should I buy? Match the chuck footprint to the largest workpiece area you typically clamp. If you work with many small parts, a compact 6×6 inch unit can be advantageous.
- Is maintenance difficult? Routine cleaning and occasional checks for residual magnetism are sufficient for most users. Sealed designs can reduce debris ingress and extend life in dirty environments.
- Can I use these with a drill press or lathe? Many chucks are designed for grinding, milling, and similar operations. Verify compatibility with your machine’s geometry and fixture mounting before use.
