Selecting the right hydraulic directional control valve (DCV) is essential for reliable operation of tractors, loaders, log splitters, and other hydraulic machinery. This guide features five top-rated models, highlighting flow rate, port configuration, and valve action to help you compare performance and determine the best fit for your system.
The following quick reference table summarizes the five selected valves, including their standout attributes and typical applications:
| Product | Brand | Max Flow (GPM) | Max Pressure (PSI) | Port Type | Ideal For |
|---|---|---|---|---|---|
| Vevor 2 Spool Hydraulic Directional Control Valve | VEVOR | 11 | 3600 | SAE | Double-acting cylinders, tractors, loaders |
| GYZJ Hydraulic Flow Control Valve 1 Spool | GYZJ | 11 | 3600 | G1/2 | Small tractors, loaders, log splitters |
| VEVOR Hydraulic Log Splitter Valve 1 Spool | VEVOR | 25 | 3626 | 1/2″ NPT / 3/4″ NPT | Log splitters, high-flow tasks |
| Vevor 3 Spool Hydraulic Control Valve | VEVOR | 11 | 3600 | SAE | Double-acting cylinders, multiple circuits |
| ALL-CARB Hydraulic Valve 1 Spool | ALL-CARB | 13 | 3600 | BSPP | Small tractors, loaders, log splitters |
Vevor 2 Spool Hydraulic Directional Control Valve
Model overview: This double-acting hydraulic control valve features two spools with #8 BSPP O-ring in/out ports and a cast iron body designed for durability. It includes spring-return spools, returning to the neutral position after actuation. The valve supports up to 11 GPM and 3600 PSI, making it suitable for compact tractors, loaders, and hydraulic tanks where steady, reliable control is needed.
Key considerations:
– Double-acting operation enables independent control of two hydraulic circuits.
– Spring return ensures a safe neutral position without a separate actuator.
– Cast iron construction provides rugged durability in field conditions.
– Check compatibility with your hose fittings (BSPP vs other standards) and port sizing to ensure leak-free connections.
GYZJ Hydraulic Flow Control Valve 1 Spool
Model overview: A 1-spool valve designed for small tractors and loaders, rated up to 3600 PSI and 11 GPM. It includes G1/2″ ports and a spring-return mechanism, simplifying operation and resetting to neutral after use. The valve is suitable for controlling double-acting cylinders in compact hydraulic setups and is commonly used with joystick control for precise handling.
Key considerations:
– Opt for this unit when you need a compact, economical solution for light to medium-duty hydraulic circuits.
– Ensure the G1/2″ port compatibility with existing hoses and fittings.
– Double-acting functionality is ideal for bidirectional tool extension and retracting actions.
VEVOR Hydraulic Log Splitter Valve 1 Spool
Model overview: This high-flow 1-spool valve is designed for log splitters and heavy hydraulic tasks. It supports up to 25 GPM and up to 3626 PSI, with 1/2″ NPT working ports and 3/4″ NPT inlet/outlet ports. The built-in spring return and joystick-friendly design help operators control large hydraulic needs with smoother responses.
Key considerations:
– High flow enables faster cycle times for splitting and other high-demand operations.
– Check porting to match your hose sizes and control layout.
– Consider including a secondary relief or backflow protection if your system experiences pressure spikes.
Vevor 3 Spool Hydraulic Control Valve
Model overview: This three-spool valve supports double-acting cylinders and provides multiple circuit control in a single unit. It uses cast iron construction with three spools and #8 SAE O-ring ports, delivering up to 11 GPM and 3600 PSI relief range. This setup is suited for more complex hydraulic systems on tractors or loaders that need separate control for multiple functions.
Key considerations:
– Three-spool design supports more complex actuation scenarios without adding external manifolds.
– Ensure correct port mapping for each circuit to prevent crossflow.
– Verify mechanical clearance and handle ergonomics when wiring joysticks for multiple functions.
ALL-CARB Hydraulic Valve 1 Spool
Model overview: A compact 1-spool unit with 13 GPM flow and 3600 PSI relief. BSPP ports are used for A and B lines, with P, T, and N ports also BSPP. The design prioritizes efficiency and reliability for small tractors, loaders, and log splitters. An integrated check valve helps prevent backflow, contributing to system stability during switching.
Key considerations:
– Ideal for smaller hydraulic circuits where space is limited.
– BSPP porting requires compatible hoses and adapters.
– The relief setting should be tuned to prevent over-pressurization while maintaining quick actuation.

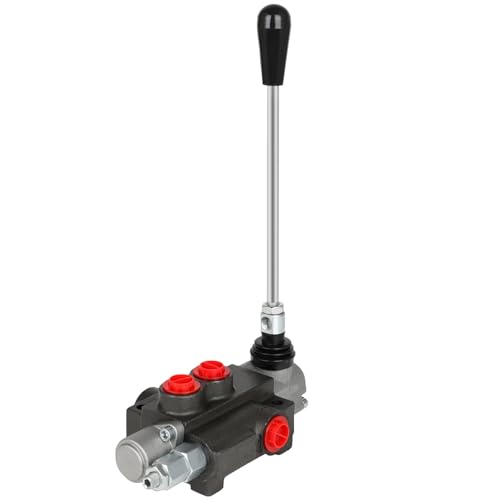

Dollate Hydraulic Flow Control Valve 1 Spool
Model overview: This 1-spool valve offers a maximum of 11 GPM at up to 3600 PSI, with G1/2″ inlet/outlet ports and spring reset. The unit employs a parallel oil circuit design to power auxiliary components and provides straightforward joystick-style actuation. It’s well-suited for tractor loaders and other double-acting configurations where simple, reliable flow control is needed.
Key considerations:
– Evaluate whether a parallel circuit aligns with your hydraulic layout.
– Spring reset promotes operator convenience by returning the lever to neutral.
– Ensure the valve body tolerances and seals match your system’s pressure and temperature range.
kimllier 2 Spool Hydraulic Valve
Model overview: This two-spool valve provides up to 21 GPM and 3625 PSI, with a comprehensive SAE O-ring port system. It supports open center operation and both B and A work ports configured for robust control of double-acting cylinders. A built-in check valve prevents oil return, while an overflow valve helps regulate system pressure for safety and consistency.
Key considerations:
– Higher flow capacity suits heavier loads and faster cycling.
– Confirm the 7/8-14 and related thread sizes for proper hose and fitting compatibility.
– Verify the valve’s overall footprint and mounting compatibility with your machine.
Marddpair 2S-11GPM Cast Iron Valve
Model overview: This 2-spool, double-acting valve is built with cast iron for durability and reliability, offering 11 GPM and a 3600 PSI relief range. It includes dual valve cores and a spring return for neutral positioning. It’s designed for tractors, loaders, and tanks where dependable performance is needed across multiple hydraulic functions.
Key considerations:
– Durability is a priority; check for corrosion resistance in field conditions.
– Ensure port sizing and thread standards align with existing hoses.
– Consider installing a monitor or pressure gauge to track relief performance under load.
Buying Guide: Key Purchase Considerations
- Flow rate vs. load requirements: Higher GPM enables faster action but may require larger reservoirs and cooling. Match the valve’s flow rating to your hydraulic pump capacity and the expected load.
- Port sizing and thread standards: Common standards include SAE, BSPP, BSP, and NPT. Verify port types (A, B, P, T, N) and thread sizes for leak-free connections.
- Actuation method and spring return: Spool configurations (1-, 2-, or 3-spool) determine how many circuits you can control. Spring-return spools return to neutral automatically, which can improve safety and reset behavior.
- Open-center vs. closed-center systems: Some valves are designed for open-center circuits; ensure compatibility with your existing hydraulic topology to prevent undesired pressure drops.
- Port arrangement and footprint: Check the physical size and mounting pattern. Complex multi-spool designs require adequate space and mounting clarity for installation and service.
- Durability and materials: Cast iron bodies deliver rugged use in heavy-duty settings; consider corrosion resistance and environmental exposure (dust, moisture, temperature).
- Safety features and backflow control: Built-in check valves help prevent oil return into the wrong circuit. Consider adding relief valves or pressure sensors for system protection.
- Maintenance and replaceability: Look for valves with easily accessible seals and spares. Availability of replacement cores and O-rings reduces downtime.
Overall, when selecting a hydraulic directional control valve, prioritize compatibility with your pump flow, port standards, circuit count, and the duty cycle of your equipment. For small tractors and loaders, single- or two-spool valves with reliable spring return often deliver the best balance of control and simplicity. For more complex systems or high-flow log splitters, multi-spool configurations provide greater flexibility at the cost of added complexity.
