When selecting a tri clamp diaphragm valve, the top options below are designed for ultrapure, sterile, or corrosive fluids and suit different pipe sizes. This guide highlights five choices, noting ideal buyers and why each is a strong pick. Use cases vary from pharmaceutical cleanrooms to food-grade processing. The quick-reference table after the intro summarizes who each valve is best for.
| Product | Best For |
|---|---|
| DERNORD 2″ Tri Clamp Valve | Ultra-pure and corrosive fluids in large-bore systems |
| DERNORD 1.5″ Tri Clamp Valve | Sterile, mid-size piping projects |
| QiiMii 3/4″ Tri Clamp Mini Diaphragm Valve | Compact pharmaceutical or lab-scale lines |
| QiiMii 1/2″ Tri Clamp Mini Diaphragm Valve | Small-diameter, precision control in clean environments |
| DYRABREST Forged Stainless Steel Diaphragm Valve | High-purity or harsh-fluid control with robust construction |
DERNORD 2″ Tri Clamp Valve (2 inch Tube OD)
Best for high-capacity lines demanding ultrapure or sterile fluid handling. The SS316L body and silicone seal support corrosion resistance and cleanability in processing pipelines. The 2″ size fits 2 inch tube OD, making it suitable for mid-to-large systems in pharma, biotech, and food processing.
Who it’s best for: facilities needing robust, sanitary performance in larger-diameter assemblies. Why selected: strong material compatibility and a diaphragm design that minimizes contamination risk. Caution: larger footprint may mean higher installation space requirements.
DERNORD 1.5″ Tri Clamp Valve (1.5 inch Tube OD)
Best for mid-sized clean systems requiring reliable fluid separation and easy maintenance. With SS316L construction and a silicone seal, this valve delivers dependable durability in sterile and corrosive environments.
Who it’s best for: mid-scale pharmaceutical or biotech setups needing a compact but sturdy diaphragm valve. Why selected: solid versatility for a range of fluids. Caution: limited to 1.5″ line size; not ideal for very large-diameter feeds.
QiiMii SS316L Tri Clamp Mini Diaphragm Valve 3/4″
Best for compact, sterile lines in pharmaceutical or research settings. This valve uses SS316L with diaphragm separation, ensuring hermetic isolation of the operating mechanism from process fluids. Ideal for autoclavable applications in cleanrooms.
Who it’s best for: labs and small-scale production lines prioritizing hygiene and clean-in-place operation. Why selected: small footprint and autoclavable design. Caution: smaller size may limit flow compared to larger units.

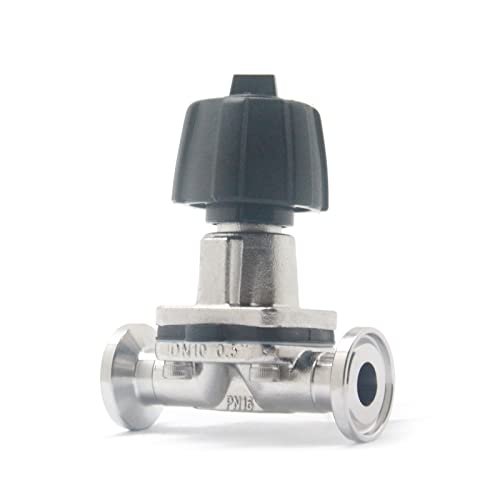

QiiMii SS316 Tri Clamp Mini Diaphragm Valve 1/2″
Best for ultra-compact pipelines where precise, sanitary control is required. The 1/2″ valve shares the same diaphragm isolation and corrosion resistance as larger QiiMii models, enabling clean and safe operation in tight spaces.
Who it’s best for: micro-scale processes or laboratory routes needing tight spacing. Why selected: preserved diaphragm isolation with a compact form factor. Caution: flow capacity is naturally limited by size.
DYRABREST Forged Stainless Steel Diaphragm Valve 1.5″ / 1″
Best for demanding clean or sterile fluid control with a robust stainless-steel build. It features a diaphragm that seals fluids from the operating mechanism, supporting use in corrosive or abrasive environments.
Who it’s best for: facilities needing heavy-duty diaphragm valves with strong material integrity. Why selected: forged stainless construction and wide diaphragm material options enhance longevity. Caution: data notes a broad temperature range; verify compatibility with your specific fluid temperature.
Buying Guide
What size matters?
Valve size should match the pipe OD and flow requirements. Larger diameters provide higher flow but require more space. For tight systems, consider 1/2″ or 3/4″ models.
Material and seals
Look for SS316L bodies for chemical resistance and silicone or EPDM seals for cleanability. Ensure the diaphragm and cap materials align with your fluid’s sterility and temperature needs.
Sterility and cleaning
Diaphragm valves separate the moving parts from the process fluid, aiding cleanability. Autoclavable options are essential in pharma and biotech environments.
Application fit
Choose based on your process: ultrapure/sterile fluids require robust hygienic design; corrosive or abrasive fluids demand compatible seals and resilient metal bodies.
Installation considerations
Ensure space for installation and future maintenance. Some valves require unclamped access or additional fittings; verify flange or tri-clamp compatibility with your system.
What to avoid
Avoid selecting a valve far larger than your piping, as it can cause unnecessary pressure drops. Also avoid mixed materials that contradict your system’s chemical compatibility.
FAQs
- What is a tri clamp diaphragm valve? A valve with a diaphragm seal that separates the fluid from the valve mechanism and uses tri-clamp connections for sanitary piping.
- Which valve size is best for pharmaceutical lines? Smaller sizes like 1/2″ to 3/4″ are common for lab-scale or tight cleanroom lines, while 1.5″ to 2″ fit mid-to-large processes.
- Is SS316L necessary for all fluids? Not always, but SS316L offers strong corrosion resistance for many sterile or ultrapure applications.
- Are these valves autoclavable? Some models are fully autoclavable; check the product’s stated autoclavable capability.
- What is the advantage of a diaphragm valve? It provides hermetic isolation of the operating mechanism, reducing contamination risk and enabling easy cleaning.
- Can I use these valves for abrasive fluids? Yes, but choose models with suitable seals and robust diaphragms designed for abrasive compatibility.
