When selecting a taper lock shaft coupling, buyers typically seek fast installation, strong clamping, and compatibility with standard shaft sizes. This guide highlights five top products that represent practical choices for industrial machinery, conveyors, and drives leveraging taper lock technology. The picks target different needs: compact hubs for small shafts, higher-torque hubs for medium power, and a modern, tool-free locking sleeve option for rugged environments. Each entry explains who it’s best for and why it stands out, plus one practical caution.
| Product | Brand | Best For |
|---|---|---|
| Taper Lock Tire Coupling Hub, WE3, Max 1″ | TB Woods | Small to medium shafts requiring quick bore adaptation |
| Taper Lock Tire Coupling Hub, WE4, Max 1″ | TB Woods | Compact, higher torque alignment with standard bore ranges |
| Taper Lock Coupling Hub, WE5, Max 1-1/8″ | TB Woods | Medium-to-large shaft applications demanding robust clamps |
| Taper Lock Cplng Hub, WE50, Max 2-11/16″ | TB Woods | Higher torque and larger shaft diameters needing efficient locking |
| Coupling Keyless Sleeve 1Pcs TLK200 KTR100 | WELDRIC | High-torque, backlash-free locking with quick installation |
TB Woods WE3 Taper Lock Hub
The WE3 hub is designed for small to mid-size shafts with a maximum 1″ bore, enabling quick size changes without fabricating new hubs. Best for light- to moderate-load machines where fast wheel or pulley changes minimize downtime. The product is categorized under Power Transmission—Shaft Couplings, Collars, and Universal Joints, indicating standard compatibility with common coupling components. A practical limitation is its 1″ max bore, which may require alternative parts for larger shafts.

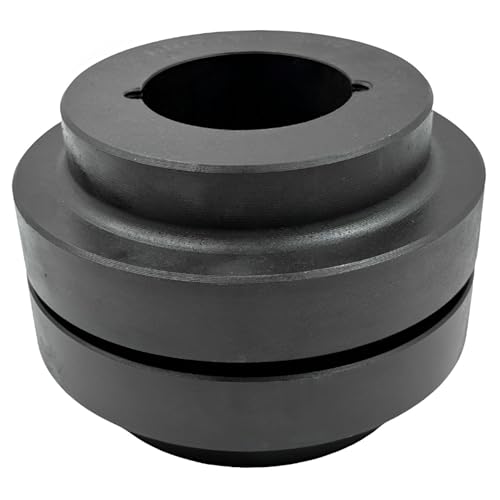

HRC150 Shaft Coupling Rubber Element
The HRC150 rubber element coupling is noted for a rubber element and absence of taper lock bushes, appealing to setups that minimize vibration and require flexible damping. It is best for applications needing a simple, lightweight rubber connection with modest torque capacity. Best for lighter-duty conveyors or drives where some misalignment can be tolerated. A limitation is the no-bush variant, which means you may miss the robustness of a full taper-lock assembly in high-torque environments.
TB Woods WE4 Taper Lock Hub
WE4 is a compact, higher-torque option in the WE series, suitable for small-to-medium drives requiring reliable locking with a 1″ bore range. Its design supports straightforward field swaps and alignment checks, making it a popular choice for maintenance-friendly equipment. Choose this if you need consistent clamping across routine line-shifts. A caveat is that torque demands may exceed what 1″ bore variants deliver in extreme conditions, prompting a larger WE model or alternative coupling.
TB Woods WE5 Taper Lock Hub
WE5 covers max 1-1/8″ shafts, providing a balanced option between size and torque. It’s best for mid-range to moderate-high torque applications where quick-coupling changes are frequent. The hub’s taper-lock interface supports straightforward mounting and re-boring if shaft changes occur. The primary limitation is the need to verify compatibility for larger belt or chain drives when moving beyond a 1-1/8″ bore.
BALDOR DODGE 099052 Taper-Lock
The BALDOR DODGE 099052 represents a flanged taper-lock option designed for chain coupling contexts and robust installations. This choice suits heavier-duty applications where a flanged, secure mounting helps maintain alignment under shock loads. It is best for powered conveyors and machinery that benefit from added rigidity. Limitations may include broader flange interfaces that require careful mounting space and bolt pattern compatibility with existing equipment.

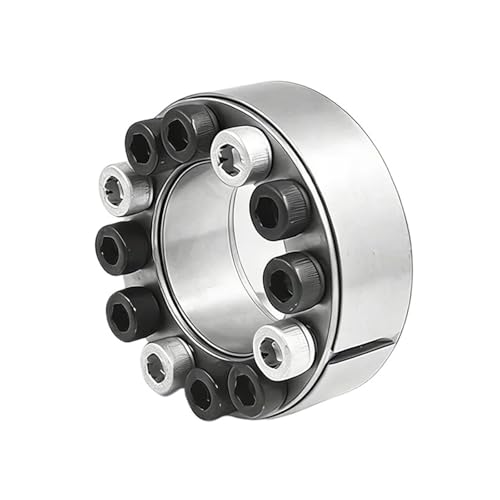

AURVIX Expansion Sleeve Locking
The Expansion Sleeve Coupling by AURVIX uses friction locking without keys, eliminating keyway wear and backlash while transferring torque through radial clamping. This makes it a strong candidate for high-torque, shock-heavy environments where maintaining shaft integrity is critical. It avoids axial loads on the shaft but requires precise bolt tightening to set clamping force. Best for demanding power transmission setups; caution with installation accuracy to prevent insufficient grip.
Buying Guide: Taper Lock Shaft Coupling Essentials
What to consider when choosing a taper lock shaft coupling:
- Torque capacity and shaft size: Match the bore and torque to your motor and driven equipment. Larger bore models handle more torque but require more space.
- Installation and maintenance: Taper-lock hubs install quickly but require correct tightening procedures and compatible keys or sleeves where applicable.
- Misalignment tolerance: Some models include rubber or friction locking for damping; others rely on precise alignment and rigid clamping.
- Environmental conditions: Consider corrosion resistance, temperature, and exposure to chemicals which affect hub materials and rubber elements.
- Upgrade path: If your system may scale, prefer a family with compatible future hubs and sleeves to minimize redesigns.
Frequently Asked Questions
- What is a taper lock coupling?
A taper lock coupling uses a tapered bore and locking collar to secure a hub onto a shaft, enabling quick changes and strong clamping without set screws.
- When should I choose a keyless locking sleeve?
Keyless sleeves reduce backlash and wear by using radial expansion, useful for high-torque, precision drives where traditional keyways introduce wobble.
- Are taper lock hubs suitable for high-speed applications?
Yes, provided the hub and shaft are properly matched for speed, torque, and balance; always check manufacturer guidelines for RPM limits.
- What maintenance does a taper lock system require?
Regular inspection of locking elements, bolts, and bore wear helps maintain clamping force and alignment.
- Can I mix brands in a single drive?
Mixing brands is possible but verify tolerances and fit standards to avoid misalignment or reduced clamping efficiency.
- Which product is best for high shock loading?
Expansion sleeves and heavy-duty taper-lock hubs designed for shock absorption are preferred in such conditions.
