The best steel tube framing system choices depend on your project needs, including load, size, and ease of assembly. This guide highlights five solid options suited for DIY frames, light-duty racks, and structural framing. It explains who each product is best for, why it was selected, and any notable limitations to consider before you buy. Perfect for contractors, makers, and hobbyists building frames, enclosures, or support structures.
Summary of chosen products:
| Product | Material/Size | Best For | Why Selected |
|---|---|---|---|
| Small Parts ALL22183-4 Rectangular Tube | 0.120″ wall, 1″ x 2″, 4′ length | Light to mid-duty framing | Standard mill finish rectangular tube for rigid frames |
| 14ga Square Tube 2″ x 2″ | 0.08″ wall, 2″ x 2″ | Budget-friendly frames | Mild steel, easy to weld and assemble |
| 1.25″ OD x 1/8″ Wall DOM Tube | Seamless mild steel, 1.25″ OD | Smooth interior for moving parts | DOM stainless-like consistency for precise builds |
| 1/8″ x 3/4″ x 3/4″ Square Tube | 1/8″ wall, 3/4″ square | Compact frames | Strong relative for tight spaces |
| 1/8″ Wall x 2″ x 4″ Rectangle Tube | 1/8″ wall, 2″ x 4″ | Medium-width frames | Standard A-500 grade for sturdy frames |
Small Parts ALL22183-4 Unpolished Rectangular Tube
Product type: Rectangular steel tube with 1″ height x 2″ width, 0.120″ wall, 4′ length. Best for: light to mid-duty framing projects where a rigid rectangular profile is needed. Selection reason: Consistent mill finish and standard dimensions simplify alignment and welding. Limitation: Length is fixed at 4 feet, which may require joining for longer spans.
14ga 2″ x 2″ Mild Steel Square Tube
Product type: 14ga (.08″) wall, 2″ x 2″ square tube, hot rolled. Best for: budget-friendly framing where square profiles are preferred for corner stability. Selection reason: Mild steel is easy to cut and weld, offering solid value for standard frames. Limitation: Heavier gauge may limit flexibility for very light-duty applications.
1.25″ OD x 1/8″ Wall DOM Steel Tube
Product type: DOM (drawn over mandrel) steel tube, 1.25″ OD, 1/8″ wall. Best for: projects needing smoother interior surfaces for sliding components or precise fits. Selection reason: DOM tubes provide consistent diameter and wall thickness with improved straightness. Limitation: Typically higher cost than some welded tubes.

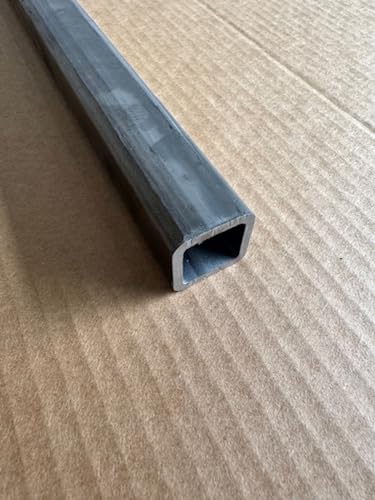

1/8″ x 3/4″ x 3/4″ Mild Steel Square Tube
Product type: 1/8″ wall, 3/4″ square tube. Best for: compact framing where space is limited and weight matters. Selection reason: Small footprint with adequate strength for light to mid-duty frames. Limitation: Smaller cross-section limits load-bearing capacity compared with larger profiles.
1/8″ Wall x 2″ x 4″ Rectangle Tube
Product type: 2″ x 4″ rectangle tube with 1/8″ wall. Best for: medium-width framing where both width and height contribute to stability. Selection reason: ASTM A-500 Grade B specification often implies reliable structural performance. Limitation: Larger rectangular profiles can be less maneuverable in tight spaces.
1/4″ Wall 3″ x 3″ Mild Steel Square Tube
Product type: 1/4″ wall, 3″ x 3″ square tube, A36 hot rolled. Best for: projects requiring stronger square profiles and higher rigidity per footprint. Selection reason: A36 hot rolled steel provides robust performance for heavier-duty framing. Limitation: Heavier and possibly harder to cut than lighter gauges.
Buying Guide: Steel Tube Framing System Essentials
What size and shape should you choose? Consider the load requirements, the space available, and how you plan to connect sections. Rectangular and square tubes offer different bending characteristics; DOM tubes offer smoother interiors for sliding parts. For rough environments, hot-rolled steel tends to be tougher, while mild steel can be easier to work with for DIY builds.
How to decide between square, rectangular, and round profiles? Square and rectangular tubes provide predictable planes for fast assembly and welds. DOM tubes offer smoother interior dimensions for components that move or slide. Round tubes excel in curved frames or dramatic load distribution, though they aren’t represented in this selection.
What are common limitations to watch for? Weight considerations, wall thickness, and product tolerances impact strength and fit. Thicker walls increase rigidity but add weight and cost. Ensure compatible end connections or fittings if you plan to assemble a larger frame.
Design considerations
- Consistency: Choose tubes with uniform wall thickness for predictable joints.
- Connectors: Plan for corner brackets, welds, or bolt-together systems that suit the tube profiles.
- Finishing: Mill finish vs. hot-rolled finish affects welding ease and corrosion resistance.
- Workability: Lighter gauges are easier to cut and weld; heavier gauges handle higher loads.
- Availability: Standard sizes expedite sourcing and help with interchangeability.
Quick comparison by use-case
- Light-duty display frames: 1″ x 2″ rectangular, 4′ lengths
- Budget racks: 2″ x 2″ mild steel square tubes
- Sliding components or precise fits: 1.25″ DOM steel tube
- Compact space framing: 3/4″ square tubes (1/8″ wall)
- Medium-duty enclosures: 2″ x 4″ rectangle tube
FAQ
- What is DOM steel tube best used for? It provides precise dimensions and smooth interiors, suitable for components that require sliding or close-tolerance fits.
- Is hot-rolled steel stronger than mild steel for framing? Hot-rolled is typically tougher and can handle higher impact, but mild steel is easier to fabricate.
- Can I weld these steel tubes together? Yes, most of these tubes weld well, but verify alloy and fit before heavy use.
- What should I know about tube thickness? Thicker walls increase strength but add weight and cost; match thickness to your load needs.
- How do I choose the right profile? For frames with flat planes, square or rectangular tubes are preferable; for ease of movement, consider DOM or lighter gauges.
- Are there compatibility concerns with fittings? Yes—check connection types and pipe thread guidelines when selecting components.
