Answering the common buyer question: which stainless steel vacuum tubing options deliver reliable connections, flexible installation, and long-term durability for KF/ISO vacuum systems? This guide highlights five practical choices, clarifying who each product is best for, and why it was selected. Ideal buyers include researchers, technicians, and hobbyists assembling UHV or lab vacuum setups who need robust, bendable tubes, compatible fittings, and clear specifications.
Quick overview of featured products:
- HFS KF-25 Vacuum Bellows Hose, 1000 mm (40 in) – best for long runs and flexible connections
- QSP KF-25 SS304 Corrugated Bellows Hose, 1000 mm – best for flexible, economical installs
- HFS KF-25 Vacuum Bellows Hose, 500 mm (20 in) – best for compact layouts
- EastVAC KF25 Stainless Steel 304 Kit, 750 mm – best for complete kit needs
- uxcell Stainless Steel Tubing Coil, 1/4″ OD x 10 ft – best for modular general tubing runs
HFS KF-25 Vacuum Bellows Hose 1000mm
Key features: KF-25 x 40″, made from 304 stainless steel, soft and flexible, vibration-absorbing, designed for ISO-KF connections, includes clamps and O-ring options. Best for: users needing a long, flexible connection with standard KF25 compatibility for NW/KF vacuum components. Caution: higher flexibility can mean more prone to kinking if not properly supported along long spans.

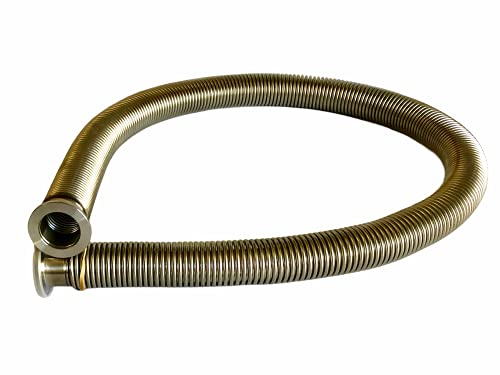

QSP KF-25 SS304 Corrugated Bellows Hose 1000mm
Key features: KF-25 connection, 304 stainless steel, flexible corrugated design. Best for: setups requiring straightforward, durable, flexible connections at standard KF25 sizing. Caution: data notes limited details on additional components—verify clamp and O-ring compatibility for your system.
HFS KF-25 Vacuum Bellows Hose 20inch
Key features: 20″ length, 304 stainless steel, ISO-KF compliant, includes aluminum clamps, centering rings, and O-ring options. Best for: compact installations where space is tight but a reliable KF25 bellows is needed. Caution: shorter length may require additional fittings for extended runs.
bmotiontech 8 ft KF25 Corrugated Bellows Hose Set
Key features: 8 ft stainless bellow hose, two KF25 aluminum wing-nut clamps, two centering rings, two FKM O-rings. Best for: users who want a complete, mid-length bundle with fast assembly. Caution: use included clamps correctly to ensure reliable leak-free connections over longer runs.
EastVAC KF25 Stainless Steel 304 Kit
Key features: Complete KF Kit with multiple sizes including 750 mm, 2 aluminum clamps, 2 KF centering rings, and 2 center rings. Best for: U.S. ultra-high vacuum system assemblies needing a ready-to-use kit with robust, corrosion-resistant core components. Caution: ensure the included parts match your specific KF size requirements to avoid mismatches.
bmotiontech 16″ KF25 Flexible Bellow Hose Set
Key features: 400 mm length, 16″ version with two KF25 clamps, two centering rings, two FKM O-rings. Best for: compact to mid-sized rack setups where a flexible bellows hose is desired. Caution: verify that 400 mm length aligns with your installation space and port spacing.
Buying Guide: Stainless Steel Vacuum Tubing And Bellows
What to consider when selecting stainless steel vacuum tubing and bellows:
- Size compatibility: Ensure KF25 or KF16 matches your flange type and NW components.
- Length needs: Longer hoses offer flexibility but require careful routing to prevent kinks.
- Material quality: 304 stainless steel provides corrosion resistance and durability for lab environments.
- Clamps and rings: Aluminum clamps and centering rings improve alignment and leak prevention; verify O-ring compatibility (FKM is common).
- Kit completeness: Some sets include all required parts; others require separate purchases for centering rings or clamps.
- Leak testing readiness: Laser-welded designs and proper assemblies simplify helium leak testing in US vacuum standards.
What configuration best fits a small lab?
Smaller labs benefit from compact lengths (around 20–30 inches) with reliable KF25 connections, such as the 20″ or 20–30″ bellows options. Choose a kit that includes clamps and centering rings to minimize missing parts.
What configuration is better for longer runs?
For longer runs, select longer bellows or multiple segments with robust clamps and support structures. Ensure routing minimizes bending stress and uses collars or guides to prevent movement and vibration.
How do I avoid leaks?
Use matched KF centering rings and aluminum clamps. Confirm all welds and seals are intact, and perform a helium leak check after assembly to verify system integrity.
Durability vs. flexibility trade-off
Bellows provide flexibility but may be more prone to bending stress if not properly supported. For rigid paths, consider straighter tubing with appropriate fittings and fewer bends.
Best practice checklist
- Match flange sizes precisely (KF25 vs KF16).
- Use included O-rings of the correct material (FKM commonly).
- Secure hoses with clamps at regular intervals to prevent movement.
- Plan routing to minimize sharp bends and kinks.
- Test connections with helium leak detection when applicable.
FAQ
- Q: What does KF-25 mean? A: KF-25 is a standard vacuum flange size for quick-seal vacuum systems, ensuring compatibility with NW/ KF components.
- Q: Are these hoses suitable for high-vacuum applications? A: They are designed for standard KF vacuum connections and can support typical lab vacuum environments; always verify your system’s UHV requirements.
- Q: Do all sets include clamps and centering rings? A: Not always; some sets include them, others require separate purchase. Check product details.
- Q: Can I mix brands for components like clamps and rings? A: Compatibility depends on flange tolerances. Use matching KF sizes and ensure proper sealing.
- Q: How should I store flexible bellows to prevent damage? A: Store in a cool, dry place, avoid tight loops, and keep away from sharp edges that could nick the metal.
- Q: Is stainless steel corrosion-resistant in humid environments? A: Yes, 304 stainless steel offers corrosion resistance suitable for many lab environments, but maintain cleanliness to prevent surface degradation.
