For electronics hobbyists and small-batch developers, a compact desktop pick and place machine can accelerate PCB prototyping and SMD assembly. This guide highlights five relevant options, explaining who each is best for, and what to watch out for. The featured machines vary in feeder counts, head configurations, and automation capabilities, so readers can choose based on component size, throughput needs, and budget. The summary below helps compare key choices at a glance.
| Product | Best For |
|---|---|
| Charmhigh CHMT36VA SMT Pick And Place | High precision desktop use with many feeders; suitable for experienced hobbyists. |
| 2026 SMT802B-F Pick And Place Machine | Small-footprint dual-head option with many feeders for SMT prototyping. |
| MKPARTY Fully Automatic SMT Desktop | High-speed prototype work with multiple cameras for accurate alignment. |
| SMT802A-S Automatic Low Price | Budget-friendly desktop LED production and entry-level SMT tasks. |
| Charmhigh CHMT48VB SMT Pick And Place | Dual-head desktop model with a larger feeder count for denser boards. |
Charmhigh CHMT36VA High Precision Desktop PNP
This model is described as a high-precision desktop SMT pick and place machine with a substantial feeder count implied by its product positioning. It is best for buyers who need precise placement on compact boards and value a desktop footprint. The information available emphasizes precision rather than automation features beyond basic SMT placement. A potential limitation is limited public detail about speed or automation beyond the precision note. Choose this if your priority is accuracy in a small workspace and you can manage with standard feeder configurations.
2026 SMT802B-F Pick And Place Machine
The SMT802B-F is presented as a mini desktop two-head pick and place machine with 58 feeders. This setup is well suited for small SMT assembly lines or serious hobbyists who need multiple components ready for rapid placement. The two heads enable simultaneous placing tasks, which can improve throughput in small-batch scenarios. A potential limitation is that detailed specifications such as placement speeds or supported component range are not disclosed in the summary.

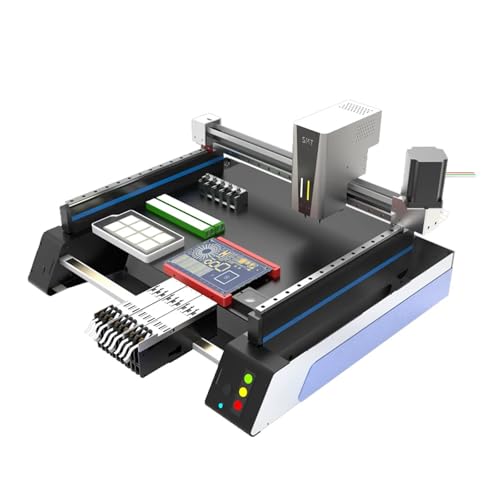

MKPARTY Fully Automatic Desktop SMT
MKPARTY advertises a triple-vision camera system with three high-speed cameras, including dual bottom cameras for fast shoot times. It supports recognition of various marks and offers a mark-free mode for precise alignment. The description highlights high-speed performance via an S-curve motion control and claims up to 3000 points per hour, alongside automatic head replacement and versatile feeders. This option is best for users needing speed and flexible feeder compatibility. A noted limitation is the lack of independent data on long-term reliability or warranty in the provided features.
SMT802A-S Automatic Low Price
This entry emphasizes low price for a small desktop SMT production machine. It is positioned for LED production and standard desktop SMT tasks. Given the lower price point, it is a practical entry-level choice for learners or hobbyists exploring basic SMT placement without demanding production throughput. A caveat is that the features provided are general; users should verify supported components, board sizes, and feeder compatibility before purchasing.
Charmhigh CHMT48VB Desktop PNP
The CHMT48VB is a dual-head desktop model with 48 feeders. It is best for users who need higher feeder capacity in a compact space and can benefit from dual heads for faster placement. The description reiterates high precision, which is appealing for tight tolerance PCB work. The limitation is sparse detail on exact speed or compatibility specifics beyond the high-precision claim.
CHM-550 Desktop SMT With Auto Nozzle Change
The CHM-550 offers a desktop 4-head configuration with 50 feeders and auto nozzle change for batch production. This setup is suitable for users needing multiple nozzles and a larger feeder pool to handle diverse components in small batches. A practical caution is that the listing notes “for PCB assemble,” which is broad and should prompt buyers to confirm supported component sizes and feeder types for their specific boards.
SMT802B LED PCB Board Making
This listing describes the SMT802B as a LED production line-friendly desktop pick and place machine with automatic features and chip mounting capabilities. It appears designed for compact LED and PCB assembly tasks. Best for buyers focusing on LED-related SMT work with a need for automated placement in a small footprint. A potential limitation is that the provided features do not disclose exact error rates, throughput at different board sizes, or extended support options.
Buying Guide
Key considerations when choosing a small desktop pick and place machine:
- Component variety and feeder count: How many feeders does the machine support, and can they accommodate the components you typically use?
- Number of heads and placement speed: Do you need single-head or dual-head operation, and what is the expected throughput for your boards?
- Vision and alignment: Is there a vision system to assist with mark recognition and accurate placement?
- Automation and ease of use: Are there automatic nozzle changes, bulk feeders, or tray handling features to improve workflow?
- Footprint and operating environment: Will the machine fit your workstation, and what power or ventilation does it require?
- Component size and board size support: What is the maximum component size and board dimension the machine can handle?
- Support and documentation: Availability of manuals, setup guides, and customer support can affect onboarding and troubleshooting.
Making a decision: Quick comparisons
- Best for precision: Charmhigh CHMT36VA and CHMT48VB emphasize high precision; choose them if accuracy on tight tolerances is critical.
- Best for speed and versatility: MKPARTY with triple cameras and up to 3000 points per hour suits fast prototyping and diverse components.
- Best on a budget: SMT802A-S offers a lower-price entry point for desktop SMT tasks.
- Best for multi-head density: CHM-550 and CHMT48VB provide multiple heads and larger feeder pools for denser boards.
FAQ
- What is a “desktop” pick and place machine best used for?
They are designed for compact spaces and small-batch or prototype PCB assembly, not large-scale production.
- Do these machines require extensive programming?
Most offer preset workflow options and feeder configurations, but some may need formal setup and calibration for optimal results.
- Can they handle LED components?
Several models describe links to LED production lines, indicating suitability for LED-related SMT tasks.
- Is dual-head always better?
Dual-head configurations can increase throughput but may require more space and more complex setup.
- What should I verify before buying?
Feeder compatibility, board size limits, placement speed, vision features, and after-sales support are essential checks.
- Are nozzles changeable automatically?
Some models advertise automatic nozzle changes, which can reduce manual handling and downtime in batch work.
