The following selection highlights dependable sight glass flow meters that provide a visible flow indicator for pipes and systems. Each unit features a clear window, an impeller when applicable, and compatibility for standard NPT or BSPT threads. This guide helps professionals compare construction, temperature and pressure ratings, and ease of use across common fluid media.
| Product | Brand | Notes |
|---|---|---|
| 1″ NPT Female 304 Stainless Window Sight Glass Flow Indicator With Impeller | WZHLCX | Clear 180° viewing window; 120°C max; 2.5 MPa max |
| 1/2″ NPT Stainless Steel 304 Sight Water Flow Indicator Red Impeller | WZHLCX | PTFE red impeller; high visibility; media: water/oil/gas/acid |
| Antrader 3/4″ NPT Female Window Sight Glass Flow Indicator With Impeller | Antrader | Clear sight line; easy monitoring; impeller included |
| Antrader 1/2″ NPT Female Window Sight Glass Flow Indicator With Impeller | Antrader | Compact DN15; easy to attach; visual flow |
| 1″ NPT Stainless Steel 304 Sight Water Flow Indicator Plastic Impeller | LOYALHEARTDY | Sturdy stainless body; clear window; plastic impeller |

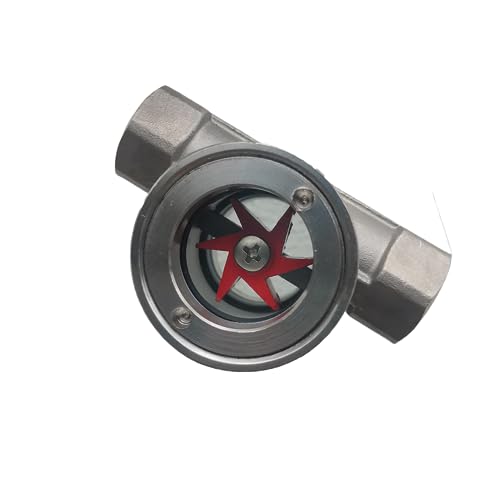

1″ NPT Female 304 Stainless Window Sight Glass Flow Indicator With Impeller
The 1″ NPT model from WZHLCX uses a stainless steel housing with a glass viewing window and an impeller option. It supports a maximum temperature of 120°C (248°F) and a maximum pressure of 2.5 MPa (362 psi). The design emphasizes stability in high-pressure or moderate-temperature lines and provides a 180° viewing window to simplify monitoring. Cleaning the glass surface is straightforward, maintaining clear visibility during routine inspections.
1/2″ NPT Stainless Steel 304 Sight Water Flow Indicator Red Impeller
This unit features a PTFE red impeller designed for high visibility in flow visualization. It is suitable for a range of media including water, oil, gas, acids, and alkaline fluids. The device operates up to 120°C and is sized at 1/2″ NPT with a 85 mm length. The 30 mm glass lens supports clear observation of flow, making visual checks quick and reliable for maintenance tasks and process monitoring.
Antrader 3/4 NPT Female Window Sight Glass Flow Indicator With Impeller
This Antrader model provides a clear line of sight to visualize the water flow inside pipelines. The 3/4″ NPT female thread ensures straightforward installation. An impeller is included to enhance flow visualization, and the unit is designed for easy monitoring and maintenance. It is simple to attach to existing piping, enabling immediate observation of flow without disassembly or specialized tools.
1/4″ 3/8″ 1/2″ 3/4″ 1″ 1-1/2″ 2″ BSPT Female 304 Stainless Window Sight Glass Flow Indicator With Impeller
This versatile range supports multiple BSPT sizes, featuring a PTFE red impeller for high visibility. It handles media such as water, oil, gas, acids, and alkaline or toxic liquids. Working temperature is rated at 120°C or lower, making it suitable for a broad set of plumbing and industrial applications where inline flow needs to be observed visually. The modular sizes allow matching to various pipeline diameters without changing the core design.
Antrader 1/2NPT Female Window Sight Glass Flow Indicator With Impeller
The 1/2″ NPT Antrader model focuses on straightforward installation and reliable monitoring. It includes an impeller to facilitate flow visualization and provides a clear line of sight to observe water movement within pipes. The setup is designed for quick attachment to standard piping, enabling immediate monitoring and routine maintenance checks while reducing downtime.
3/4NPT Female 304 Stainless Window Sight Glass Flow Indicator With Impeller
This 3/4″ NPT unit combines a PTFE impeller with a rugged stainless window housing. It provides a bright, red impeller for visibility across various media including water, oil, gas, and acids. Rated up to 120°C and 2.5 MPa, its compact footprint supports installation in tight spaces while maintaining a clear view of flow in the pipeline. It is suitable for process lines where inline observation is essential for operation and maintenance checks.
1″ NPT Stainless Steel 304 Sight Water Flow Indicator Plastic Impeller
From a robust stainless steel body, this unit features a plastic impeller for light-duty to moderate flow visualization. It supports a standard 1″ NPT connection and offers a clear sight window for monitoring water flow. Its design prioritizes reliability in normal operating conditions, with straightforward installation and maintenance. The combination of metal housing and plastic impeller aims to balance durability with cost-effectiveness for non-corrosive liquids.
Buying Guide
Key considerations for choosing a sight glass flow meter:
- Thread type and size: Ensure compatibility with your piping (NPT vs BSPT and the appropriate diameter).
- Material and temperature/pressure ratings: Stainless steel bodies provide durability; verify max temperature and pressure match your system.
- Impeller presence: Impellers improve visibility of real-time flow; PTFE impellers offer chemical compatibility and high visibility.
- Media compatibility: Determine whether the device is suitable for water, oil, gas, acids, or alkaline solutions.
- Maintenance and cleaning: Look for ergonomic window design and easily accessible seals for servicing.
- Installation considerations: Horizontal vs vertical mounting, space constraints, and accessibility for inspection.
Compare the five options by thread size, material, and visibility features to select the best fit for your application. For critical systems, prioritize units with higher pressure ratings and clear, wide viewing windows to minimize diagnostic time during inspections.
