Answering your search for compact, right angle hollow shaft gearboxes that fit tight installations and offer reliable torque transfer. This guide highlights top options suited for CNC machines, robotics, and DIY automation. Best for compact spaces, the hollow shaft models support streamlined routing of shafts or cables while preserving alignment. The selections below target buyers who need 1:1 gear ratios, CW/CW rotation, and stable performance in 40 HP class or equivalent setups. A quick summary table follows to help you compare key details at a glance.
| Product | Brand | Key Feature | Best For | Notes |
|---|---|---|---|---|
| 40 HP Right Angle Bevel Gearbox with 2 Keyed Shafts CW/CW 1:1 | Lamerto | 1:1 CW/CW, 40 HP, hollow input/output keys | Industrial drives, high-torque applications | Cast iron housing |
| 40 HP Right Angle Bevel Gearbox with Crosshole & 1″ Keyed Shaft | Generic | 1:1 CW/CW, 4-1/4″ bolt pattern | OEM replacements, adaptable assemblies | Crosshole option; 1″ key shaft |
| 90-Degree Commutator Hole Type Precision Steering Gearbox | YHYWJHY | Hollow shaft, multiple sizes (6/10/12mm) | Compact DIY projects, space-limited installs | High precision |
Note: The table above highlights representative options. The full article below expands on each product with details, suitability, and practical considerations to help you decide.
Lamerto 40 HP Right Angle Bevel Gearbox
Best for heavy-duty industrial setups that require a robust cast iron housing and dual keyed shafts. This unit is designed for 40 HP input with a 1:1 CW/CW output, making it suitable for direct shaft drives in conveyors or machine tools where torque stability matters. The 5-7/8″ x 6-1/4″ x 4-1/8″ footprint supports installations with limited space and bolt patterns at 4-1/4″ square with 3/8″ tapped holes. Input and output shafts both use 1″ x 2-1/4″ dimensions with 1/4″ keyways and 1:1 ratio. Best for heavy loads where misalignment must be minimized and serviceability is essential. A potential limitation is the heavier casting, which may require more mounting hardware and alignment during installation.
Best for: Industrial drives needing high torque, 1:1 ratio, CW/CW rotation, and a rugged housing. Not ideal if you require a lighter aluminum frame or smaller balance factors.
Generic 40 HP Right Angle Bevel Gearbox with Crosshole
This model mirrors the Lamerto unit’s 1:1 CW/CW 40 HP specification while adding a crosshole feature for alternative mounting or shaft alignment. Dimensions are the same 5-7/8″ x 6-1/4″ x 4-1/8″ with a 4-1/4″ square bolt pattern and 3/8″ tapped holes, offering familiarity for technicians swapping in representative components. Best for repair shops or OEMs seeking a compatible alternative with similar footprint. Limitation: lacks the same brand-specific warranty language or service notes that come with certain premium lines.
Best for: Replacements or upgrades where footprint and 1:1, CW/CW drive are crucial. Choose this if you want a near-identical mounting footprint to known designs without premium branding.

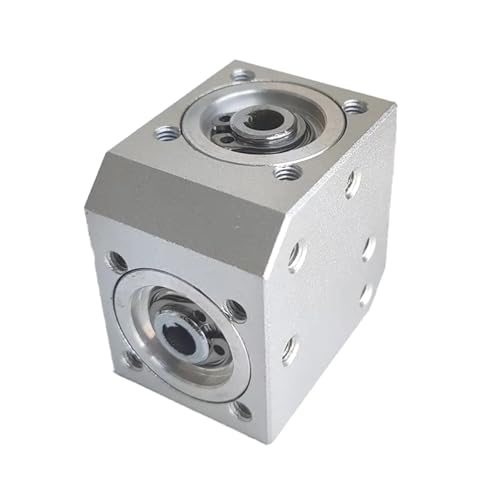

YHYWJHY 90-Degree Commutator Hollow Shaft Gearbox
Designed for precise small-footprint applications, this gearbox emphasizes hollow shaft versatility and precision. It offers a 90-degree right-angle solution with a hollow shaft and multiple available bore sizes (6mm, 10mm, 12mm). Its compact structure supports installations with limited space while maintaining stable operation under light to moderate loads. Best for educational, hobbyist, and compact automation tasks. Limitation: may not reach the torque levels of heavier, cast-iron industrial units.
Best for: Small robotics, CNC accessory drives, or hobby automation where wiring and cabling need a through-shaft option. Avoid for high-torque industrial applications.
uxcell 90 Degree Right Angle Bevel Gearbox 1:1
This aluminum-framed gearbox combines a 1:1 bevel gear design with a lightweight profile and a 10mm hollow input/output shaft in some variants. It emphasizes ease of handling and durability for DIY modules and simple mechanical systems. Best for educational kits, small-scale conveyors, and hobby projects where weight matters. Limitation: aluminum framing may offer less rigidity under high torque than a cast-iron alternative, so use within rated loads.
Best for: Lightweight automation projects and DIY modules. Choose this for ease of handling and low weight. Avoid if continuous high-torque operation is required.
ZORZA 1Pcs Right Angle Bevel Gearbox
Offerings from ZORZA provide 1:1 right-angle bevel gearboxes with 1.25 module and 20 teeth, including a 10mm inner shaft hole and 27mm outer diameter. The design includes two M5 screw holes for mounting and a compact total thickness of around 15mm. Best for precise gear-driven projects that require a small external footprint and straightforward assembly. Limitation: gear module and dimensions may require exact matching hardware for integration into existing setups.
Best for: Small-scale DIY projects or inline gear drives that need a compact, 1:1 right-angle solution. Avoid if you require higher module sizes or heavier-duty torque.
Buying Guide: Key Considerations for Right Angle Hollow Shaft Gearboxes
- Torque capacity vs. shaft size: Match horsepower and input speed to the gear ratio and hollow shaft diameter to prevent overload or excessive vibration.
- Mounting footprint: Compare bolt patterns and housing dimensions to ensure the unit fits your frame or machine bed.
- Material and housing: Cast iron offers rigidity and durability; aluminum reduces weight but may limit heavy-duty use.
- Shaft features: Hollow shafts enable through shafts for cabling or additional routing; confirm keyways and bore sizes align with your drive shafts.
- Rotation direction and ratio: Confirm CW/CW orientation and 1:1 vs. other ratios to meet your drive requirements.
- Maintenance access: Consider ease of lubrication, seal integrity, and serviceability for long-term use.
Practical Comparison Questions
- What is the maximum input speed compatible with a 1:1 right-angle gearbox in your setup?
- Do you need a through-shaft hollow option for wiring or tooling integration?
- Is mass and mounting space a critical constraint in your design?
- Do you require heavy-duty cast-iron durability or a lighter aluminum frame?
FAQs
- What does hollow shaft mean in these gearboxes? It means the shaft bore is open through the center, allowing through shafts or wiring to pass through the gearbox without additional adapters.
- Can I interchange crosshole variants with standard 1:1 units? Some models offer crosshole mounting as an option; verify bolt patterns and bore sizes for compatibility.
- Which gearbox is best for high-torque applications? Units with cast-iron housings and validated 40 HP inputs are typically better suited for higher torque in industrial environments.
- Are there notable maintenance differences between aluminum and cast-iron gearboxes? Cast-iron housings generally offer higher rigidity and wear resistance; aluminum is lighter but may require careful load considerations.
- Do these gearboxes require special mounting hardware? Some models use standard square bolt patterns; always verify the exact hole layout and hardware size before installation.
- Is 1:1 ratio always the best choice? Not necessarily; your system may need speed change or torque multiplication, so confirm the drive ratio for your application.
