Best Pressure Gauge With Diaphragm for Low-Pressure Measurements

Choosing a diaphragm-type low-pressure gauge helps ensure precise readings for air, water, natural gas, and other non-corrosive media. These gauges use a high-precision diaphragm capsule to translate pressure into a readable dial with stable zero and repeatable performance. This guide highlights five top options available on Amazon, covering a range of ranges, Mount types, and materials to suit household, industrial, or laboratory environments. Each product below includes key features, a quick image, and a direct link to purchase.

The following selections emphasize reliability, corrosion resistance for non-corrosive media, and easy installation. Each entry provides the product name, a brief synthesis of its features, and direct access to purchase for quick comparisons.

MEASUREMAN 0-5 Psi Diaphragm Gauge

Check Price on Amazon

This diaphragm-type capsule gauge from MEASUREMAN is designed for precise measurement of air, water, natural gas, or other media not corrosive to copper alloy parts. It features a 2-1/2″ dial, a 1/4″ NPT lower mount, and a pressure range of 0-5 psi. The adjustable mechanism allows fine tuning for consistent readings in low-pressure environments, making it suitable for lab benches, HVAC testing, or process monitoring. The robust construction aims to minimize drift during repeated measurements.

MEASUREMAN 0-15 In H2O Diaphragm Gauge

Check Price on Amazon

This MEASUREMAN model measures very low pressures expressed as inches of water (In H2O). With a 2-1/2″ dial and 1/4″ NPT lower mount, it’s ideal for precise monitoring in HVAC testing, microfluidics, or other applications where small pressure differentials matter. Its diaphragm type capsule provides stable readings across small ranges, and the media compatibility is suitable for air, water, and natural gas within non-corrosive limits.

MEASUREMAN 3 Psi Low Pressure Gauge

Check Price on Amazon

This variant from MEASUREMAN offers a higher upper limit of 3 psi while retaining a 2-1/2″ dial and 1/4″ NPT lower mount. It is designed for air, water, or natural gas measurements in low-pressure circuits where a slightly wider range improves visibility and reduces the need for frequent recalibration. The diaphragm capsule ensures repeatable performance and a compact footprint for tight panel setups.

CARBO Instruments 3 PSI Low Pressure Gauge

Check Price on Amazon

The CARBO Instruments unit combines a 2-1/2″ dial with a 1/4″ NPT lower mount and a 3 psi range. It boasts a chrome steel case and brass internals, with an adjustable zero screw for calibration. The gauge is designed for non-viscous media that are not corrosive to copper alloys, and it features a removable plastic lens for easier inspection. This makes it suitable for controlled laboratory tests or compact instrumentation panels where reliability is critical.

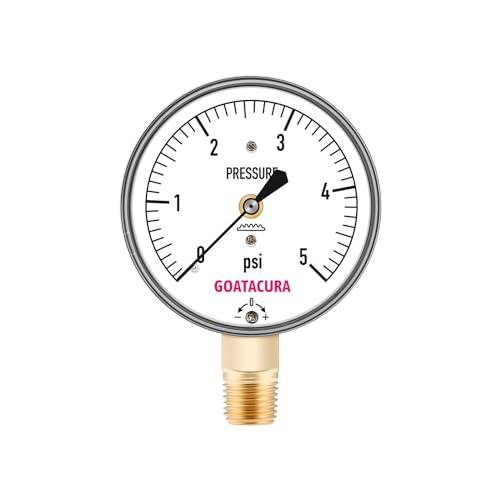

GOATACURA 0-5psi Diaphragm Gauge

Check Price on Amazon

The GOATACURA model emphasizes a durable black steel case and a beryllium diaphragm capsule for high accuracy. It features a 2-1/2″ dial, 1/4″ NPT lower mount, and suitability for measuring the pressure of liquids and gases that are not corrosive or oxidizing to brass components. The gauge is intended for water, oil, gas, and hydraulic systems with low-pressure requirements, offering stable readings and dependable performance in field installations.

MEANLIN MEASURE 0-5Psi Back Mount Gauge

Check Price on Amazon

This MEANLIN MEASURE unit has a 2-1/2″ dial with a 0-5 psi range, designed for back mounting. It includes a 1/4″ NPT connection and emphasizes a robust build with black steel, chrome-plated iron, and brass components. The back-mount installation is suitable for panel boards or equipment where rear access is convenient, providing stable readings for low-pressure tests or calibration routines.

Buying Guide: How To Choose A Diaphragm Low-Pressure Gauge

• Pressure range: Select a range that comfortably covers your expected minimum and maximum pressures. For many HVAC and lab tasks, 0-5 psi or 0-3 psi covers common fluctuations.
• Dial size and readability: A 2-1/2″ dial provides good visibility in panel layouts or bench tops. Consider lighting and viewing angle when mounting.
• Mounting style: Lower mount (1/4″ NPT) is common and easy to install. Back mount offers behind-panel placement, which can save space in compact enclosures.
• Media compatibility: Ensure the media is not corrosive to copper alloys if using copper internals. Diaphragm-type capsules typically handle air, water, and non-corrosive gases well.
• Materials and durability: Chrome steel, stainless steel cases, and protective lenses extend life in industrial environments. Consider UV, chemical, and impact exposure in your setting.
• Calibration and accuracy: Look for gauges with a known accuracy in the 1.5% range or better. Adjustable zero screws help maintain precision over time.
• Ease of maintenance: Removable lenses and accessible fittings simplify inspection and cleaning, especially in dusty or humid spaces.
• Installation considerations: Check thread standards and compatible adapters if retrofitting into existing manifolds or test rigs.

When evaluating options, balance accuracy, durability, and ease of installation. For routine testing and general purpose low-pressure monitoring, a gauge with 0-5 psi range and a 2-1/2″ dial provides clear readings and flexibility. If the application involves very small pressure differentials, models that measure inches of water (In H2O) can offer finer resolution, though they may require more precise mounting and calibration.

These diaphragm gauges are designed for non-corrosive media and non-viscous fluids, aligning with common use in HVAC, pneumatic testing, and laboratory setups. Always verify media compatibility with the gauge’s materials and seals before deployment in a live system.
