Looking for a pneumatic rotary indexing table that delivers reliable precision for milling and drilling tasks? This guide highlights five top options that balance rigidity, ease of use, and adjustable indexing. Best for workshop setups with vertical or horizontal milling needs, these choices suit hobbyist shops, small machine shops, and professionals who require accurate, repeatable angled cuts and holes. Below, compare key features and pick the table that aligns with your work style and space constraints.
| Product | Best For | Key Benefit |
|---|---|---|
| Mophorn Rotary Table 8Inch HV8 | Dual-position milling | 360° graduated indexing plate with quick dial reset |
| MachEl 4″/100 mm Tilting Table | Angled milling up to 90° | Tilting range with 1:36 worm gear for precise control |
| 4 Inch / 100mm Rotary Table – AD INTERNATIONAL | Compact setups | Wide 360° graduation and clear 10° per turn |
| LYDDFYU Through Hole Slip Ring Assembly | Specialized indexing/rotary table accessories | Compact design with reliable gold contacts |
| BUYOHLIC 3″ HV Rotary Table | Small-scale precision | Low profile with 36:1 gear ratio for 10° per handle turn |
Mophorn Rotary Table 8Inch HV8
The Mophorn HV8 table is built from HT200 cast steel, designed to withstand pressure and vibration in milling tasks. It supports both vertical and horizontal operation, enabling flexible workholding for a range of projects. Its 360° graduated indexing plate allows precise angle setting, and the reset dial offers quick, repeatable positioning. Best for shops needing a sturdy, all-purpose rotary table that works in multiple orientations.
Who this is for: small-to-medium workshops requiring reliable dual-position capability and strong dimensional stability. Why selected: the combination of vertical/horizontal design and a finely graduated scale provides precise control with straightforward operation. Limitation: the data emphasizes construction and graduations; verify compatibility with your machine’s chuck and mounting pattern before purchase.

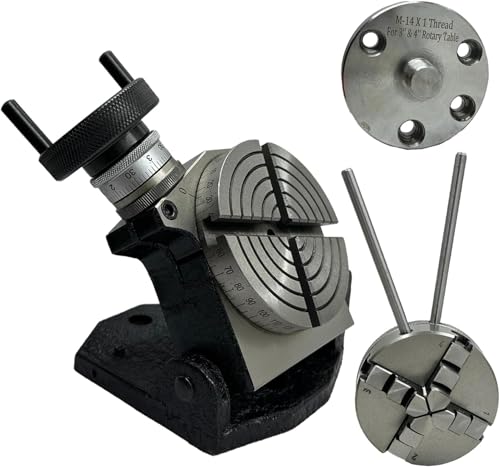

MachEl Precision 4″/100 Mm Tilting Rotary Table
The MachEl table tilts from 0° to 90°, allowing precise angled milling and boring. The 1:36 worm gear ratio means each handle turn advances the table by 10°, supporting controlled, repeatable adjustments for angled features. This is a strong choice when you frequently work at non-90° angles and need reliable tilt operation in a compact footprint.
Who this is for: users who regularly perform angled milling and need a clear tilt mechanism with solid repeatability. Why selected: tilting function expands capabilities beyond flat-table operations. Caution: ensure the chosen tilt range aligns with your milling tasks and clearance at the intended toolpath.
4 Inch / 100mm Rotary Table – AD INTERNATIONAL
This compact rotary table is designed for smaller milling machines, with a full 360° scale and a 1:36 worm gear ratio. The vertical height is about 50 mm, giving a low profile that fits into crowded or limited-use setups. The hand wheel is graduated in 10-minute increments and can be reset to zero for quick measurements.
Who this is for: hobbyists and light-duty shops needing a space-saving table without sacrificing precision. Why selected: its compact size and full-circle graduation make it a practical solution for small mills. Limitation: smaller diameter may limit maximum workpiece size and load capacity.
LYDDFYU Through Hole Slip Rings Kit
LYDDFYU offers a through-hole slip ring assembly with a 50 mm diameter and 18 circuits. While not a complete rotary table by itself, it integrates with indexing and pneumatic swivels, improving live power and signal transfer in rotating setups. It suits projects requiring multiple channels for sensors, coolant, or lighting without tangled wires.
Who this is for: operators needing reliable electrical continuity in rotating setups. Why selected: practical for expanding capabilities of a rotary system. Caution: this accessory requires compatible mounting and configuration with your existing table or turret.
RAHISH TOOLS HV6 Rotary Table Kit
The HV6 kit includes a steel dividing plates set and a tailstock, offering additional versatility for indexing and precise placements. This setup is suitable for users who want a comprehensive manual milling indexing package with extra alignment options. Best for: expanding capabilities in metalworking and precise workholding.
Who this is for: users seeking a ready-to-use indexing kit with helpful accessories. Why selected: the included tailstock and plates extend the tool’s versatility. Caution: verify that the table’s size and mounting pattern match your machine before buying.
BUYOHLIC 3″ HV Rotary Table With Round Vice
The BUYOHLIC table is compact with a 3-inch diameter and a low vertical height. It uses a 36:1 gear ratio, so a full handle rotation yields a 10° table movement for precise positioning. The included 80 mm round vice enhances workholding in small-scale milling tasks. Best for space-constrained setups needing accurate indexing.
Who this is for: crafters and small shops performing repetitive, precise hole patterns on small workpieces. Why selected: the combination of a small rotary table and integrated vice makes it a turnkey solution for compact milling tasks. Limitation: better suited for smaller parts due to its limited diameter and load capacity.
Buying Guide: Key Considerations For Pneumatic Rotary Indexing Tables
- Size And Capacity: Match the table diameter and load rating to your typical workpieces and spindle clearance. Larger tables handle bigger parts but require more bench space.
- Rotation And Indexing Precision: Look for a clearly graduated 360° scale and a fine minimum increment (e.g., 10 seconds or 5 minutes) for repeatable positioning.
- Tilting Range (If Applicable): For angled milling, ensure the tilt range meets your common work angles, and check locking stability at set angles.
- Gear Ratio: A common 1:36 ratio yields about 10° per turn; verify that this aligns with your intended workflow and toolpath strategies.
- Material And Build Quality: HT200 or steel bodies offer rigidity and vibration resistance, improving accuracy and longevity in busy shops.
- Accessories And Compatibility: Consider included accessories (vice, tailstock, plates) and ensure mounting compatibility with your mill.
- Maintenance And Calibration: Check for straightforward calibration procedures and easy accessibility to adjustment dials and wheels.
- Electrical Integration (If Using Pneumatic Features): For pneumatic components, confirm compatible air supply requirements and simple control options.
FAQ
- What is a pneumatic rotary indexing table? It is a precision workholding device that enables rotational positioning of a workpiece with indexed steps, often integrated with pneumatic controls for quick clamping and release in some systems.
- Which table size is best for a small milling machine? A compact 3″ to 4″ table suits small mills, offering adequate precision without overwhelming limited bench space.
- Why choose a tilting rotary table? Tilting adds angled milling capability, allowing holes or features to be machined at precise angles without repositioning the workpiece.
- What should I check before buying? Verify the gear ratio, 360° graduation, height and mounting options, and whether the included accessories meet your use case.
- Are these tables suitable for high-precision work? Yes, when properly calibrated and secured, they provide repeatable indexing essential for precision drilling and milling.
- Do these tables support vertical and horizontal milling? Many models support both orientations, but confirm the product specifications for your chosen unit.
