Answering the need for compact, reliable pneumatic control, these valve manifolds consolidate multiple solenoid valves onto a single base. They’re ideal for small to medium automation projects, including clamping, lifting, pushing, and cycle control. Best for shop floors and DIY automation setups where space is limited and quick installation matters. The following selections emphasize ease of installation, integrated design, and straightforward maintenance.
| Product | Stations | Voltage | Port Type | Best For |
|---|---|---|---|---|
| Baomain 10 Station | 10 | 24V DC | 1/4″ PT | High-capacity automated lines |
| Baomain 8 Station | 8 | 12V DC | 1/4″ PT | Compact multi-actuator control |
| Baomain 6 Station (3V210-08) | 6 | 24V DC | 1/4″ PT | 3-way NC for clamping |
| Baomain 6 Station (3V210-08-NC) | 6 | 12V DC | 1/4″ PT | Normally closed control |
| Baomain 4 Station | 4 | 110V AC | 1/4″ PT | Medium-duty automation |
Baomain 10 Station Solenoid Valve Manifold
This 10-station manifold integrates ten solenoid valves on a single base, designed for compact layouts needing many control points. It uses 24V DC and 1/4″ PT ports with included mufflers, enabling streamlined wiring and quiet operation in automated machinery.
Best for large multi-actuator systems where space savings and centralized control are top priorities. The product is chosen for its high station count, which makes it suitable for complex automation lines. A limitation is that higher station counts can require more space on the mounting surface compared to smaller manifolds.

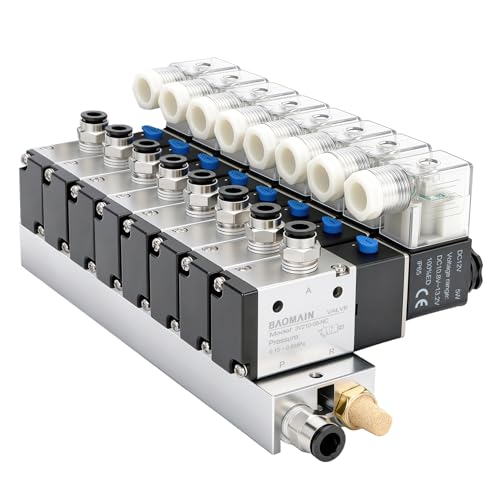

Baomain 8 Station Solenoid Valve Manifold
This 8-station integrated manifold features 8 solenoids on a single base and 12V DC operation. Quick-connect fittings with 8mm base ports and 6mm exhaust ports simplify installation, while the 3-way configuration supports control of multiple single-acting cylinders.
Best for medium-scale automation projects requiring more control points without sacrificing installation speed. Choose this if your system needs a compact, centralized manifold with straightforward wiring. Caution: Ensure compatible actuation requirements for 3-way NC configurations when used with specific cylinders.
Baomain 10 Station Solenoid Valve Manifold Overview
Note: This listing emphasizes a 10-station setup with 24V DC operation and 5-way, 2-position control. It is well-suited for projects that require synchronized actuation of many cylinders or tools. The included mufflers help reduce noise and improve workplace comfort.
Best for projects that demand precise timing across many channels. Limitations include the need for adequate electrical supply planning due to the number of active valves and a potential higher upfront cost for larger configurations.
Baomain 2 Station Solenoid Valve Manifold
This 2-station manifold focuses on essential control for double-acting cylinders with 12V DC operation and integrated mufflers. The compact base and quick-connect ports simplify small-scale automation and prototyping tasks.
Best for compact, starter projects or educational setups where minimal valve points are sufficient. Limitations include limited expandability and fewer control channels compared to higher-station models.
Baomain 4 Station Solenoid Valve Manifold
This 4-station manifold provides 110V AC operation with 5-way, 2-position control. It is designed for mid-range automation tasks that require multiple control points while maintaining straightforward wiring and a compact footprint.
Best for labs or workshops with higher voltage infrastructure needing reliable, mid-range multi-valve control. Caution: Ensure electrical safety practices for 110V AC equipment and compatible air flow requirements for the connected cylinders.
Buying Guide
Key considerations for selecting a pneumatic valve manifold:
- Number of stations: Determine how many actuators you need to control simultaneously. Higher-station models save space but may require more power and wiring planning.
- Voltage and power: Choose the voltage that matches your control electronics (12V, 24V, or 110V AC). Match with your power supply capacity to avoid under-powering valves.
- Port size and fittings: Most manifolds use 1/4″ ports with quick-connect fittings. Verify compatibility with your tubing and pneumatic components.
- Valve configuration: 2-position vs. 3-way vs. 3-way normally closed (NC) affects how the valve directs air and returns. NC configurations are useful for safety and default states.
- Mounting and footprint: Check base dimensions and mounting hole patterns to ensure the manifold fits your enclosure or workbench.
- Maintenance features: Included mufflers reduce noise and help with debris containment. Consider manifolds with modular components that are easy to service.
- Intended load and application: Higher-stress applications may require robust bases and corrosion-resistant materials. For educational or light-duty tasks, smaller configurations are often sufficient.
FAQ
- What is a pneumatic valve manifold?
Answer: It is a single base that houses multiple solenoid valves to control several pneumatic actuators from one centralized location. - What does 5-way, 2-position mean?
Answer: It refers to the internal valve design that can direct air to different ports (5-way) and has two functional states (2-position). - Are mufflers important for valve manifolds?
Answer: Yes, they dampen air exhaust noise and can help prevent contamination from exiting air lines. - Which voltage should I choose?
Answer: Pick the voltage that matches your control electronics and power supply; common options are 12V, 24V, and 110V AC. - How many stations should I need?
Answer: Base the number of stations on the number of actuators you must control concurrently; plan for future expansion when possible. - What is a normally closed (NC) configuration?
Answer: It means the valve blocks flow in its default state and opens when energized, which can be a safety feature in some applications.
