Looking for a reliable one-way hydraulic cylinder or a compatible hydraulic actuator setup? This guide highlights five solid options, explains who each is best for, and notes practical considerations. Whether you’re upgrading a loader, replacing a tilt cylinder, or adding a straightforward single-acting hydraulic solution, these selections cover common industrial and construction applications. The top picks emphasize ease of installation, compatibility, and durability for everyday projects.
| Product | Best For | Key Benefit |
|---|---|---|
| UFlex UC128 Version 1 Hydraulic Cylinder | Light to moderate load projects | Compact dimensions and straightforward single-acting design |
| Solarhome Hydraulic Tilt Cylinder | Skyjack and platform machinery | Compatibility with multiple SJ series lifts |
| Wen 2500 PSI Tie Rod Hydraulic Cylinder | General purpose actuation | Solid build with standard bore and stroke |
| Kingway Double Acting Hydraulic Cylinder 1.5″ Bore | loader arms and steering linkages | High-pressure capability with universal fittings |
| WEN Cross Tube Hydraulic Cylinder | Compact, space-conscious setups | Cross-tube design for tight installations |

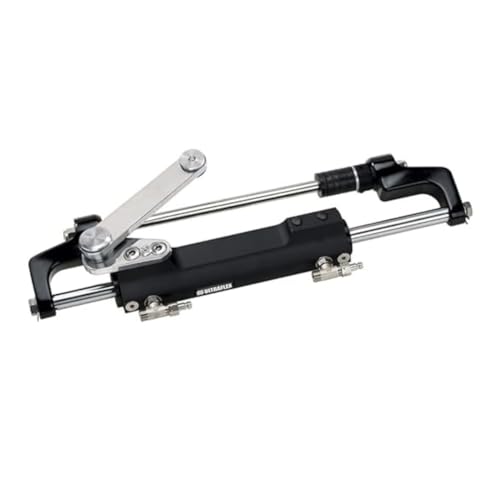

UFlex UC128 Version 1 Hydraulic Cylinder
The UFlex UC128 Version 1 hydraulic cylinder is a compact, single-acting unit suited for light to moderate load tasks. It features a standard profile that eases integration into existing systems and equipment. Best for projects where space is limited but a reliable hydraulic stroke is required. This model’s package dimensions and weight indicate a relatively portable unit for field service or workshop use.
Best for: small to mid-size automation tasks, agricultural attachments, and equipment where a straightforward one-way actuation is sufficient. The data suggests simple installation and a predictable stroke behavior, which helps when retrofitting older machines.
Limitation: Exact stroke length is not specified in the brief features provided here, so verify compatibility with your mounting and end-of-stroke requirements before ordering.
Solarhome Hydraulic Tilt Cylinder 112259 117648 117773A 120220
The Solarhome tilt cylinder is designed for platform and lift-related applications, with compatibility extended to multiple Skyjack SJ models. This single-acting tilt cylinder focus is on controlling lift tilt and stabilization, a common requirement in aerial work platforms and similar equipment. The listed part numbers indicate broad compatibility with Skyjack machines, making it a practical replacement for aging tilt components.
Best for: technicians and fleet maintenance teams working on compatible Skyjack platforms seeking a direct-fit tilt solution. It offers a straightforward upgrade path without extensive modification.
Limitation: Designed primarily for tilt function in compatible machines; if you need pure linear actuation for non-tilt roles, consider alternative single-acting cylinders.
Wryxia Double Acting Universal Hydraulic Cylinder
Although labeled as double-acting, this unit demonstrates robust construction with a chrome-plated piston rod and a high-pressure capacity, suitable for industrial machinery and equipment that require consistent force in both directions. Its versatile design supports a range of measurements and configurations, emphasizing durability and rust resistance.
Best for: applications needing strong, reliable actuation in both directions where a robust, chrome-plated rod helps resist corrosion. Choose this if you require a durable option for heavier machinery or frequent cycling.
Limitation: It is a double-acting cylinder, so ensure your system design aligns with bidirectional actuation requirements to avoid unused ports or mismatched plumbing.
WEN 2500 PSI Tie Rod Hydraulic Cylinder
The WEN tie rod cylinder is a versatile choice for many general-purpose actuation tasks, delivering up to 2500 PSI with a standard 3-inch bore and 12-inch stroke. It is well-suited for projects requiring straightforward, reliable linear motion, with compatibility to standard hydraulic hoses via a 1/2-inch NPT port. The tie-rod design supports stable mounting in many tools and machines.
Best for: general fabrication, shop projects, and light industrial equipment where a conventional single-acting hydraulic cylinder is sufficient. This model offers a predictable footprint and a broad compatibility profile.
Limitation: As a standard model, it might not fit specialty mounting or unusually long stroke requirements without adjustments.
Kingway Double Acting Hydraulic Cylinder 1.5″ Bore
The Kingway cylinder features a 1.5″ bore and 12″ stroke with SAE #6 ports and 3/4″ pin holes, combining a high-pressure capability with universal compatibility. It is positioned as a robust replacement option for loader arms, bucket tilt, or steering linkages where precise stroke and controlled movement matter. The elevated working pressure up to 3000 PSI supports demanding workloads.
Best for: heavy-duty loader arms or heavy equipment where tight control of movement and high force are necessary. The universal fittings simplify integration into existing hydraulic lines and attachments.
Limitation: The larger bore size and higher pressure rating may require careful mounting considerations and appropriate safety practices during installation and operation.
WEN Cross Tube Hydraulic Cylinder
The WEN cross-tube cylinder offers a compact option with a 1.5-inch bore and 8-inch stroke. Its cross-tube design is intended to fit tight spaces where a traditional barrel-style cylinder would be difficult to place. It supports a 3000 PSI working pressure, making it suitable for high-load actuation in a constrained footprint. The SAE-4 port enables straightforward hose connections.
Best for: installations with limited space where a standard cylinder would not fit. Choose this if you need a compact solution without sacrificing hydraulic strength.
Limitation: Shorter stroke means you may need more frequent actuation cycles or a longer extension setup to achieve the full travel required in some applications.
Buying Guide
Key purchase considerations when selecting a one-way or single-acting hydraulic cylinder:
- Application and load: Match bore size, stroke length, and operating pressure to the forces you expect. Smaller projects benefit from compact units; heavier loads require higher pressure and robust construction.
- Mounting and end fittings: Check pin hole sizes, mounting style, and port threading (NPT vs. SAE) to ensure compatibility with your hardware and hoses.
- Single-acting vs. double-acting: One-way cylinders are simpler and often sufficient for lifting or pushing tasks with return springs or gravity. Double-acting cylinders provide push and pull power but require more complex plumbing.
- Durability and materials: Chrome-plated rods resist rust and wear; welded bodies offer rugged construction for industrial environments.
- Space constraints: If installation space is tight, consider cross-tube or compact bore options that fit without sacrificing stroke.
- Compatibility with existing systems: Ensure that the selected cylinder matches your hydraulic hose size, ports, and control valves to avoid leakage or performance issues.
FAQ
- What is a one-way hydraulic cylinder used for?
- How do I choose the right bore size?
- What does stroke length affect?
- Are cross-tube cylinders suitable for tight spaces?
- What maintenance is needed for hydraulic cylinders?
- Should I pick a single-acting or double-acting cylinder?
A one-way hydraulic cylinder provides linear motion in one direction and typically returns via gravity, a spring, or an external return mechanism. It is common in lifting, pushing, or clamping tasks where reverse extension is not actively controlled.
Choose bore size based on the required force at a given pressure. Force equals pressure times piston area. A larger bore yields more force at the same pressure, but requires more space and may need higher-quality mounting.
Stroke length determines how far the cylinder can extend. Longer strokes cover more distance but require more mounting space and may impact cycle time in automation.
Yes, cross-tube designs are specifically intended for installations where space is limited, allowing the rod to extend within a narrow profile.
Regular inspection for leaks, clean ports, and proper mounting; check seals and rods for wear; replace worn components promptly to prevent failure.
Pick a single-acting cylinder for simpler, lighter-duty tasks where a return force is provided by gravity or an external mechanism. Choose a double-acting cylinder when bidirectional force is required for control and precision.
