Rapid, accurate vertical milling on a lathe setup helps shop floors improve precision without investing in full standalone machines. This guide highlights five practical vertical milling slides and rotary table add-ons that fit mini and full-size lathes. It’s ideal for hobbyists, makers, and small shops seeking precise, adaptable milling capabilities. Each entry includes who it’s best for, why it was selected, and a clear consideration to help you decide.
A.D. International New Lathe Milling Vertical Slide 100 x 125 mm
The A.D. International vertical milling slide features a tee-slotted 100 mm by 125 mm bed with three slots for secure clamping, making it ideal for small to medium lathe projects. Imperial dial graduations provide easy, precise adjustments, and the construction emphasizes stability for demanding use. Best for hobbyists or workshops needing a compact, stable milling option on a lathe. A limitation is that the table size is compact, which may constrain larger parts.

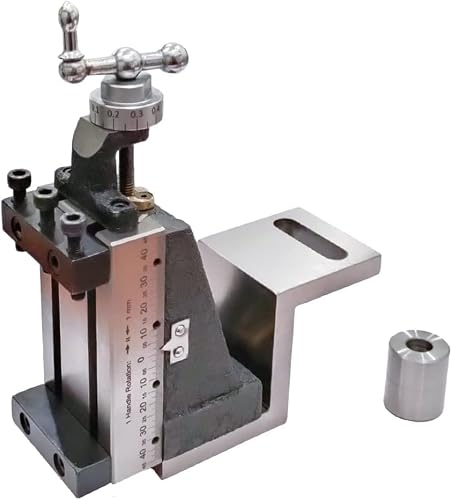

MachEl Mini Vertical Milling Slide With Z-Type Plate
This MachEl setup is designed for mini lathe machines. It includes a Z-Type Angle Plate for improved rigidity and alignment, plus smooth vertical movement for controlled milling, drilling, and shaping. Best for compact workshops needing precise vertical operations on small lathes. A caveat: compatibility with a broader range of lathes may vary; confirm mounting fit before purchase.
OMEX New Rotary Table Horizontal & Vertical 4″ / 100MM For Milling Machine
The OMEX rotary table offers both horizontal and vertical positioning with a 4-inch (100 mm) table suitable for small to mid-size milling tasks. It supports versatile setup and precise angular adjustments for multi-axis work. Best for users needing an affordable rotary table that fits compact milling setups. One limitation is that the product description contains procedural notes rather than standard specifications, so verify compatibility and dimensions before ordering.
6″ HV6 Horizontal and Vertical Rotary Table 4 Slot
This 6-inch (150 mm) rotary table is designed for both horizontal and vertical operation, featuring a 90:1 gear ratio, a center bore MT-2, and a 16 mm T-slot. Best for shops needing a larger rotary table with robust versatility. It may be heavier and bulkier than smaller slides, which could impact space and mounting on smaller machines.
New MachEl Lathe Milling Vertical Slide 100 x 125 mm
MachEl’s vertical slide for lathes presents a 125 mm by 100 mm table with three tees and imperial dial graduations for precise milling on a lathe. It also features 80 mm of table movement for extended reach across tasks. Best for users who need a reliable, mid-size milling extension on a lathe. A potential limitation is the compact travel of the table, which may require careful workpiece placement.
New Swivel 2 Way Lathe Milling Vertical Slide for MYFORD SUPER 7 ML7
This two-way swivel vertical slide revolutionizes milling by rotating on both the base and the table. The table measures 100 mm x 125 mm with three Tee slots for secure clamping. Best for owners of specific lathe models like MYFORD SUPER 7 ML7 needing flexible orientation. A note: verify swivel compatibility with your lathe’s mounting arrangement before purchase.
Buying Guide: Key Considerations for Vertical Milling Slides and Rotary Tables
- Table size and travel: Smaller tables fit compact lathes; larger dimensions support longer workpieces and wider milling tasks. Ensure the bed and movement fit your typical parts.
- Clamping and alignment: Tee slots, dial graduations, and a rigid plate or angle block improve precision. Look for clear scales and robust clamps.
- Mounting compatibility: Check whether the slide or rotary table requires specific mounting patterns or adapters for your lathe or milling setup.
- Movement quality: Smooth vertical movement reduces chatter and improves repeatability. Consider the material quality and how it handles vibration.
- Versatility: Rotary tables add angular cutting and indexing; vertical slides enable drilling, milling, and shaping on a lathe. Choose based on the tasks you perform most.
- Size and weight: Heavier units demand stronger mounting and may limit where you can install them. Balance work needs with available space.
- Budget and durability: Cast iron construction offers durability; ensure coatings resist wear in your environment. Factor in maintenance needs.
Frequently Asked Questions
- What is a vertical milling slide for a lathe?
It’s an add-on that provides a vertical milling capability atop a lathe, enabling milling, drilling, and shaping without a full milling machine.
- Who should buy a rotary table for a milling setup?
Shop owners needing precise angular cuts, indexing, and multi-axis work on small to mid-size parts.
- What should I verify before buying a vertical slide?
Compatibility with your lathe, bed size, Tee-slot pattern, and movement range are key checks.
- Are larger tables always better?
Not always; larger tables support bigger parts but demand more space and stronger mounting. Match size to typical tasks.
- Do these slides require special maintenance?
Regular lubrication, checking dial graduations, and ensuring clamps stay tight help maintain accuracy.
- Can I use these slides for drilling and shaping?
Yes, many slides are designed for milling, drilling, and shaping operations when mounted on a lathe or mill.
| Product | ||
|---|---|---|
| A.D. International New Lathe Milling Vertical Slide | 100 x 125 mm | Compact, precise milling with imperial dial graduations |
| MachEl Mini Vertical Milling Slide | Small lathe compatible, Z-Type plate | Improved rigidity and alignment for mini lathes |
| OMEX Rotary Table 4″ / 100MM | 4″ (100 mm) | Versatile horizontal and vertical positioning |
| HV6 Horizontal and Vertical Rotary Table | 6″ (150 mm) | Larger, robust indexing with MT-2 bore |
| MachEl New Lathe Milling Vertical Slide | 100 x 125 mm | Extended table movement and precise dial readings |
