Answering the search intent for buyers: these Nema 23 right-angle gearboxes are designed to convert rotary motion into precise, compact linear or angular movement with reduced speed and increased torque. They’re ideal for CNC hobbyists, small mills, laser engravers, and robotic projects using NEMA 23 stepper or servo motors. The list below highlights five models that balance torque, footprint, and ease of installation, with the best use cases and practical cautions for each.
Summary of chosen products
| Product | Best For | Key Benefit | Notes |
|---|---|---|---|
| XUNKUNER NMRV030 | Compact servo/stepper projects | IP55 protection, robust aluminum housing | 11 mm input, 14 mm output |
| GTPBAO Nema23 Planetary Gearbox (4:1–10:1) | General CNC engraving and milling | High efficiency, versatile ratios | Right-angle design |
| TYHZNQMPW RV030 | Budget-friendly right-angle reducers | Single/double shaft options | NRV030 family compatibility |
| OJJBAVKFQ RV030 | Double-shaft configurations | Flexible shafting options | 15:1 ratio available in kit |
| VREFAFKJIP RV030 | High-torque needs | Wide ratio variety | Double shaft option |

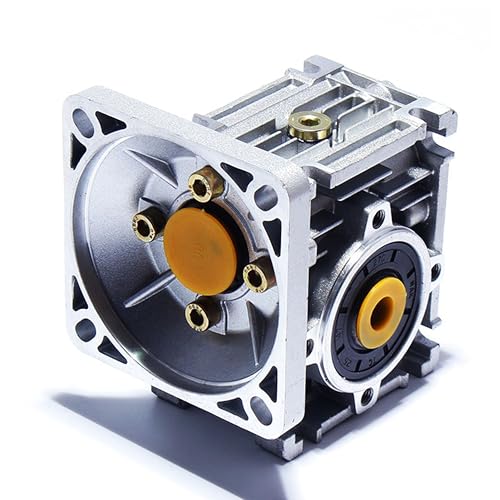

XUNKUNER NMRV030 Right Angle Gearbox
Model: NMRV030; input hole size: 11 mm (0.43″); output hole size: 14 mm (0.55″); input flange: NEMA23 (60×60). Material: aluminum alloy. Applications: servo motor or step motor. Color: silver. Features include ductile iron QT-400 worm gear, carbonized and heat-treated 20CR worm rod, and an ADC12 aluminum housing. The IP55 rating provides dust and moisture protection, paired with high torque, low noise, and stable operation.
Best for: hobbyists and small projects needing a compact, protected gearbox for NEMA23 motors. Choose this if you require IP55 sealing and a robust aluminum housing for easier mounting. Caution: check shaft dimensions and compatibility with your exact motor shaft size to avoid misfit.
GTPBAO Nema23 Planetary Gearbox (4:1–10:1)
Features include planetary gearing with ratios 4:1, 5:1, 6:1, and 10:1, delivering a 90-degree right-angle reduction for NEMA23 stepper motors. Designed for CNC engraving machines, mills, lathes, workbenches, and grinders, these gearboxes offer high transmission efficiency and a wide speed range with precise performance.
Best for: users needing a versatile ratio selection and reliable performance across multiple setups. Better for: applications where a planetary arrangement improves torque and rigidity. Caution: verify mounting pattern and shaft compatibility with your motor and drive electronics to ensure proper alignment.
TYHZNQMPW RV030 Right Angle Gear Reducer
Model: RV030 worm gearbox; 90-degree right angle, compatible with NEMA23 stepper motors. Kit variants include single/double shaft configurations, and it’s described as NRV030 family compatible. This option emphasizes modularity and straightforward integration in compact spaces.
Best for: projects that need flexible shafting options and straightforward installation. Choose this if you anticipate swapping shafts or mounting configurations. Caution: confirm the gearbox’s external dimensions fit your mounting area and any cable routing constraints.
GTPBAO Nema23 Planetary Gearbox (5:1–10:1)
Features similar to the 4:1–10:1 variant, focusing on 90-degree right-angle planetary reduction for NEMA23 motors. Emphasizes high transmission efficiency and a wide speed range with high precision, suitable for CNC engravers, mills, lathes, and workbenches.
Best for: readers needing high precision with a planetary arrangement in a compact form. Better for: installations where precise speed control and torque are critical. Caution: ensure the specific ratio you pick aligns with your motor torque limits and driver capability.
OJJBAVKFQ RV030 Right Angle Gear Reducer
Model: RV030 Right Angle Worm Gear Reducer for NEMA23. The listing highlights the double-shaft option and a 15:1 ratio variant as part of the kit family. Intended for industrial motor setups and compatibility with common YZHATDH RV030 kits.
Best for: users needing a longer reduction with a double shaft option for additional mounting versatility. Caution: verify shaft dimensions and the availability of 15:1 ratio if that exact configuration is required for your project.
VREFAFKJIP RV030 Gearbox (Double Shaft)
Model: RV030 Worm Gearbox with double shaft configuration; suitable for NEMA23 stepper motors. Marketed under the YZHATDH RV030 family with double shaft outputs, offering a broad ratio range and sturdiness for demanding tasks.
Best for: setups requiring two output shafts for complex motion or multiple linkages. Caution: double-shaft assemblies can require careful alignment; confirm compatibility with your mechanical design and drive electronics.
Buying Guide
What should you consider when choosing a Nema 23 right-angle gearbox?
- Ratio and torque: Higher gear ratios increase torque but reduce speed. Match the ratio to your motor torque and the desired output speed.
- Shaft and mounting: Verify the input/output shaft diameters, flange pattern, and overall dimensions to fit your motor and mounting space.
- Construction and protection: Aluminum housings are light and corrosion-resistant; IP ratings protect against dust/moisture in harsh environments.
- Single vs double shaft: Double shafts offer more mounting versatility but add alignment considerations.
- Efficiency and noise: Planetary configurations provide efficiency and rigidity; worm gear models can offer smooth, quiet operation but vary by design.
- Compatibility: Ensure the gearbox is compatible with your motor’s mounting standard (NEMA23) and your drive electronics (step/direction signals, current limits).
Practical considerations for installation
- Prepare precise mounting brackets and ensure flat, level mounting surfaces to avoid misalignment.
- Use appropriate fasteners and secure couplers to minimize backlash and play.
- Plan cable routing to prevent interference with moving parts and heat sources.
- Test with incremental loads to confirm torque and speed targets before full operation.
FAQ
- What is a NEMA 23 right-angle gearbox best used for?
It is best for compact projects needing increased torque and precise control for NEMA23 motors, such as CNC modules and small robotics.
- Do these gearboxes require special mounting hardware?
Yes, verify flange patterns, shaft diameters, and mounting holes to ensure a secure fit with your motor and frame.
- Is a higher gear ratio always better?
Not always. Higher ratios increase torque but reduce speed. Choose based on the target output speed and required torque.
- What is the difference between single-shaft and double-shaft gearboxes?
Single-shaft models have one output; double-shaft models provide two outputs for complex motion, but require careful alignment.
- Can I mix these gearboxes with any NEMA23 motor?
Compatibility depends on shaft size, mounting pattern, and the motor’s electrical specifications. Always verify motor-gearbox fit before purchasing.
