Micro precision linear actuators unlock exact positioning in compact packages for robotics, automation, biomedical devices, and educational kits. This guide highlights five high-accuracy options designed for space-constrained applications, with integrated drive and control features, force sensing, and power-efficient performance. Below, you’ll find a quick comparison and detailed product insights to help choose the right actuator for precision tasks, smooth motion, and reliable operation.
Summary of chosen products:
| Product | Brand | Stroke | Max Force | Key Feature |
|---|---|---|---|---|
| LA10-021D | INSPIRE-ROBOTS | 10 mm | 70 N | Integrated drive and control; built-in absolute position sensor |
| LASF16-024D | INSPIRE-ROBOTS | 16 mm | 105 N | Force sensor for real-time push-rod feedback |
| JQDML 0.4 Inch | JQDML | 10 mm | 188 N | IP54 protection; built-in limit switch |
| LAS16-021D | INSPIRE-ROBOTS | 16 mm | 105 N | Self-locking after power loss; compact design |
| LAS10-021D | INSPIRE-ROBOTS | 10 mm | 105 N | High precision; rapid installation |
INSPIRE-ROBOTS LA High Precision Micro Linear Servo Actuator, 10mm Stroke
The LA10-021D from INSPIRE-ROBOTS combines an 8V core-less brushed motor, precision planetary reducer, position sensor, and a screw mechanism into a compact unit. Its built-in absolute position sensor preserves position data through power loss, eliminating the need for a reference point. With D-LVTTL communication support, this actuator offers high-precision motion control with accuracy up to 0.02 mm and a 10 mm stroke. It delivers a full-load speed of 8 mm/s and no-load speed of 18 mm/s, handling forces up to 70 N. A self-locking function engages after power failure, providing safety with a 100 N self-locking force. The slim profile (62.5 mm by 13.2 mm, 23 g) and M3 threaded interface support quick installations in tight spaces, and the included debugging kit (USB cable, communication module, power supply) streamlines setup.
Ideal uses include robotics, biomedical instruments, and education kits where precise, repeatable motion is required in a compact footprint. The integrated design reduces assembly steps and potential alignment issues, while the built-in sensors enable robust closed-loop control and position retention without external references.
INSPIRE-ROBOTS LAS16 High Precision Micro Linear Servo Actuator, 16 mm Stroke
The LAS16-024D actuator from INSPIRE-ROBOTS emphasizes integrated force sensing for enhanced control. It blends an 8V core-less motor, planetary reducer, absolute position sensor, and a force sensor within a compact drive system, enabling real-time push-rod force detection and control. It provides repeat position accuracy of 0.03 mm, with a 16 mm stroke and a maximum force of 105 N. The speed range includes a full-load speed of 4 mm/s and no-load speed of 13 mm/s, delivering precise motion even in dynamic environments. Its dimensions (40.5 mm by 24.8 mm) and weight (27 g) make it suitable for constrained installations, while the self-locking feature activates after power loss with a 150 N hold. The device is designed for reliable operation in robotics, automation, and medical devices requiring accurate, repeatable actuation.
This actuator’s integrated kit supports quick deployment, including a USB actuator connection cable, a communication module, and a power supply unit, making it a strong choice for developers seeking a compact, feature-rich solution with force feedback for refined control.
JQDML 0.4 Inch Mini Linear Actuator, 12V, 10 mm Stroke
The JQDML 0.4″ stroke actuator provides a compact, robust option for small-scale automation. With a 12 V DC input, a 10 mm stroke, and a maximum load of 188 N (42.2 lbs), it supports positions up to 64.5 mm extended length. It features a built-in limit switch, ensuring safe stopping at any position and offering a self-locking function for stability when unpowered. Its IP54 protection makes it suitable for indoor and sheltered outdoor environments. The actuator is constructed from high-quality aluminum and includes a sturdy motor, making it a practical choice for robotics, home automation, and micro-positioning tasks where space is tight.
AWINLI Mini1.2″ Stroke Linear Actuator, 12V, 180N
The SZAWINLI AWINLI Mini actuator offers a 30 mm stroke with a 12 V input, delivering up to 180 N (~40.5 lbs) of force. It features IP54 protection, low noise, and an operational temperature range suitable for varied environments. With a compact form factor and protective end caps, it suits cabinet openings, window actuations, robotics, and small automation tasks. Its design prioritizes stability and reliable operation, including short- and overload-protected electrical features and a built-in limit switch to ensure precise end-position control. A practical option for compact, reliable push-pull applications in domestic and commercial settings.
ACTOCAT Mini Linear Actuator 1.2″ Stroke, 22N Mounting Brackets
The ActoCat actuator provides a 30 mm stroke with a 12 V DC input, offering a load capacity of 100 N (22 lb). It arrives with mounting brackets for easy installation and supports various applications including window openers, robotics, and home automation. The unit features straightforward operation: apply voltage to extend, reverse polarity to retract. Its lightweight aluminum construction and integrated mounting options make it a practical choice for compact projects requiring predictable linear motion.

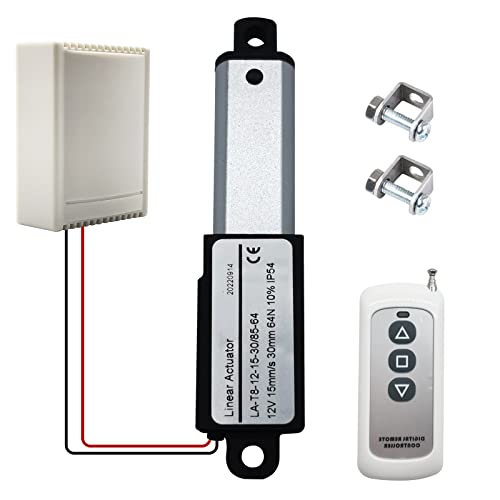

Mini Micro Linear Actuator With Remote Control, 12V
The USLICCX Mini Micro Actuator pairs a 1.2″ stroke with a 12 V motor and a remote controller kit. It supports a maximum load of 64 N (14.4 lb) and a travel speed of 0.59″/s (15 mm/s). The actuator uses an aluminum inner tube and shell, delivering a robust, lightweight design suitable for DIY projects and smart home tasks. The remote controller enables wireless operation within a wide range, enabling easy control of actuated devices such as greenhouse windows, robotic arms, or cabinet mechanisms. Its compact size makes it particularly useful for hobbyist and small-scale automation projects where quick, wireless access matters.
Buying Guide: Key Purchase Considerations
- Stroke length and travel speed: Choose a stroke that matches your mechanical travel requirement and ensure the speed aligns with application needs for timely positioning.
- Load and force characteristics: Verify peak and continuous force ratings to prevent overloading; consider self-locking capability for power-failure scenarios.
- Integrated vs. separate drive: Integrated actuation solutions simplify assembly and control, while separate systems offer modular customization and easier upgrades.
- Feedback and control: Absolute position sensors, closed-loop control, and LVTTL/D-LVTTL communications boost precision, repeatability, and reliability in live environments.
- Physical footprint: For space-constrained applications, assess length, width, weight, and mounting interfaces (e.g., M3 threads) to ensure compatibility with existing hardware.
- Protection and environmental suitability: IP ratings, operating temperature ranges, and material construction influence performance in varied environments (indoor, outdoor, or rugged settings).
- Power and interfaces: Check voltage requirements, power consumption, and available communication modules or cables needed for integration with controllers and automation stacks.
- Cost of ownership: Consider maintenance needs, sensor performance, and warranty terms when evaluating long-term viability in production or educational settings.
When selecting a micro precision actuator, balance precision and repeatability with size, weight, and integration needs. Actuators with built-in absolute position sensors and force sensing provide richer feedback for closed-loop control, while compact designs enable deployment in tight enclosures such as robotic grippers, medical instruments, and micro-assembly devices. Multiple products in this list offer quick installation, self-locking features, and complete debugging kits, reducing development time and ensuring dependable performance across varied applications.
