JIC quick connect fittings are essential for fast, tool-free connections in hydraulic lines. This guide highlights five top choices ideal for skid steers, loaders, and heavy equipment. Each option focuses on ISO 16028 flat-face design, corrosion resistance, and reliable sealing. This overview helps buyers choose based on body size, thread type, and installation angles. The top picks are best for professionals seeking robust, easy-to-use couplers that minimize contamination and downtime.
Summary of chosen products:
| Product | Body Size / Thread | Key Benefit | Best For |
|---|---|---|---|
| Racewill 1/2″ Flat Face ISO 16028 (1/2″ #8 JIC Bulkhead) | 1/2″ ISO 16028, #8 JIC bulkhead | Flat-face, dust-cap design; high-pressure | Skid steers and loaders needing clean hydraulic lines |
| Metlead 90 Degree Elbow 1/2″ Flat Face | 1/2″ body, 3/8″ JIC Male | 90-degree elbow for tight spaces | Flexible routing in compact layouts |
| LOSTAR 90 Degree Flat Face 1/2″ Body | 1/2″ Body, 3/8″ JIC Male | Secure, dust-protected with 90° angle | Mounted manifolds and tight installations |
| Racewill 1/2″ Flat Face ISO 16028 (5/8″ #10 JIC Bulkhead) | 1/2″ ISO 16028, #10 JIC bulkhead | Flat-face design with robust bulkhead | Heavy-duty applications requiring larger JIC |
| Summit Hydraulics 90 Degree Flat Face 3/8″ JIC Male | 1/2″ ISO body; 3/8″ JIC Male | Compact 90° option with ISO 16028 | Space-constrained skid steer setups |

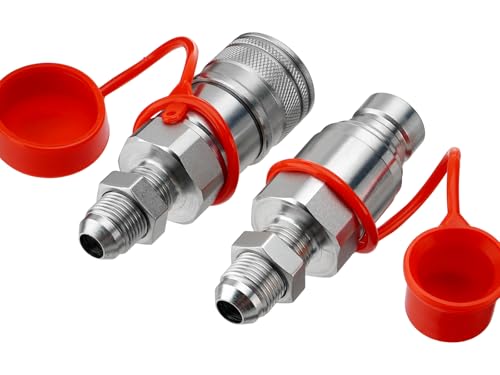

Racewill 1/2″ Flat Face ISO 16028 Hydraulic Quick Connect Couplers
Details: 1/2″ body with 1/2″ (#8) JIC bulkhead thread; compatible with ISO 16028 flat face couplers. Features high-strength steel with chrome plating and a one-hand push-to-connect sleeve. Pressure rating up to 5076 PSI; max flow around 23 GPM. Dust-cap included to keep connections clean.
Best for: Fleet managers and operators who need a rugged, quick-connecting solution for skid steers and loaders that frequently connect and disconnect hydraulic lines. The flat-face design helps prevent system contamination during disconnection.
Why selected: It combines durability, ISO compatibility, and a user-friendly pull-and-push action for fast servicing in busy work environments.
Caution: Ensure bulkhead threads match the mating hose assembly; mismatch may lead to leaks or incomplete connections.
Metlead 90 Degree Elbow 1/2″ Flat Face Quick Connect
Details: 1/2″ body size with 3/8″ JIC male thread; rated around 5076 PSI with a nominal flow of 12 GPM. The 90-degree elbow design adds installation flexibility, allowing easier routing in tight hydraulic systems. Push-connect locking sleeve reduces accidental disconnections and minimizes air ingress during disconnection.
Best for: Installations where space constraints call for a bend in the line without sacrificing quick-connect reliability.
Why selected: The elbow design enables flexible layouts while preserving a secure, clean connection.
Caution: The 3/8″ JIC male thread may require compatible female fittings; verify thread compatibility before pairing with hoses.
LOSTAR 90 Degree Flat Face Hydraulic Quick Connect Set
Details: ISO 16028 standard with 1/2″ body and 3/8″ JIC male port thread. Flow rate about 12 GPM. Features a red protective cover and a transparent screw cap for dust prevention. The sleeve locking mechanism secures the connection and reduces accidental disconnections during movement or dragging of hoses.
Best for: Installations requiring a reliable, dust-protected 90-degree connection with straightforward maintenance.
Why selected: Provides robust sealing and protection against contaminants, which is valuable in outdoor or dirty work sites.
Caution: Ensure proper alignment during connection to maximize the sealing effectiveness of the 37° JIC interface.
Racewill 1/2″ Flat Face ISO 16028 (5/8″ JIC Bulkhead)
Details: 1/2″ body with 5/8″ (#10) JIC bulkhead thread. Interchangeable with ISO 16028 flat face couplers. Rated at 5076 PSI with a maximum flow of 23 GPM. Includes a dust cap to protect the connection interface.
Best for: Users needing a bulkhead option with a larger JIC bore for higher flow in demanding hydraulic lines.
Why selected: Combines ISO compatibility, strong pressure rating, and inline compatibility with standard flat-face fittings.
Caution: Check bulkhead mounting space to confirm clearance for installation in tight equipment compartments.
Summit Hydraulics 90 Degree Flat Face 3/8″ JIC Male
Details: ISO body size 1/2″; port thread 3/8″ JIC male; nominal flow rate 12 GPM. This 90-degree configuration is designed to fit tight spaces while preserving a flat-face, contamination-minimizing connection.
Best for: Projects where a compact, angled quick-connect is needed without sacrificing the clean, flat-face interface.
Why selected: Offers a balanced combination of space-saving design and reliable sealing for demanding hydraulic runs.
Caution: Verify that the mating female fittings match the 3/8″ JIC thread to avoid cross-threading during assembly.
Buying Guide
- What is ISO 16028 and why it matters: Flat-face ISO 16028 couplers minimize fluid leakage and reduce the risk of contamination when disconnecting under pressure.
- Choosing body size and thread: For most skid steers and loaders, 1/2″ body with 3/8″ JIC or 1/2″ JIC bulkhead threads are common. Verify your hose and manifold compatibility.
- Elbow vs. straight: Elbow (90-degree) fittings improve routing in tight spaces; straight variants maximize flow and ease of assembly in open layouts.
- Dust and contamination protection: Look for protective caps or dust covers and sealing features that prevent dirt ingress during maintenance.
- Material and durability: Heavy-duty steel with chrome plating is typical for high-pressure applications; confirm bore size and flow rates align with system requirements.
- Maintenance considerations: Regularly inspect sleeve locking mechanisms and bulkhead seals to prevent leaks and ensure consistent performance.
FAQ
- What does JIC stand for? – Joint Industry Committee; in hydraulic fittings, it refers to a 37-degree flare thread standard used with compatible fittings.
- Are flat-face fittings better for cleanliness? – Yes, flat-face designs reduce chances of fluid trapped in recessed areas, helping prevent dirt entry during disconnection.
- Can I mix ISO 16028 with non-ISO fittings? – Mixing is possible only if the thread and face design are compatible; otherwise leaks may occur.
- What should I check before buying? – Thread size, bulkhead vs. hose-end, required flow rate, and installation space are key factors.
- Do elbows complicate sealing? – Elbows can introduce additional seal areas; ensure proper alignment and torque on all connections to maintain a reliable seal.
- Which option is best for space-constrained installations? – The 90-degree flat-face variants are typically better for tight spaces while maintaining solid sealing.
