Direct answer: for reliable in-line sight glass monitoring, choose models that match your pipe size, clamp type, and operating conditions. This guide highlights five top in-line sight glass options, focusing on suitability for sanitary or industrial fluid paths, ease of inspection, and material compatibility. Best for: small-to-mid scale systems needing 1.5″ to 4″ tri-clamp connections, with stainless steel bodies and high-temperature tolerance. The table below summarizes key specs to help quick comparisons.
| Product | Size / Clamp | Material | Max Pressure | Max Temperature | Notable |
|---|---|---|---|---|---|
| DERNORD Tri Clamp In-Line Sight Glass (1.5″ Tri Clamp) | 1.5″ Tri Clamp | SUS316 | 120 PSI | 300 °F | Includes clamp end; Flow OD 38 mm |
| DERNORD In-Line Sight Glass with Clamp End (2″ Tri Clamp) | 2″ Tri Clamp | SUS316 | 120 PSI | 300 °F | Clamp end design, Flow OD 51 mm |
| DERNORD In-Line Sight Glass with Clamp End (4″ Tri Clamp) | 4″ Tri Clamp | SUS316 | 120 PSI | 300 °F | Largest flow path, Flow OD 102 mm |
| JMCOLMT In-Line Sight Glass (2″ Tri Clamp) | 2″ Tri Clamp | Stainless Steel | — | — | Solid fit for sanitary lines |
| JMCOLMT In-Line Sight Glass (1.5″ Tri Clamp) | 1.5″ Tri Clamp | Stainless Steel | — | — | Compact option for mid-size paths |
DERNORD 1.5-Inch In-Line Sight Glass
Product: DERNORD Tri Clamp In-Line Sight Glass, SUS316, 1.5″ tri-clamp capable, straight sight path. Flow pipe OD 38 mm; ferrule OD 50.5 mm. Max pressure 120 PSI, max temperature 300 °F. Best for small sanitary loops or compact process lines. Choose this if you need sanitary-grade stainless steel with a clamp-end configuration for quick assembly. Limitation: clamp sizing requires compatible Tri-Clamp fittings.
DERNORD 2-Inch In-Line Sight Glass with Clamp End
Product: DERNORD In-Line Sight Glass with Clamp End, Flow Sanitary Straight Sight Glass, SUS316. 2″ Tri Clamp, Flow OD 51 mm, Ferrule OD 64 mm. Max 120 PSI, 300 °F. Best for mid-size sanitary lines needing robust visibility. Choose this if you need a larger bore than 1.5″ but still want clamp-end ease. Caution: ensure exact clamp compatibility with existing fittings.

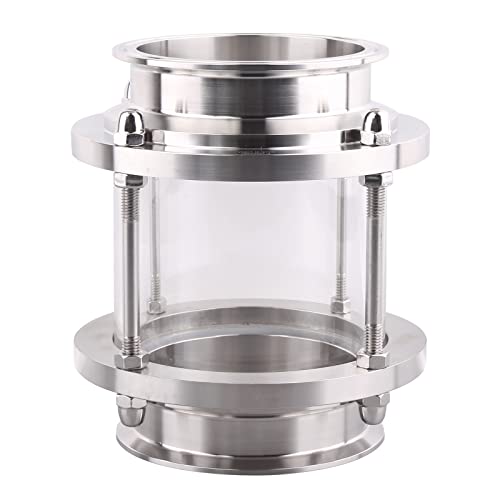

DERNORD 4-Inch In-Line Sight Glass
Product: DERNORD In-Line Sight Glass with Clamp End, 4″ Tri Clamp, Flow Sanitary Straight Sight Glass, SUS316. Flow OD 102 mm; Ferrule OD 119 mm. Max 120 PSI, 300 °F. Best for large-diameter lines requiring clear visual monitoring of flow. Better for higher-volume systems; limiting factor is clamp availability for 4″ connections.
JMCOLMT 2-Inch In-Line Sight Glass
Product: JMCOLMT In-Line Sight Glass 2″ Tri Clamp Flow Sanitary Straight Sight Glass, Flow OD 50.5 mm. Stainless steel Tri Clamp type. Best for balanced size and visibility in sanitary lines. Choose this if you need a reliable 2″ option from a dedicated supplier. Limitation: data does not specify pressure or temperature limits in the listing.
JMCOLMT 1.5-Inch In-Line Sight Glass
Product: JMCOLMT In-Line Sight Glass 1.5″ Tri Clamp Flow Sanitary Straight Sight Glass, Flow OD 38 mm. Stainless Steel Tri Clamp Type. Best for compact lines where visibility is essential and space is limited. Choose this if you need a smaller bore with sanitary-grade construction. Limitation: exact temperature and pressure specs are not listed in the brief features.
Inline Sight Glass Stainless Steel 304
Product: Inline Sight Glass Stainless Steel 304, various sizes, USAlab. Features mention Viton seals for gasket design. Best for versatile applications where gasket compatibility and temperature range matter. Choose this if gasket performance and compatibility with Viton seals are priorities. Limitation: specific clamp sizes and flow path dimensions vary by size and are not fully listed in the brief features.
Buying Guide: Key Purchase Considerations
What size do you need? Match the Tri Clamp size to your piping: 1.0″, 1.5″, 2″, or 4″ options are common. Consider flow path diameter (OD) and ferrule size to ensure a proper seal and easy inspection.
What material and finish matter? SUS316 and 304 stainless steel offer corrosion resistance and durability for sanitary and industrial uses. Stainless bodies with clamp ends simplify installation and cleaning.
What are the operating limits? Check max pressure and max temperature ratings relevant to your process. A higher PSI and temperature rating provides broader application scope, especially for hot fluids or gases.
Is gasket compatibility important? Some models emphasize Viton seals for chemical resistance; confirm gasket type aligns with the fluids used in your system.
What are the installation considerations? Clamp-end sight glasses enable quick removal and maintenance. Ensure your existing tri-clamp fittings are compatible in size and style.
Buying Guide: Quick Comparison by Use Case
- Sanitary, small-diameter, frequent inspections: 1.5″ or 1″ models with clamp ends.
- Mid-range capacity, robust visibility: 2″ models offer a balance of size and visibility.
- High-volume or large-diameter lines: 4″ models provide the widest flow path but require compatible fittings.
- Materials and seals: prioritize SUS316 or 304 stainless steel with gasket options suitable for the fluids.
FAQ
- What is an in-line sight glass used for? It allows visual monitoring of fluid flow and clarity without stopping the process.
- Which size should I choose for a 2-inch pipe? A 2-inch tri-clamp sight glass is typically the best fit for a 2″ pipe with compatible clamps.
- Are these suitable for high-temperature fluids? Many models list max temperatures around 300 °F; verify your fluid’s temperature and system pressure.
- Do all sight glasses come with gaskets? Some listings mention gaskets or seals; check the product details for gasket type and compatibility.
- Can I install these without specialized tools? Clamp-end designs are intended for straightforward installation with standard tri-clamp fittings.
- What maintenance is required? Regular cleaning and inspection of seals and the glass surface help maintain visibility and prevent leaks.
