Answering the search intent: these hydraulic rotary flow dividers split or combine pump flow to balance pressure and speed across multiple circuits. They are ideal for systems needing synchronized cylinders, motors, or multiple tools without sacrificing performance. This guide highlights five reliable options and explains who benefits most from each choice. Whether you maintain a closed-loop industrial setup or a portable hydraulic kit, selecting the right divider improves efficiency and control.
Overview table: Top picks at a glance
| Product | Best For | Key Feature |
|---|---|---|
| Chief Rotary Flow Dividers | Small to medium projects needing steady per-section flow | 0.86–3.44 GPM per section |
| Haldex Concentric Rotary Flow Divider | High-precision coordination across different loads | 3.5–7 GPM per section, up to 3500–3000 PSI |
| Hydraulic Pump Flow Divider (Primary Mover) | General purpose flow division | 2–4 GPM, SAE #6 ports |
| Haldex Concentric Rotary Flow Dividers Valve (2 Sections) | Two-section, compact synchronization | 1.2–2.5 GPM per section |
| Buyers Products Priority Divider | Priority-driven circuits with adjustable output | 0–30 GPM capacity, adjustable GPM |
Chief Rotary Flow Dividers 0.265 CID Per Section
Best for compact installations needing predictable flow split per section. With a 0.265 CID per section and a flow range of .86–3.44 GPM per section, this divider supports precise balancing on smaller hydraulic networks. The minimum inlet flow is 1.72 GPM and the maximum inlet flow is 6.88 GPM, making it suitable for systems where circulating flow must stay within a narrow band.
Who it’s for: engineers and technicians building compact machinery or retrofit projects where per-section flow consistency is crucial. Why selected: its smaller displacement enables tight control without demanding high-pressure demands. Caution: ensure the overall system can supply the minimum inlet flow across all branches to maintain even distribution.

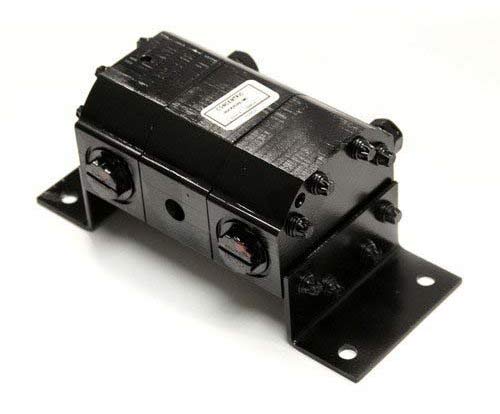

Haldex Concentric Rotary Flow Divider Valve
Best for multi-circuit synchronization where varied loads demand proportional flow. This valve supports 2-section hydraulic synchronization with a 0.388 CID displacement and a 3.5–7 GPM per section range. It is designed to handle inlet pressures up to 3000 PSI and outlet pressures up to 3500 PSI, enabling robust performance in heavy-duty systems.
Who it’s for: systems requiring high-precision coordination between cylinders or motors. Why selected: adjustable flow per section helps match differing circuit resistances. Caution: ensure compatibility with your pump type and port sizing (SAE 10 ports noted in the spec).
Hydraulic Pump Flow Divider
Best for general purpose flow division in mid-range systems. This divider/combiner offers a 2–4 GPM capability and a 3000 PSI rating with SAE #6 port sizing. The data includes details on dimensions and material, indicating suitability for standard iron-bodied hydraulic assemblies.
Who it’s for: technicians upgrading or repairing standard hydraulic lines where predictable 50/50 division is desired. Why selected: straightforward configuration and common port sizing reduce integration effort. Caution: verify that 2–4 GPM aligns with your total system flow and that the 3000 PSI limit matches your operating range.
Concentric Rotary Flow Dividers Valve 1300634
Best suited for two-section division with a compact footprint. This divider handles 0.129 CID per section and a flow of 1.2–2.5 GPM per section, with 3000/3500 PSI inlet/outlet and up to 4500 RPM. It uses SAE #8 ports for a tighter connection in smaller systems.
Who it’s for: projects needing precise two-channel distribution within limited space. Why selected: small displacement supports fine-grained balancing in dense layouts. Caution: monitor RPM and pressure limits to avoid surpassing rated performance in rapid cycling tasks.
Buyers Products Priority Flow Divider
Best for applications requiring adjustable priority output with simultaneous secondary use. This side-ported, 0–30 GPM capacity divider maintains consistent primary circuit flow via an adjustable GPM control. The design supports dual applications by diverting excess flow to a secondary circuit or back to the tank as needed.
Who it’s for: operators needing reliable priority control in multi-function presses or tool setups. Why selected: lockable adjustment knob helps set and maintain the primary circuit flow across changing loads. Caution: ensure the primary circuit does not demand more than the available pump flow at higher RPMs for stable operation.
Fluidhaus Flow Divider Combiner Valve
Best for flexible 50:50 division and combination in a single unit. This 11.8 GPM (45 LPM) valve uses SAE -8 ORB ports (1/2 inch) and supports a 4500 PSI rating. The design allows flow from V to C1/C2 and back, enabling bidirectional control of actuator speed independent of pressure.
Who it’s for: installers needing a robust, versatile divider/combiner for higher throughput and bidirectional control. Why selected: clarity of 50:50 ratio independent of pressure simplifies design. Caution: verify port thread compatibility with existing fittings to avoid leaks.
Buying Guide: How To Choose The Right Hydraulic Rotary Flow Divider
- Flow range and per-section capacity: Match the divider’s per-section GPM to your circuit requirements. If you have multiple actuators with different needs, a model with adjustable per-section flow helps maintain balance.
- Port sizing and inlet pressure: Confirm port sizes (SAE or NPT) match your system, and ensure the unit’s maximum inlet and outlet pressures align with your pump and components to avoid overpressure.
- Displacement and RPM compatibility: Smaller CID values enable finer control but may limit total throughput. Higher RPM tolerance is important for fast cycles in industrial setups.
- Direction of flow (divider vs. combiner): Use a divider when you need equal or proportionate flow to several branches. Choose a combiner if you need to consolidate flows from multiple lines.
- Lockable adjustments: If precise, repeatable settings matter, prefer models with lockable or clearly dialed controls for reproducible operation.
- System integration: Check for compatibility with existing hydraulic oil type, temperature range, and the required port standard (SAE #6, #8, or SAE 10, etc.).
- Maintenance and accessibility: Consider units with straightforward servicing, accessible fittings, and common spare parts to reduce downtime.
Frequently Asked Questions
- What is a hydraulic rotary flow divider used for?
It splits or combines flow to balance multiple hydraulic circuits and synchronize actuator speeds. - How do I choose between a divider and a divider/combiner?
Use a divider to split flow into equal or proportional parts; use a divider/combiner when you need to both divide and merge flow within the same system. - What does CID per section mean?
CID per section indicates the internal displacement of each section, influencing how much fluid is moved per revolution and the overall flow control resolution. - What port sizes are common for rotaries?
Common sizes include SAE #6, #8, or SAE 10 ports; select based on your fittings and hose sizes to ensure proper sealing and flow. - Are higher GPM ratings always better?
Not necessarily; higher GPM supports larger loads, but the divider must match the pump output and the circuit requirements to prevent pressure issues. - Can these devices operate at high RPMs?
Many are rated for high RPMs (up to several thousand), but confirm the specific model’s RPM limit and system pressure to avoid potential damage.
