The buyer’s intent is clear: find reliable horizontal tensile testing machines that suit different budgets and testing needs. This guide highlights five solid options and explains who each is best for, plus practical trade-offs. It’s ideal for labs, quality-control teams, and engineers testing rubbers, cables, films, wires, and more. The following quick table helps compare core specs at a glance.
| Product | Maximum Load | Stroke | Best For |
|---|---|---|---|
| VIBICCK Manual Tensile Testing Machine | 500 N | 220 mm | Smaller-scale material tests with robust clamping |
| Usoraszkt 500N Digital Pull Tester | 1000 N | 50 mm | High-precision pull tests on wires and harnesses |
| Uphilltool 500N Digital Pull Force Tester | 1000 N | 50 mm | Compact, easy-to-use with digital readout |
| INTBUYING Electric Single Column Tester | 500 N | 450 mm | Electricized testing with flexible fixtures |
| BAOSHISHAN 420 mm Push-Pull Stand | 500 N | 420 mm | Spiral handwheel control for precise force |
Note: All listed products are horizontal or compatible with horizontal push-pull test setups. Each entry includes the stated features, recommended use cases, and potential limitations to help you decide according to material type, sample size, and test throughput.
VIBICCK Manual Tensile Testing Machine
Best for affordable, compact testing with a robust clamping system. This horizontal helical-type machine has an effective stroke of 220 mm and comes with a VI-001 fixture for a dependable testing experience on rubber, cables, papers, and films. The gear design increases friction during testing, improving grip on the tested object. The maximum load is 500 N, offering a solid baseline for small to medium specimens.
Who it’s best for: small laboratories, educational settings, and hobbyist or startup labs needing a budget-friendly horizontal tester. Why selected: strong clamping action and a clear mechanical design at a modest price point. Caution: limited to 500 N, so it may not handle larger test specimens or very dense materials.

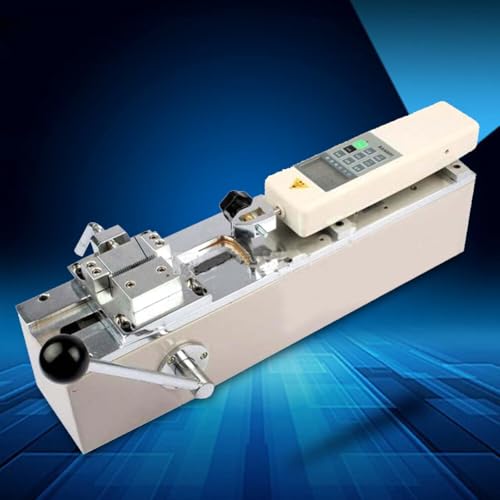

Usoraszkt 500N Digital Pull Tester
Best for high-precision displacement tracking with a larger 1000 N capacity option. This horizontal push-pull bench provides a digital displacement scale (0.01 mm accuracy) and a 50 mm test stroke. The system includes multiple fixtures for versatile testing, including terminal harness work. It suits applications requiring tight measurement alignment between force and displacement data.
Who it’s best for: labs needing precise digital readouts and compact form. Why selected: high-resolution displacement measurement improves data quality. Caution: the 50 mm stroke may limit longer samples or high-strain tests.

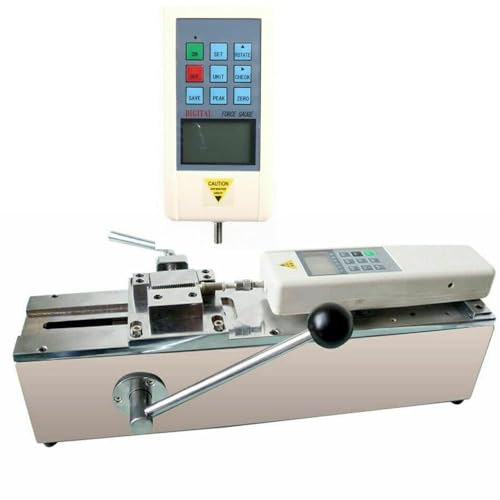

Uphilltool 500N Digital Pull Force Tester
Better for users who want a compact, user-friendly tester with a digital display. The HP-500 gauge offers 500 N capacity and a 0.1 N graduation for precise force measurement. The machine accelerates simple tensile and compression tests and is noted for its easy operation due to a movable handwheel for specimen testing.
Who it’s best for: quality-controlled environments needing straightforward operation and digital display. Why selected: combination of ease-of-use and reliable force measurement. Caution: data may require external analysis for multi-parameter testing beyond force alone.
INTBUYING Electric Single Column Tester
Best for comprehensive manufacturing or research testing with electric control and varied fixtures. The machine supports multiple mechanical tests—tensile, force, bending, peeling, tearing, and puncture—up to 500 N. Stroke extends to 450 mm, allowing longer samples to be tested, and it uses a dynamometer-centered design for flexible force reading.
Who it’s best for: facilities needing a versatile, electric-controlled tester with configurable fixtures. Why selected: broad test capability in one system. Caution: larger footprint and higher complexity than smaller manual models.
BAOSHISHAN 420 mm Push-Pull Stand
Best for precise force control with a compact, light frame. The APW model features a 420 mm horizontal stroke and a 500 N capacity. It uses a manual handwheel-controlled spiral mechanism with a mobile clamp for quick setup and repeatable clamping during tensile tests of varied materials.
Who it’s best for: small teams needing quick setup and repeatable clamping for quality checks. Why selected: reliable, compact design with straightforward operation. Caution: 420 mm stroke may be limiting for longer specimens or high-deflection tests.
BAOSHISHAN Manual Force Test Stand (APW)
Best for entry-level users needing a 220 mm horizontal stroke with a 500 N capacity. The spiral, handwheel-driven system offers precise force control and includes a fixed clamp plus mobile HJJ-001 clamp for quick fixture changes.
Who it’s best for: teaching labs, start-up facilities, and DIY testing setups. Why selected: compact, lower-cost option with essential tensile capabilities. Caution: shorter stroke and manual operation may limit complex testing scenarios.
Buying Guide
What to consider when selecting a horizontal tensile testing machine
Maximum load vs. sample thickness: Match the specimen’s expected force to the machine’s capacity. Heavier or stiffer materials require higher capacity and sturdier frames.
Stroke length: Longer strokes accommodate bigger samples or greater elongation; shorter strokes save space and cost.
Measurement precision: Digital displays with high resolution (0.01 mm or better) improve data accuracy for engineering analysis.
Fixture compatibility: Ensure the machine supports the fixtures you need for your samples, such as HJJ-001 clamps or custom jaws.
Control method: Manual handwheels are simple and robust; electric or digital systems provide repeatable testing and easier data capture.
Size and footprint: Consider laboratory space. Compact models fit tighter environments but may trade off some capability.
Single vs. multi-function systems
Single-function stands are cost-effective for basic tensile checks. Multi-function systems support a broader range of tests (peeling, tearing, bending), but may require more setup and calibration.
Fixture availability and support
Evaluate the availability of compatible fixtures and ease of repairs. A model with widely available spare parts and straightforward clamping systems reduces downtime.
Maintenance and safety
Look for solid construction, protective housings, and clear user manuals. Regular calibration and safe-handling practices extend device life and data reliability.
FAQ
- What is horizontal pull testing used for? It measures tensile strength and elongation in samples placed in a horizontal pull setup, beneficial for cables, films, wires, and components.
- Do these machines require calibration? Yes. Regular calibration ensures accurate force and displacement readings aligned with standards.
- Can I test both tensile and compression with these models? Some models offer dual capabilities; check product specs for each unit.
- What fixtures are commonly used? Clamps like HJJ-001, fixed clamps, and various mobile clamps are typical, depending on the model.
- Is a digital readout important? Digital readouts improve repeatability and data logging, especially for engineering analysis.
