When demanding HVAC/R projects require fast, deep evacuations, a high-volume vacuum pump can save time and improve reliability. This guide highlights top-performing high-volume pumps from trusted brands, focusing on flow rate, vacuum depth, dual-voltage capability, and durability features. Whether you’re handling residential installs or commercial systems, these selections balance power with practical features for everyday job sites.
Summary of Selected Products
| Product | Air Flow / Stage | Voltage | Key Feature |
|---|---|---|---|
| Mastercool 90066-BL-SF | 6 CFM / Single Stage | 110V | Spark-free, oil drain valve |
| Mastercool 90066-2V-110-BL | 6 CFM / Two Stage | 110V / 220V | Deep vacuum to 15 microns, dual voltage |
| Mastercool 90612-2V-110-BL | 12 CFM / Two Stage | 110V / 220V | High capacity, dual voltage, oil drain valve |
| VIVOHOME 3/4 HP Dual Stage | 7.2 CFM / Dual Stage | 110V | 0.2 Pa (15 Micron) vacuum, low noise |
| Elitech NVP-5 | 5 CFM / Single Stage | 115V | All-copper motor, clear oil window |

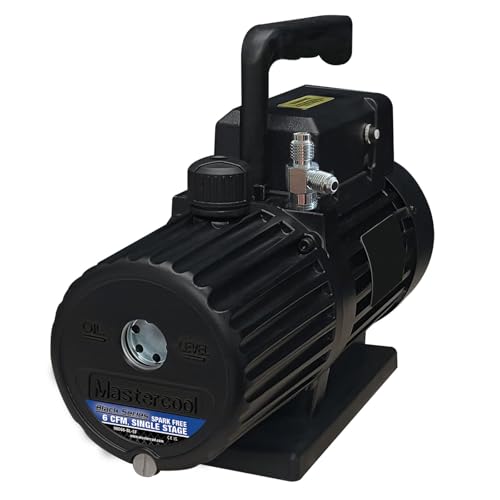

Mastercool 90066-BL-SF Black Series 6 CFM Single Stage Vacuum Pump
The Mastercool 90066-BL-SF delivers 6 CFM of spark-free performance with a single-stage configuration. It achieves an ultimate vacuum of 80 microns, suitable for general HVAC/R evacuations. The design includes spark-free operation for safe use with various refrigerants, including A2L and A3 families such as R1234yf and R134a. A 1/3 HP motor comes with built-in thermal protection to guard against overheating during extended sessions, supporting reliable daily use.
Mastercool 90066-2V-110-BL Black Series 6 CFM Two Stage Vacuum Pump
This two-stage pump reaches deeper vacuums down to 15 microns, ideal for high-precision HVAC/R tasks. Dual voltage capability (110V/220V) provides flexibility across job sites, with a thermally protected motor to ensure safe continuous operation. An efficient cooling system featuring a high-volume fan, cooling fins, and a gas ballast valve helps manage heat and protect the oil from moisture exposure, promoting long-term performance.
Mastercool 90612-2V-110-BL Black Series 12 CFM Two Stage Vacuum Pump
With 12 CFM of two-stage performance and an ultimate vacuum of 15 microns, this pump is designed for larger commercial and industrial HVAC/R applications. Dual voltage operation (110V/220V) enhances site versatility, while a thermally protected motor (3/4 HP) guards against overheating, ensuring dependable long-term use. The pump’s design emphasizes durability for demanding environments and consistent evacuation speed.
Elitech NVP-5 HVAC Vacuum Pump 5CFM
The Elitech NVP-5 provides 5 CFM of single-stage vacuum with a 1/3 HP all-copper motor, delivering a deep vacuum down to 2 Pa (0.02 mbar). The pump features a reinforced aluminum alloy housing for heat dissipation and corrosion resistance, plus a transparent oil level window for quick monitoring. Its ergonomic design and easy maintenance make it suitable for frequent job-site use and service calls.
VIVOHOME 3/4 HP Dual Stage Vacuum Pump
The VIVOHOME dual-stage pump combines a 3/4 HP motor with a 7.2 CFM flow rate, capable of achieving around 0.2 Pa (15 microns) for fast evacuations. The unit includes a protective thermally protected motor to prevent overheating, a high-volume cooling fan, and an efficient oil filtration scheme. A sturdy aluminum housing and low-noise operation make it suitable for busy shop environments and residential jobs.
Buying Guide: Key Considerations for High-Volume Vacuum Pumps
- Vacuum depth and stage: Two-stage pumps typically reach deeper vacuums (microns) than single-stage units, which matters for large systems or demanding refrigerants.
- Flow rate (CFM): Higher CFM reduces evacuation time on larger systems. Balance flow with stage and motor strength for best results.
- Voltage and adaptability: Dual-voltage models offer flexibility across job sites, reducing the need for adapters or transformers.
- Motor protection: Thermally protected motors prevent overheating, extending the life of the pump during long evacuations.
- Oil system and maintenance: Oil drain valves and clear oil windows simplify maintenance and help sustain performance.
- Refrigerant compatibility: Spark-free designs are important when working with flammable refrigerants (A2L/A3) to reduce ignition risk.
- Build quality and cooling: High-volume fans and robust housings improve heat management and durability in tough environments.
- Portability and ergonomics: Lightweight or compact designs with ergonomic handles ease transport between jobsites.
- Oil type and availability: Consider pumps that use standard vacuum pump oil, and keep a steady supply on hand for faster service.
- Noise levels: Quieter units reduce on-site disruption, especially in residential or commercial settings with noise restrictions.
For HVAC professionals, selecting the right high-volume vacuum pump involves balancing depth of vacuum, flow, durability, and site practicality. The models listed here cover a range of needs—from spark-free single-stage options for safer refrigerant work to robust two-stage units designed for large-scale evacuations—providing reliable choices across typical job sites.
