Answering the search for reliable, high-torque flexible shaft couplings, this guide highlights five top options suited for servo, stepper, and CNC applications. These picks balance torque capacity, vibration damping, and ease of installation. Ideal buyers include hobbyists building 3D printers and CNC rigs, technicians upgrading drive systems, and engineers seeking robust, low-noise couplings. A quick comparison table follows to help you compare key features at a glance.
| Product | Best For | Key Benefit |
|---|---|---|
| Martin 9H Quadraflex Sleeve | High torque, temperature resistant needs | Thermoplastic elastomer sleeve for high torque and high temperature |
| Sinoblu D54 L78 Flexible Shaft Coupling | Medium to large equipment | 1045 steel body with polyurethane pads for torque and alignment |
| 16mm Plum Flexible Shaft Coupling (BORDSTRACT) | 3D printers and CNCs needing vibration damping | Aluminum body, polyurethane ring, high torque handling |
| Zeberoxyz 8×10 Plum Flexible Coupling | Compact high-torque servo applications | Aluminum, plum shape, strong torque absorption |
| Sinoblu D30 x L35 8-14mm Aluminum Coupling | Versatile bore range | Aluminum alloy, good torque transmission and vibration damping |

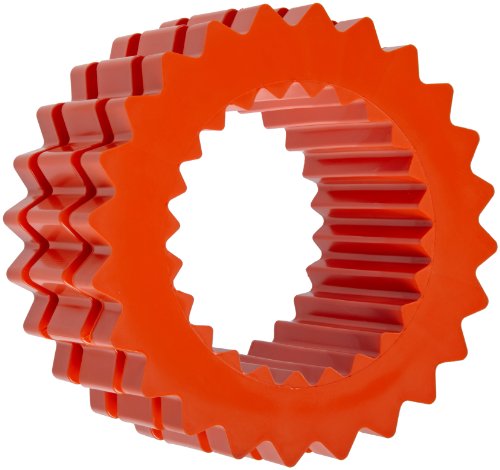

Martin 9H Quadraflex Sleeve, Hytrel
Product overview: For use with Martin S and SC flange assemblies in the Quadra-Flex line, this sleeve uses a thermoplastic polyester elastomer designed for high torque and high-temperature environments. It is available in one-piece (Type H) or two-piece (Type HS) configurations, which is helpful when space constraints affect installation. Best for: industrial drives and automated equipment needing reliable torque transfer and heat resistance. Limitation: installation options depend on flange type and sleeve configuration.
uxcell Shaft Coupling 1/2″ to 1/2″ Bore
Product overview: A general purpose power transmission coupling designed to damp vibrations and accommodate misalignment. It uses a three-part jaw coupling structure with two hubs and an elastomer insert. Best for: servo and motion-control setups where misalignment is present but high precision is not critical. Limitation: may require precise hub alignment during installation.
Sinoblu D54 L78 Flexible Shaft Coupling
Product overview: This 45 steel (1045) shaft coupler is precision-machined for high hardness and toughness. It pairs a sturdy body with polyurethane pads to deliver powerful torque while compensating for radial, angular, and axial misalignment. Best for: machine tools and automation equipment requiring long service life under heavy loads. Limitation: data notes high-torque capability but emphasizes alignment correction through its elastomer element.
16mm Plum Flexible Shaft Coupling (BORDSTRACT)
Product overview: Aluminium body, polyurethane ring, and a plum-shaped design aimed at high torque transmission with vibration damping. Best for: 3D printers and CNC machines where torque demands are high and space is limited. Limitation: bore is fixed at 16mm per side, so check shaft diameters before purchasing.
Zeberoxyz 2PCS 8×10 Plum Coupling
Product overview: Aluminum plum-shaped coupler that handles high torque with a focus on absorbing vibration. Best for: compact servo or stepper motor drives in DIY CNC and 3D printing setups. Limitation: available bore range is 8×10 mm, so ensure your shafts match these dimensions.
6.35mm to 12mm Plum Shaft Coupling
Product overview: Aluminum alloy body with a polyurethane ring, designed for high torque transmission with vibration damping. Best for: projects requiring a flexible connection between varying bore sizes. Limitation: bore range is 6.35–12 mm, so verify shaft sizes before ordering.
Sinoblu 2 Pieces D30 x L35 8-14mm Aluminum Coupling
Product overview: Aluminum plum-shaped flexible shaft couplings suitable for 8–14 mm bores, offering high hardness and robust torque transmission with vibration damping. Best for: DIY CNC and encoder-enabled machines where moderate bore flexibility is needed. Limitation: two-piece design may require extra hardware for assembly.
Buying Guide: Key Purchase Considerations
- Torque capacity vs. shaft size: Match the coupling to your motor torque and shaft bore diameters. Higher torque often requires stiffer materials and larger bodies.
- Material and damping: Aluminum bodies with polyurethane inserts provide good damping; thermoplastic elastomer sleeves excel in high-heat environments.
- bore compatibility: Check bore ranges and whether you need fixed or adjustable bore options. Some models are plum-shaped and offer specific bore pairs.
- Vibration absorption: For precise positioning, prioritize couplings with effective damping to reduce noise and wear on gearboxes and bearings.
- Space constraints: Some one-piece sleeves are compact, while two-piece sleeves may offer easier installation in tight spaces.
- Electrical isolation and misalignment tolerance: Some elastomer inserts help absorb misalignment; ensure compatibility with your servo or stepper architecture.
Common Questions (FAQ)
- What is a high-torque shaft coupling best used for?
High-torque shaft couplings are designed to transfer substantial rotational force while minimizing vibration and misalignment in motors and driven loads. They are ideal for CNC machines, CNC drives, and precision servo systems.
- What materials offer good torque and damping?
Aluminum housings with polyurethane inserts provide a strong balance of torque transmission and damping. Thermoplastic elastomer sleeves offer excellent torque handling in high-temperature environments.
- How do I choose the right bore size?
Compare the motor shaft and driven shaft diameters. Some models offer fixed bores (e.g., 16 mm) while others support adjustable ranges (e.g., 8–14 mm). Precision alignment tools help ensure a proper fit.
- What installation cautions should I observe?
Avoid over-tightening, ensure clean shaft surfaces, and confirm the coupling is centered to prevent bearing wear. For two-piece sleeves, verify retaining rings or fasteners fit within space constraints.
- Are these suitable for 3D printers?
Yes, several options are designed for 3D printers, offering vibration damping and flexible bore options for stepper and servo motors in motion control applications.
- Do all couplings require maintenance?
Most require periodic inspection for wear, misalignment, and solvent-based degradation of elastomer components. Follow manufacturer guidelines for replacement intervals.
