Answering the buyer’s search intent, this guide highlights top rotary torque sensors and closely related devices that help engineers, technicians, and hobbyists measure torque accurately. The selections cover real-time displays, digital outputs, and robust designs for various environments. Each product is evaluated for who it’s best for, plus practical pros and limitations to help you compare quickly.
Summary table of chosen products:
| Product | Best For | Key Benefit | Note |
|---|---|---|---|
| Brilluxa Rotary Torque Sensor, DYN-200 | Motor shaft measurements | Real-time torsion and speed, high refresh rate | Overload up to 200% |
| ATO Digital Rotary Torque Sensor (5 Nm) | Industrial control and PLC/SCADA | 4-20mA output, LCD shows torque, speed, power | 7-pin waterproof connector |
| LJIA Torque Adapter 0-300n Rotary Torque Transducer | Real-time torque monitoring | 0.5% FS accuracy, fast response | Wide -25 to 85°C range |
| ATO Static Torque Sensor (5Nm) | Static torque measurement and calibration | Flange to square drive design, bidirectional | IP65, overload 120% FS |
| NEIKO 03727A 1/4-Inch-Drive Beam Torque Wrench | Everyday torque tightening | Dual scale SAE/mm, 0–80 in/lb and 0–9 Nm | Calibration-like precision, portable |

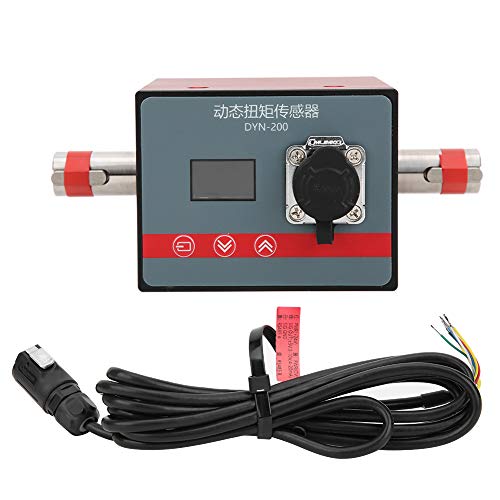

Brilluxa Rotary Torque Sensor, DYN-200
Features include a real-time torsion value and speed display, enabling direct calculation of power. The device supports active upload protocols and can communicate at up to 500 updates per second. It also offers simple calibration, data clearing, and filtering operations. It can tolerate overload up to 200%, making it suitable for high-demand testing scenarios. Best for engineers measuring motor shaft power and speed where quick data throughput matters.
Best for: users who need continuous real-time torque and speed readouts with fast data transfer to PLCs or computers. This model suits testing laboratories and R&D engineers who require robust overload tolerance and straightforward calibration. A potential limitation is the reliance on an OLED display for quick readings, which can be less readable in bright outdoor environments unless shaded.
ATO Digital Rotary Torque Sensor, 5 Nm
This sensor provides a 4-20mA output with an LCD that simultaneously shows torque, speed, and power. It uses a 7-pin waterproof circular connector and a 3-meter cable, allowing measurement in forward and reverse torque. It’s designed for industrial automation where the torque data needs to feed PLCs and other control systems directly. Best for: control systems integrators and factories needing a compact, factory-ready torque sensor with direct process control compatibility. Caution: ensure your system’s input module supports 4-20mA signals and that wiring is protected against moisture in harsh environments.
LJIA Torque Adapter 0-300n Rotary Torque Transducer
With a wide measurement range and fast response, this transducer is designed for real-time torque monitoring in diverse applications. It features 0.5% FS accuracy and operates across a wide temperature span of -25 to 85 degrees Celsius, making it suitable for challenging environments. It’s best for applications requiring a mid-range torque range with quick updates and reliable performance. Limitation: extreme ambient conditions or mechanical misalignment can affect accuracy, so proper mounting and alignment are essential.
ATO Static Torque Sensor, 5Nm
Designed for static torque measurement and torque wrench calibration, this sensor measures both forward and reverse torque. It features a flange on one end and a square drive on the other, with IP65 protection and safety overload up to 120% of full scale. Best for: calibration labs and maintenance shops that need precise static torque readings and a rugged, sealed device. Caution: it is not intended for dynamic (continuous motion) torque measurements, which reduces its suitability for rotating or live-load testing.
NEIKO 03727A 1/4-Inch-Drive Beam Torque Wrench
This beam torque wrench provides dual-scale readings in SAE and metric units, with 0–80 in/lb and 0–9 Nm increments. It offers high-precision calibration-focused performance and is a portable option for quick torque tightening on bikes, automotive components, and general mechanical work. Best for: professionals and DIYers needing a reliable, portable torque wrench for everyday tasks. Limitation: not a digital sensor; it requires manual reading and does not provide continuous torque data without conversion charts.
Buying Guide
What to consider when choosing a rotary torque sensor
- Measurement range: Match the torque range to your application. For motor shaft testing, higher ranges are common, while precision calibration may need lower ranges.
- Output format: Digital displays, 4-20mA, or RS-485/RS-232 compatibility affect integration with control systems and data loggers.
- Connection and sealing: Waterproof or IP-rated sensors endure tougher environments; decide if an underwater, dusty, or humid setup is expected.
- Response time and bandwidth: Higher refresh rates support real-time control and dynamic testing, while slower sensors suit static measurements.
- Calibration and drift: Look for devices with easy calibration and low drift over time to maintain accuracy across sessions.
- Mounting and form factor: Ensure the sensor’s shaft, flange, or adapters fit your mechanical layout and mounting constraints.
Application-focused guidance
- For lab testing and development: Prioritize sensors with real-time readouts, high update rates, and easy data export.
- For factory integration: Choose sensors with standard electrical outputs (4-20mA, 0-10V) and robust IP ratings for harsh environments.
- For field use or maintenance: Favor portable wrenches or compact transducers with simple calibration and robust construction.
Comparison quick take
- Best overall real-time capability: Brilluxa Rotary Torque Sensor, DYN-200 — high refresh, data-rich readouts, overload tolerance.
- Best for PLC/Automation: ATO Digital Rotary Torque Sensor (5 Nm) — 4-20mA output, LCD readouts.
- Best range and versatility: LJIA Torque Adapter 0-300n Rotary Torque Transducer — wide temperature range and fast response.
- Best static calibration option: ATO Static Torque Sensor, 5Nm — precise static torque measurement with robust protection.
- Best portable tightening tool: NEIKO 03727A — dual-scale, simple mechanical torque readout for everyday tasks.
Frequently asked questions
- What is a rotary torque sensor? A rotary torque sensor measures the twisting force on a rotating shaft and often provides real-time data for torque, speed, and power.
- Which output formats are common? Common formats include 4-20mA analog, digital displays, and RS-485/RS-232 for data logging and control systems.
- Can torque sensors handle dynamic testing? Yes, many sensors support rapid update rates suitable for dynamic torque measurements, while some are optimized for static readings.
- How do I choose between a sensor and a torque wrench? Sensors measure torque continuously and integrate with control systems; torque wrenches deliver finite torque readings for manual tightening tasks.
- Are IP-rated sensors necessary? For environments with dust or moisture exposure, IP-rated sensors offer better durability and reliability.
- What maintenance is required? Regular calibration checks, clean connections, and proper mounting alignment help maintain accuracy and longevity.
