Answering the need for quick, at-a-glance status of gate valve positions, these picks help operators and installers determine whether a valve is fully open or closed. Best suited for industrial and DIY users who want reliable visual indicators, sensor compatibility, and straightforward installation. The top picks below highlight clear indicators, space-friendly designs, and robust construction for various gate valve setups.
| Product | Brand | Key Benefit |
|---|---|---|
| Blast Gate Position Indicator | iVAC | Visual green/red LED indicators for open/closed gates |
| APL-210N Limit Switch Box | RQNKJJCE | Compact black indicator with support |
| APL-210N Limit Switch Box | GHHSBO | Compact black indicator with support |
| NIBCO Fig No T-154-A | NIBCO | Bronze gate valve, threaded, reliable |
| RAIDON Gate Valve with Post Plate | Generic | UL/FM approved, non-rising stem design |
Blast Gate Position Indicator by iVAC
Features highlight a Green LED for fully open and a Red LED for fully closed gates. The device allows flexible placement of the LED lights within two feet of the sensor, supporting easy installation with any manual gate and all iVAC Pro Automatic Blast Gates. This makes it best for operators who want a dedicated, integrated visual cue for blast gate status. Best for environments prioritizing quick, unambiguous status checks and straightforward integration with iVAC systems.
Who it’s best for: workshop owners or industrial setups using blast gates and iVAC controls who require a clearly visible status indicator. Why selected: clear color-coded LED status and flexible placement support quick visibility in tight or cluttered spaces.
Caution: Ensure the sensor-to-LED spacing remains within two feet to maintain reliable visibility and status accuracy.
APL-210N Limit Switch Box with Support (RQNKJJCE)
Compact black gate valve position indicator with a support feature. Data indicates suitability for standard gate valve setups and ease of installation. Best for users who need a straightforward indicator with a universal form factor. It’s chosen for its simple integration path when retrofitting existing valve lines.
Who it’s best for: contractors or facility managers needing a compact indicator that integrates cleanly with standard gate valves. Why selected: uncomplicated design and reliable form factor for common gate valve configurations.
Caution: Verify compatibility with your specific valve stem type and mounting constraints before purchase.
APL-210N Limit Switch Box with Support (GHHSBO)
Similar compact design as the RQNKJJCE variant, labeled under GHHSBO. Best for users who prefer multiple supply options or who encounter compatibility considerations with different valve bodies. The product aligns with standard 1-1/4 to 1-1/2 inch valve configurations depending on the installation.
Who it’s best for: projects requiring a compact, space-conscious indicator across several valve lines. Why selected: consistent, reliable indicator presence with a compatible mounting footprint.
Caution: Double-check the stem and bonnet compatibility to ensure secure mounting and signal reliability.

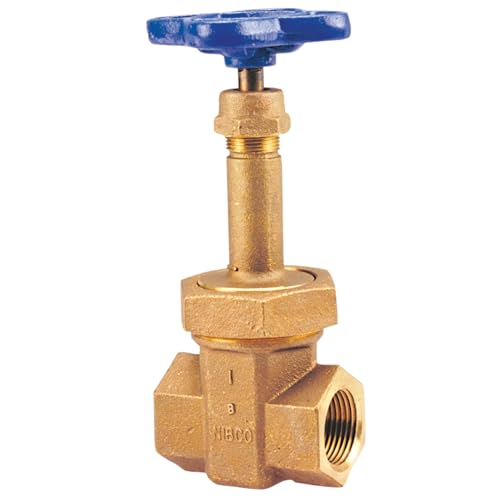

NIBCO Fig No T-154-A Bronze Gate Valve
Bronze gate valve with a 1/2 inch size, suitable for steam and water systems, rated for high pressures. Rising stem design and threaded connections support robust installation in lines requiring strong, enduring hardware. This model is best for systems needing reliable gate operation with a compact bronze valve body.
Who it’s best for: industrial or residential systems where bronze valves are preferred for corrosion resistance and a compact footprint. Why selected: proven valve design with strong pressure handling capabilities.
Caution: Ensure thread compatibility with your piping and confirm the correct connection type for your system’s needs.
RAIDON Gate Valve with Post Plate (FxF)
UL/FM approved, featuring a non-rising stem (NRS) design and Flanged x Flanged (FxF) ends for secure, leak-free connections. This valve is positioned for tight spaces and easy maintenance in fire protection and waterworks contexts. Best for installations requiring stability and certified safety features.
Who it’s best for: engineers or installers seeking a non-rising stem valve with reliable certification for high-need environments. Why selected: UL/FM approval and NRS design reduce side loading during operation.
Caution: Confirm the exact flange size and bolt hole pattern to ensure compatibility with existing flanges in your system.
HTNAFONI DC Gate Valve with Position Indicator
DC12V/24V PVC motorized ball valve with position indicator, available in various wire configurations. This product emphasizes automated control with an on/off indicator and a compact 1/2″ BSP thread. Best for automated systems requiring remote status indication and control.
Who it’s best for: automation projects or remote valve control setups where a motorized solution with a position indicator is advantageous. Why selected: integrates motorized operation with a clear position signal.
Caution: Check wiring requirements and voltage compatibility with your control system before installation.
Buying Guide: Gate Valve Position Indicators
- Indicator Type: Decide between visual LED indicators, mechanical flag indicators, or motorized position sensing. Visual LED indicators offer immediate status at a glance, while mechanical indicators can be more robust in harsh environments.
- Mounting Space: Measure the distance from the valve to the indicator and ensure placement within the sensor’s effective range. Flexible placement helps with crowded panels.
- Valve Compatibility: Check stem type (rising vs. non-rising), bonnet design, and thread size. Bronze valves and bronze-bodied options are common in high-heat or corrosive environments.
- Certification and Standards: For critical systems, consider UL/FM approvals or other relevant certifications to satisfy safety requirements.
- Automation Needs: If remote monitoring or control is required, choose motorized or wired indicators that integrate with existing control systems.
- Maintenance and Durability: Look for indicators with sealed housings and robust LEDs or mechanical components that resist dust, moisture, and vibration.
Frequently Asked Questions
- What is a gate valve position indicator? A device that shows whether a gate valve is fully open or fully closed, often using visual LEDs or mechanical indicators.
- Which indicator is best for a dusty environment? Mechanical flags or sealed LED indicators with protective housings are typically more resistant to dust.
- Can I retrofit an indicator to an existing valve? Yes, many indicators are designed for retrofit on common valve stems and bonnet types, but verify compatibility first.
- Are UL/FM certifications important for valve indicators? In safety-critical or industrial settings, such certifications can provide assurance of compliance and reliability.
- Do motorized indicators require wiring? Yes, motorized or remote indicators require wiring to power and interface with control systems.
- What spacing is needed between sensor and indicator? Follow the manufacturer’s recommended range, typically within a few feet to maintain signal integrity.
