When selecting a flush diaphragm pressure transmitter, the goal is reliable, sanitary, and accurate pressure measurement across liquids and gases. This guide helps buyers choose the right transmitter by comparing five relevant models, highlighting who they’re best for and potential limitations. The featured products cover a range of outputs (voltage, current) and measurement ranges, suitable for industrial automation, process control, and food-grade applications.
| Product | Output Type | Typical Use | Best For |
|---|---|---|---|
| EZDHEJDA Flush Diaphragm Pressure Transmitter | 1-5V / 0-16 bar | General industrial sensing | Systems needing voltage output and moderate ranges |
| F802H1BLO Certificated Sensor | 0-1 MPa | Air and gas applications | Sanitary or clean-air environments |
| RJARMVVQD Transmitter | 4-20mA / 0-10V (Beer/Milk sensor variant) | Process control and hygienic environments | Two common industrial outputs for simplicity |
| D3LX0Z1 Sanitary Sensor | 4-20mA with display | Food-grade and sanitary applications | Direct readouts in clean facilities |
| MHLRUUL 1PCS Flush Diaphragm | 4-20mA | Wide measurement ranges | Compact, single-transmitter installations |
EZDHEJDA Flush Diaphragm Pressure Transmitter
This transmitter uses a flush diaphragm design for reduced dead volume and fast response. Output is 1-5V with selectable ranges up to 16 bar, making it suitable for standard industrial control loops. Best for: facilities requiring simple voltage signaling and moderate pressure ranges. Caution: verify electrical compatibility with your control system’s input voltage and ensure proper calibration for non-standard media.

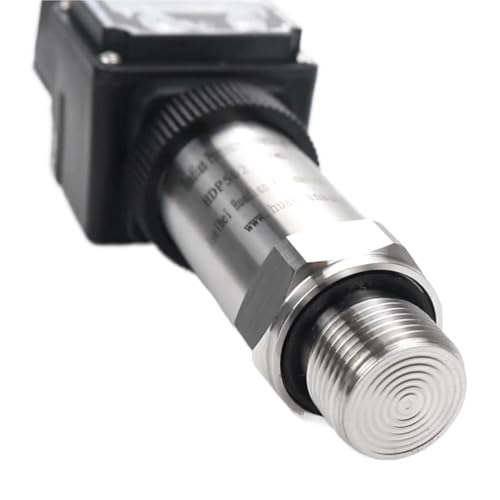

F802H1BLO Flush Diaphragm Certificated Sensor
Certified for air and gas applications, this transmitter emphasizes clean-signal delivery with a 0-1 MPa range. Best for: environments where sanitary or aerospace-adjacent air/gas monitoring is needed. Limitation: higher-level certifications may not cover viscous liquids, so do not use it for wet, sticky or highly viscous media without confirmation.
RJARMVVQD Transmitter With 4-20mA/0-10V Output
Designed for process control with dual output options, this unit supports 4-20mA and 0-10V signals, making it versatile for different PLCs and instrumentation. Best for: facilities needing straightforward integration into existing analog input cards. Limitation: ensure the media compatibility and installation position won’t introduce buoyancy or leakage concerns in long runs.
D3LX0Z1 Sanitary Flush Diaphragm Transmitter
Food-safe certified and designed for sanitary environments, this unit features a 4-20mA output with a built-in display. Best for: beverage, dairy, and other sanitary processing lines requiring direct readout. Caution: confirm the sensor material compatibility with food-grade cleanliness standards in your facility.
MHLRUUL Flush Diaphragm Transmitter
This 1-piece transmitter supports 4-20mA output with a wide measurement range including negative and high positive values. Best for: compact installations where a single sensor covers multiple pressure bands. Limitation: verify whether the -100 kPa to 0 to several MPa ranges fit the intended process before deployment.
Buying Guide: Key Considerations for Flush Diaphragm Transmitters
- Output compatibility: Choose voltage (0-5V/1-5V), current (4-20mA), or mixed outputs based on your control system’s input modules and cable runs.
- Measurement range and media compatibility: Ensure the diaphragm and seal materials resist the fluids or gases in your process. Sanitary and food-grade variants require certified materials.
- Sanitary vs. general-purpose: For food, dairy, or beverage applications, select sanitary flush diaphragms with cleanability and certification features. For industrial automation in non-food sectors, standard diaphragms may suffice.
- Environmental and process conditions: Consider ambient temperature, vibration, and potential exposure to corrosive substances. Choose transmitters with appropriate protection ratings and temperature compensation if needed.
- Installation and maintenance: Look for compact size, easy mounting, and clear display options. A built-in display can reduce maintenance checks in sanitary lines.
- Certifications and approvals: In food and pharma contexts, verify compliance with relevant standards and certifications to avoid rework during audits.
Additional Buyer Questions
What output should I choose for a PLC with analog inputs?
4-20mA is widely compatible with many PLC analog inputs; 0-10V can also work but may require signal conditioning or resistor shunts.
Are flush diaphragm transmitters suitable for liquids?
Yes, many models are designed for liquids with sanitary options available; confirm material compatibility with the liquid to avoid corrosion.
Do I need a sanitary model for dairy processing?
Yes. For food-grade applications, use sanitary flush diaphragm transmitters with appropriate certifications to ensure cleanability and compliance.
Can I use these transmitters with existing sensors?
They are designed to integrate with common control systems, but verify electrical and mechanical interfaces before deployment.
What is the advantage of a built-in display?
A built-in display provides immediate readouts on-site, reducing the need for external tools during calibration and troubleshooting.
These five options offer a spectrum of outputs, ranges, and sanitary features to match several common industrial and processing needs. Use the Buying Guide questions to validate your choice against your plant’s control system, media, and regulatory requirements.
