When wiring or piping in hazardous locations, choosing the right 90 degree fitting is essential for safety and reliability. This guide highlights five explosion-proof or hazardous-location rated 90° fittings, explaining who each product is best for and why it was selected. The selections emphasize durable materials like malleable iron and brass, corrosion resistance, and compatibility with IMC/GRC conduits or standard hoses where relevant. This article helps buyers compare options quickly and choose fittings that meet safety needs and installation requirements.
| Product | Best For | Key Benefit |
|---|---|---|
| COREX 3/4″ 90 Degree Capped/Pull Elbow | Hazardous-location conduits | Zinc-plated malleable iron for strength and corrosion resistance |
| Appleton ELBY-75 Capped Elbow | Explosion-proof installations | Malleable iron, proven hazardous-location design |
| COREX 1″ 90 Degree Capped/Pull Elbow | Industrial hazardous areas | Same durable construction in a larger size |
| QWORK 200D90 Polypropylene Cam and Groove | Non-metallic piping systems | 90° elbow with cam and groove for quick connections |
| Metaland Brass 1″ Hose Barb Elbow | Brass, water/fuel/air lines | Brass construction for temperature and pressure tolerance |
COREX 3/4″ 90 Degree Capped/Pull Elbow
Materials: Malleable iron with zinc electroplating for corrosion resistance. Design: Capped/pull elbow intended for IMC/GRC rigid conduit in hazardous locations. Best for buyers needing durable, explosion-protected conduit fittings in smaller lines. Limitation: May not fit all non-metallic systems without adapters. Suitable for electrical installations in hazardous areas requiring robust metal elbows.
Appleton ELBY-75 Capped Elbow
Materials: Malleable iron with explosion-proof design for hazardous locations. Application: Typically used where approved hazard-area fittings are required. Best for buyers prioritizing proven safety certification and familiar Appleton design. Limitation: Product details emphasize general explosion-proof labeling; verify exact certs for your jurisdiction.
COREX 1″ 90 Degree Capped/Pull Elbow
Materials: Zinc-plated malleable iron with durable construction for hazardous locations. This larger-size option mirrors COREX’s 3/4″ design, offering robust performance in bigger conduit runs. Best for buyers needing the same trusted build in a 1″ size. Limitation: Availability may vary by supplier; confirm conduit compatibility with IMC/GRC in your system.

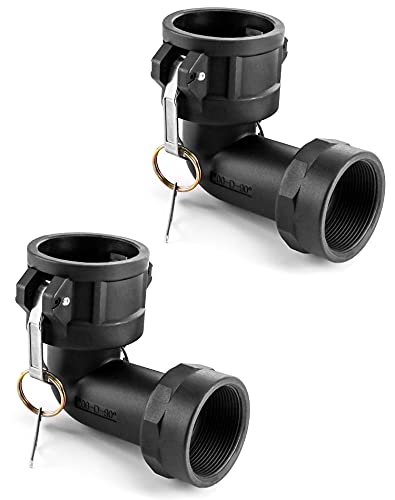

QWORK 200D90 2 Pack Elbow Fitting
Material: Polypropylene with cam and groove connection. Use: Connects hoses or pipes with 2″ female coupler to 2″ NPT female elbows. Best for buyers seeking a lightweight, quick-connecting option in non-metallic systems. Limitation: Not an explosion-proof metal fitting; intended for different safety profiles and applications.
Metaland Brass 1″ Barbed Elbow
Material: Solid brass with 1″ barbs. Use: Suitable for water, fuel, or air lines with compatible tubing. Best for buyers needing durable brass fittings in 1″ size for high-temperature or high-pressure scenarios. Limitation: Not designed for hazardous-location electrical conduit applications; ensure compatibility with your system type.
Buying Guide
- What environment will the fittings operate in? Choose explosion-proof or hazardous-location-rated products for safety-critical areas.
- What material best suits the system? Malleable iron offers strength and corrosion resistance; brass suits high temperature and pressure lines; polypropylene fits lightweight, non-metallic needs.
- What conduit or hose size is required? Match the size to your IMC/GRC conduit, hoses, or tubing to avoid leaks or fitment issues.
- Are certifications or approvals required by local codes? Verify that the product meets the specific hazardous-location standards for your project.
- Do you need a quick-connect option? Cam-and-groove fittings provide fast assembly, while rigid-threaded elbows offer robust, fixed connections.
Comparative Quick Reference
- Best for hazardous-location conduit: COREX 3/4″ and COREX 1″ elbows due to zinc-plated malleable iron construction.
- Better for explosion-proof aesthetics and proven brand: Appleton ELBY-75 elbow.
- Choose this if you need non-metallic quick connections: QWORK 200D90 2-pack polypropylene elbow.
- Avoid this if you require metal conduit protection: QWORK polypropylene is not explosion-proof metal and is used for different safety profiles.
FAQ
- What is an explosion-proof 90-degree elbow?: A conduit elbow designed to resist ignition and contain sparks in hazardous locations, meeting specific certifications.
- Which material lasts longest in harsh environments?: Malleable iron with zinc plating offers durability and corrosion resistance, suitable for many hazardous-area applications.
- Can I use these elbows with any conduit type?: Check compatibility with IMC/GRC rigid conduit or the hose/tubing size you intend to connect.
- Are non-metallic fittings acceptable in hazardous locations?: They are not typically rated for explosion-proof service; use appropriate metal or certified components for such areas.
- How many degrees of elbow do I need?: Measure the run path and select a 90-degree elbow that minimizes additional fittings while meeting code requirements.
- Do these products require special installation tools?: Some options are squeeze or cam-and-groove types that may reduce tool needs, while threaded metal elbows require standard wrenches and sealants rated for hazardous locations.
