Found the right digital dial indicator with data output? This guide targets buyers seeking direct data transfer capabilities (like RS232 or SPC) and easy integration with PCs or data systems. It highlights five practical options and explains who each is best suited for, plus key limitations to consider. Expect clear, comparison-friendly details to help you choose a model that fits your workflow—whether in a workshop, lab, or manufacturing environment.
Summary table of selected products:
| Product | Best For | Data Output Type | Notes |
|---|---|---|---|
| GOWE 25.4mm Digital Dial Indicator | Industrial shops needing RS232 datalink | RS232 (9 holes) | Self-contained datalink for GOWE indicator |
| THYXGS Indicator Lever Type | Multi-angle measurement with SPC output | SPC data output | IP65, versatile mounting |
| AICEYI Rs231 Data Cable | Direct PC data transfer without drivers | RS232/USB cable (Mini-B end) | Allows Excel-ready data input |
| KWTAJIEQC Data Cable (Rs231) | PC connection for digital displays | RS231 data cable | 98-inch length |
| Luzhengyang Digital Dial Gauge | General purpose inline measurements | Digital dial gauge output | Switchable mm/inch, 0.01 mm accuracy |
GOWE 25.4mm Digital Dial Indicator With RS232 Datalink
The GOWE digital dial indicator provides a built-in datalink and RS232 (9-hole) data output. It measures 0–25.4 mm with 0.001 mm resolution, making it suited for high-precision tasks in machining or metrology labs. The data link is designed for use with GOWE indicators; compatibility with other brands should be tested prior to use. Best for shops that need a straightforward RS232 data stream to a PC or data logger.
Who it’s best for: small to mid-size machine shops performing routine part checks and needing direct serial data export. Why selected: integration with existing digital workflows is straightforward for this model, reducing manual data entry steps. Limitation: data-link compatibility with non-GOWE indicators is not guaranteed.
THYXGS Indicator Lever Type Dial Indicator With SPC Output
This THYXGS lever-type dial indicator supports 0°–240° measurement and offers adjustable measurement range. It includes SPC data output for monitoring and control, improving production visibility. The IP65 rating helps withstand industrial dust and splashes. Choose this if your workflow benefits from multi-angle inspection and direct SPC data streaming to quality systems.
Best for: environments requiring robust ingress protection and flexible measurement angles. Better for: processes where SPC data can feed in real-time dashboards. Caution: data output is specified as SPC; confirm connector compatibility with your data software before purchase.

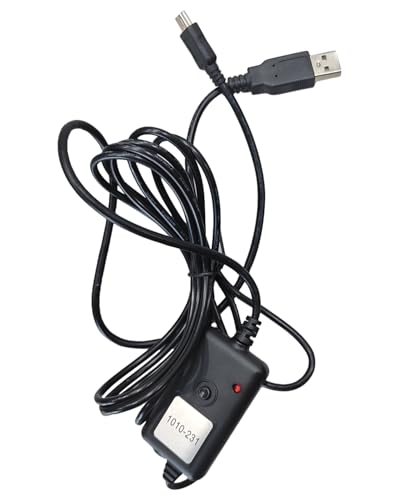

AICEYI Rs231 Data Cable for Digital Dial Indicators
This data cable is designed to connect digital indicators to a computer for data transfer. It enables direct data entry into Excel without additional drivers. The cable is 98 inches long and uses a MINI-B connector on one end with a USB on the other. This model is best for users prioritizing simple PC data capture without extra software setup. Limitation: it is a data cable only and does not power or charge the indicator.
Best for: users who want quick, driver-free data capture into spreadsheets. Choose this if your setup already uses RS232/USB paths and you need a long reach. Caution: not a charging cable; ensure the indicator has its own power source.
KWTAJIEQC Data Cable for Digital Dial Indicators
This RS231 data cable enables computer transfer for digital indicators and supports direct entry into standard Excel spreadsheets without drivers. The 98-inch length provides flexible workspace placement. Best for users who need a long, reliable data link to a PC for rapid data logging and reporting. Limitation: like other data cables, it does not provide power to the indicator.
VCUBTINKN Digital Display Dial Indicator Kit
The VCUBTINKN digital display kit features a 10 mm dial indicator with a digital readout. It emphasizes a portable, ready-to-use setup for precision checks in various settings. Best for: quick inline checks in small-scale operations or hobbyist labs. Caution: product name suggests a broader kit; verify whether the included components match your data capture needs.
Luzhengyang Digital Dial Gauge With Switchable mm/inch
This digital dial gauge supports switching between millimeters and inches, with a range up to 25.4 mm and an accuracy of 0.01 mm. It’s a practical option for users who need unit flexibility in general mechanical processes or educational settings. Best for: those prioritizing simple unit switching and straightforward measurement comparison. Caution: ensure the device’s data export paths meet your data-logging requirements since explicit data-link features are not highlighted in the listing.
Buying Guide
Key purchase considerations for digital dial indicators with data output:
- Data output type: Decide between RS232, SPC, USB, or Excel-integration. Choose the format that matches your data workflow and software ecosystem.
- Measurement range and resolution: Ensure the tool covers your required span (common ranges include 0–25.4 mm) with sufficient resolution (0.001–0.01 mm).
- Durability and environment: If your shop includes dust, water, or vibrations, look for IP ratings and rugged housing.
- Compatibility: Some data links work only with specific indicators. Verify connector types, baud rates, and software compatibility in advance.
- Power and cabling: Some cables do not power the indicator; confirm whether separate power is required and ensure cable length fits your layout.
- Ease of data capture: Consider drivers, software requirements, and whether data can be pasted directly into spreadsheets or integrated into manufacturing dashboards.
FAQ
- What does “data output” mean for a digital dial indicator?
It refers to the ability to transmit measurement data to a PC, data logger, or computer system, typically via RS232, SPC, or USB interfaces. - Do all data cables power the indicator?
No. Some cables only transfer data; indicators may require their own power source. - Is SPC data output universal across brands?
Not always. SPC interfaces can differ by protocol and connector; confirm compatibility with your data software. - Can I use these indicators without a computer?
Yes, many indicators still function as standalone gauges for direct readouts; data output features are optional. - What is the typical accuracy for these indicators?
Many models offer 0.01 mm to 0.001 mm precision within their specified ranges; verify the exact spec for your chosen model. - Which product is best for industrial environments?
Indicators with IP65 protection and robust datalink capabilities are typically suited for harsher shop conditions.
