Finding an efficient copper busbar punching machine means prioritizing reliability, precision, and user-friendly operation. This guide highlights five well-rounded options ideal for fabricators, electricians, and workshop builders who frequently cut, punch, or bend copper or aluminum busbars. Each model is evaluated for its strongest use case, potential limitations, and who will benefit most from its design. Use the quick reference table to compare core capabilities at a glance.
| Product | Best For | Key Strength | Limitations to Consider |
|---|---|---|---|
| INTSUPERMAI 3 in 1 Busbar Processor | Small shops needing 3-in-1 versatility | High torque: 20t cut, 31t punch, 16t bend | May require base setup for large workpieces |
| EQCOTWEA 4-in-1 Busbar Processor | Higher throughput projects | Four functions with 750W motor, 35t cut/punch | Higher price; heavier unit |
| Banfluxion HHM-200H | Professional workshop use | 700bar hydraulic system, 3-in-1 | Bulky; needs proper space |
| HQHAOTWU Electric Hydraulic Busbar Processor | Precision-focused users | 950+ W motor, burr-free punches | Complex maintenance considerations |
| INTBUYING 3 in 1 Busbar Processor | Budget-conscious shops | 900W power with 31t punch | Manual adjustments required for exact bends |
INTSUPERMAI 3 in 1 Busbar Processor Machine
This 3-in-1 machine combines punching, cutting, and bending in one hydraulic unit. It delivers a 20-ton cutting force, 31-ton punching force, and 16-ton bending force. Maximum cutting width and thickness are 150 mm by 10 mm, with a 70 mm throat for punching. Dies available include 3/8″, 5/8″, 1/2″, and 3/4″. Best for small to mid-sized copper busbars and workshop use where space is at a premium. A limitation is that larger workpieces may require additional clamping or fixture setups to maintain accuracy.
Who this is best for: Small shops or hobbyist fabricators needing an all-in-one tool for occasional cuts, punches, and bends on copper or aluminum busbars. It’s suited for straightforward, repeatable operations with smooth punching and controlled bending.
EQCOTWEA 4-in-1 Hydraulic Busbar Processor
The EQCOTWEA model offers four processing units: shear, punch, flat bending, and vertical bending, powered by a 750W motor. It produces a 35-ton cut, 35-ton punch, and 25-ton bend, with a cutting capability of 9.5 x 0.5 inches. The throat depth supports robust punching, and the unit emphasizes burr-free punching with a smooth cutting surface. It claims higher efficiency than many competing machines, making it a solid pick for larger production runs. A potential drawback is its weight and price, which may exceed smaller shops’ budgets.
Who this is best for: Fabrication shops handling higher volumes or more complex busbar shapes, especially where four different processes in one machine save time and setup work.
Banfluxion HHM-200H Busbar Processing Machine
Banfluxion’s 3-in-1 unit supports cutting, punching, and bending with a 700-bar hydraulic system and 900W power. It offers 35 tons for both cutting and punching, and 16 tons for bending, with a max cutting/punching/thickness of 12 mm. A built-in pressure gauge helps prevent overload, and the punching and bending tools use alloy steel for durability. Best for professional environments needing reliable performance and clear pressure feedback. A limitation is the unit’s bulk and space requirement in tighter workshops.
Who this is best for: Pro shops that require strong punch and cut performance with good overload protection and straightforward maintenance.

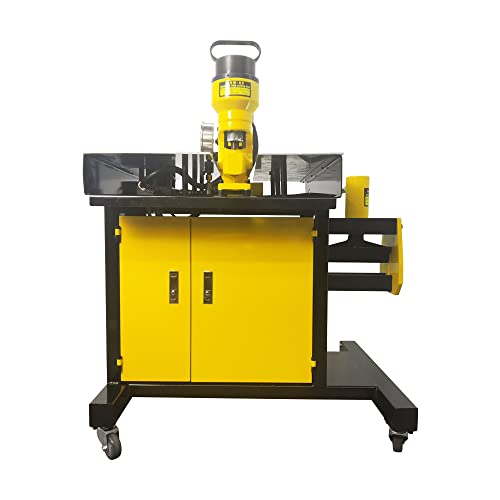

HQHAOTWU Electric Hydraulic Busbar Processor Cutter
The HQHAOTWU unit emphasizes precision with a 900W motor and an oil-based pressure gauge rated at 1000 kg/cm². It features a split punching tool with a high-strength alloy C-shaped head to ensure accurate punching without burrs. The punching throat is 70 mm, and dies include 3/8″, 5/8″, 1/2″, and 3/4″. The cutting surface remains burr-free, and one-time bending achieves high precision. Safety and sealing are highlighted, reducing hydraulic leaks. A potential drawback is more demanding setup and regular maintenance to sustain precision.
Who this is best for: Operators prioritizing burr-free punching and tight tolerances, suitable for consistent, precision-focused production tasks.
INTBUYING 3 in 1 Electric Hydraulic Busbar Processor
The INTBUYING model provides cutting, punching, and bending with a 900W motor and 31-ton punching force, 20-ton cutting, and 16-ton bending. It supports multiple punching dies (3/8″, 5/8″, 1/2″, 3/4″). The unit emphasizes high precision and burr-free results, with a four-position valve control to indicate pre-punch, bend, and cut positions. A caution is that precise bending requires careful alignment and fixture setup for complex geometries.
Who this is best for: Shops looking for a versatile 3-in-1 tool with strong punching capability and predictable performance at a more accessible price point.
Buying Guide: How to Choose Your Busbar Processing Machine
- What tasks will you perform? If you mainly cut and punch, prioritize higher cutting and punching forces. If bending is frequent, consider a unit with strong bending power and precise one-shot forming.
- Material and thickness range Check max thickness for cutting, punching, and bending. Copper and aluminum busbars vary in hardness; choose a model that handles your typical sizes.
- Hydraulic system and pressure gauge A reliable gauge helps prevent overload and reduces maintenance risk. Higher pressures enable tougher work but require proper safety measures.
- Footprint and workflow Consider space in your shop. 3-in-1 machines save space but may be bulkier. Ensure a stable base and secure workholding for accuracy.
- Safety and maintenance Look for robust guarding, oil seals, and easy access for lubrication and replacement of dies and components.
FAQ
- What is a busbar punching machine used for? It punches, cuts, and bends copper or aluminum busbars to create electrical distribution components.
- How do I choose the right dies? Select dies matching your common hole sizes and bend radii. Ensure the dies are compatible with your machine model.
- Is burr formation common? Reputable machines state burr-free punching and smooth cutting surfaces. If burrs appear, check alignment and die wear.
- Do these machines require special maintenance? Regularly inspect hydraulic seals, lubricate moving parts, and verify pressure readings to avoid overload.
- Can I upgrade dies later? Many models support replacement dies; confirm compatibility with your chosen machine before purchase.
