If you’re looking to optimize plasma cutting with consistent torch height, these CNC plasma torch height controllers help maintain a steady arc and reduce scrap. The best options are suited for shop owners, fabricators, and hobbyists who want automatic height control, improved kerf quality, and simpler motor control during automatic or manual modes. Below is a quick summary of the top five picks and who they’re best for.
| Product | Brand | Why It Stands Out |
|---|---|---|
| Tgoon Plasma Torch Height Controller | Tgoon | Continuous height adjustment for uneven plates; boosts efficiency and kerf quality |
| Torch Height Controller for CNC Plasma Arc Voltage Cutting Machine | Srliya | Automatic distance control with smooth kerfs; straightforward manual/auto switch |
| Torch Height Controller, Plasma Arc Voltage Cutting Machine | Marhynchus | Automatic height control tied to arc voltage; clear motor control options |
| POEIRA F2100B 2-Axis CNC Controller System + F1621 THC | POEIRA | High-precision CNC motion control with user-friendly interface |
| POEIRA 24V THC HP105 | POEIRA | Constant-current plasma with arc voltage feedback for stable height |
Best All‑Round Height Controller for Auto and Manual Modes
The Tgoon model offers continuous height adjustment to keep the torch at a constant distance from the steel plate, even when the plate is uneven. Best for fabricators who want a straightforward automatic mode with reliable arc pressure control. It also includes a motor control feature to operate the cutting motor from the same panel, improving workflow in both automatic and manual states. Caution: verify compatibility with your specific plasma cutter and mounting setup to ensure smooth integration.
Smooth Height Control for Consistent Kerfs
The Srliya Torch Height Controller emphasizes automatic adjustment of cutting distance to produce smooth kerfs and reduce scrap, with a simple control switch for auto/man modes. It’s a solid pick for shops prioritizing efficiency gains and ease of use. Best for users who want reliable automatic height control without complex programming. Limitation: ensure the panel switch operation feels sturdy enough for frequent changes between modes during production runs.
Automation‑Focused Controller for HP105 Systems
The Marhynchus model provides automatic control of torch height based on the HP105 panel’s arc voltage setting. It’s chosen for users who want a clear voltage-to-height relationship to maintain consistent arc conditions. Best for operations where arc voltage feedback is a primary control path. Caution: confirm voltage ranges match your plasma system to avoid misalignment with arc stability.
High‑Precision 2‑Axis Controller with 1600 mm/min Lifter
The POEIRA F2100B system pairs a 2‑axis CNC controller with a high‑precision lifter, offering precise motion control and an intuitive touchscreen/keyboard interface. It’s ideal for shops that already use CNC controllers and want to synchronize torch height with motion programs. Best for users who need high precision and a friendly user interface. Limitation: setup may require more time to align with your existing CNC workflow.

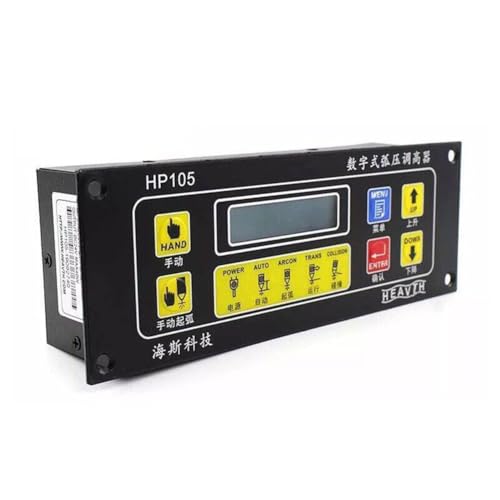

HP105 24V Plasma Torch Height Controller
The HP105 model maintains a constant arc voltage by adjusting the torch height as cutting progresses. It is best for operators who set a target current and wish the arc voltage to guide height adjustments automatically. Choose this if your system benefits from a fixed current with voltage feedback. Caution: arc voltage settings should be tuned to your material thickness and cutting speed to maintain optimal height.
Sturdy Torch Lifter for Stainless Work
The Z Axis CNC Plasma Cutting Torch Lifter by Eujgoov emphasizes a robust clamping range and sturdy stainless steel design. It’s best for shops handling thicker or tougher metals and requiring reliable lift mechanics with long service life. Best for durable, high‑duty use. Limitation: installation space and mounting must accommodate the 100 mm lift travel and mechanical clearances.
Buying Guide
- What mounting and compatibility do I need? Check torch mounting style, lift range, and compatibility with your plasma power supply and CNC controller.
- What type of control suits my workflow? Choose automatic voltage/height feedback for hands‑free operation or manual/auto switches for versatile production lines.
- How important is precision? For high‑precision cuts, prefer controllers with high‑resolution feedback and error compensation features.
- What materials and thickness will I cut? Thicker materials and stainless steel may demand more robust lifters and tuned arc voltage settings.
- Ease of programming and interface? Interfaces with touchscreens or clear parameter entry help reduce setup time and operator training.
- Reliability and maintenance? Look for components with durable housings, simple motor control, and clear diagnostic indicators.
FAQ
- What does a torch height controller do? It automatically maintains the cutting torch at a set distance from the workpiece to produce consistent arcs and kerfs.
- Do I need auto or manual mode? Auto mode is beneficial for production runs with uneven plates; manual mode is handy for set‑ups and adjustments.
- Is arc voltage important? Yes. Arc voltage helps regulate height; mismatched voltage can affect cut quality and torch wear.
- Can these controllers work with any plasma cutter? They are designed to work with common CNC plasma setups, but always verify compatibility with your equipment.
- What is the typical lift range you should look for? Lift ranges vary; choose a range that covers your thinnest to thickest material plus some headroom for mounting tolerances.
- How difficult is installation? It varies by model; expect straightforward mounting for standard torches, with some models requiring more integration work with CNC software.
