When choosing a chemical injection quill with a check valve, the goal is reliable, corrosion-resistant injection in piping while preventing backflow. This guide covers five top options designed for use in 4″ pipes, appropriate for high-heat and high-pressure environments. Best for industrial maintenance pros, system integrators, and facility engineers who need dependable quills with built-in check features to minimize backflow risk.
Below is a quick summary of the five products discussed, highlighting who each is best for and how they compare on key factors like material, valve presence, and size compatibility.
| Product | Best For | Quill Size | Valve Type | Notes |
|---|---|---|---|---|
| ChemWorld 1″ MNPT SSTL 2 3/4″ Quill (No Internal Check) | Budget-conscious installations without backflow concerns | 2 3/4″ | No internal check | Solid choice where check valve is not required |
| ChemWorld QC Series 1/2″ NPT SSTL 2 3/4″ Quill (With Check) | Smaller line systems needing backflow protection | 2 3/4″ | Internal check valve | Compact and reliable for 4″ pipes |
| ChemWorld QC Series 1/2″ NPT SSTL 2 3/4″ Quill (With Check) | Compact, high-psi environments | 2 3/4″ | Internal check valve | Good compatibility with 4″ pipe runs |
| ChemWorld QB Series 3/4″ NPT SSTL 2 3/4″ Quill (With Check) | Medium-diameter lines requiring backflow control | 2 3/4″ | Internal check valve | Versatile for 4″ piping |
| ChemWorld QC Series 1″ MNPT x 1/2″ FNPT 2 3/4″ Quill (With Internal Check) | Integrated payloads and mixed connections | 2 3/4″ | Internal check valve | Flexible porting |
ChemWorld 1/2″ NPT SSTL 2 3/4″ Quill With Check Valve
This 1/2″ NPT SSTL chemical injection quill includes an internal check valve, rated for up to 3,000 psi and 750°F, with a 2 3/4″ quill length designed for 4″ pipes. Best for smaller line systems that require backflow prevention and strong temperature/pressure tolerance. Suitable for facilities needing compact quill assemblies that still prevent backflow.
Best for: technicians working in tighter spaces or in systems where backflow must be prevented. Advantage: internal check valve reduces backflow risk without external additions. Limitation: smaller port size may limit compatibility with some injection chemistries.
ChemWorld QC Series 3/4″ NPT SSTL Quill With Check
This 3/4″ NPT SSTL chemical injection quill features an internal check valve and a 2 3/4″ quill length. It is rated to 3,000 psi and 750°F, and is designed for 4″ piping. Best for general-purpose injections where backflow prevention is essential and 4″ pipe installations are common. It provides balanced performance and durability in demanding environments.
Best for: mid-range pipelines needing reliable check-valve protection. Better for: applications where 4″ pipe integrations are standard. Caution: ensure chemical compatibility with stainless steel and check valve components in aggressive chemistries.

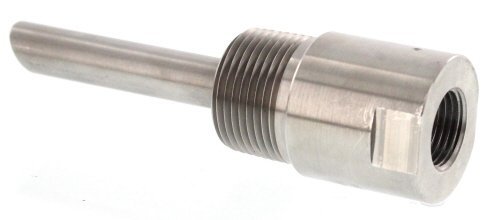

ChemWorld QC Series 1″ MNPT x 1/2″ FNPT 2 3/4″ Quill With Internal Check
This 1″ MNPT x 1/2″ FNPT quill blends two connection types with an internal check valve. It accommodates up to 3,000 psi and 750°F, featuring a 2 3/4″ quill length suitable for use in 4″ pipes. Best for facilities needing mixed connection configurations without sacrificing backflow protection. Advantage: flexible porting for complex piping. Caution: ensure compatibility across both connection types in your system.
ChemWorld QC Series 1″ MNPT SSTL 2 3/4″ Quill With Internal Check Valve
This high-psi, high-heat quill from ChemWorld features an internal check valve and robust stainless steel construction. Rated to 3,000 psi and 750°F, it uses a 2 3/4″ quill length ideal for 4″ pipe injections. Best for: installations requiring integrated check protection and a straightforward, durable design. Limitation: higher psi/temperature specs may require careful material handling in certain chemical environments.
Product data indicates reliable performance for backflow prevention in chemical injection applications. These five options provide a range of connections and valve configurations to fit diverse 4″ pipe systems while prioritizing backflow protection where required.
Buying Guide
What matters when choosing a chemical injection quill with a check valve?
- Valve presence and type: Internal check valves prevent backflow. Decide between internal or external solutions and how they fit your piping style.
- Connection size and type: Options include MNPT, NPT, and FNPT. Match the quill to your existing pipe threads and fittings.
- Quill length: Most options use a 2 3/4″ quill length, suitable for 4″ pipe applications. Confirm compatibility with your installation space.
- Material and ratings: Stainless steel quills withstand high pressure (up to 3,000 psi) and temperature (up to 750°F). Consider compatibility with the injected chemical and ambient conditions.
- Intended use and system size: Smaller lines may benefit from compact quills with an integral check. Larger lines may prioritize higher psi ratings and longer service life.
What installation considerations help ensure reliability?
- Ensure proper thread engagement and use appropriate sealing compounds or PTFE tape rated for high temperatures.
- Verify chemical compatibility with stainless steel and any silicone or gland components in the check valve assembly.
- Plan for routine maintenance: check valves can wear and may require inspection or replacement to maintain backflow protection.
How do these quills compare for typical 4″ pipe injection tasks?
- Best overall with backflow protection: Quills with internal check valves provide built-in protection, reducing backflow risk in most injection scenarios.
- Best for space-constrained installs: Smaller NPT connections with internal checks fit tight spaces better than larger, bulky assemblies.
- Best for mixed porting needs: Quills offering MNPT and FNPT options provide flexibility for varied system configurations.
Recommended selection strategy
- For strict backflow prevention in compact spaces: choose a 1/2″ NPT or 3/4″ NPT quill with an internal check valve.
- For mixed connections and 4″ pipe compatibility: consider a 1″ MNPT x 1/2″ FNPT with integrated check valve.
- When backflow is less critical but system simplicity is priority: a non-check quill can be considered, but be aware of backflow risks.
FAQ
- What is a chemical injection quill with check valve? It is a device mounted in piping to inject chemicals, featuring a check valve to prevent backflow into the supply line.
- Do I need a check valve on every quill? If backflow prevention is a requirement in your system, select a quill with an internal check valve or use an external check arrangement.
- What materials are these quills made of? Stainless steel options withstand high pressure and temperature; material choice depends on chemical compatibility and corrosion considerations.
- Can these quills be used in 4″ pipe systems? Yes, the listed quills are designed for use in 4″ pipes with a 2 3/4″ quill length.
- Are there any limitations to consider? Some designs have fixed porting or require specific thread types; ensure your plumbing supports the chosen configuration.
- What safety considerations apply? Verify chemical compatibility and ensure proper installation to maintain backflow protection and avoid leaks.
