Answering the need for stable, high-accuracy blocks, this guide highlights top ceramic gage block sets. These are ideal for shops and labs that require excellent dimensional stability, low thermal expansion, and corrosion resistance. The best buyers are metrology practitioners, toolmakers, and calibration technicians who need reliable reference standards in magnetic or non-magnetic environments. The following selections prioritize true ceramic blocks with strong certificates and ASME compliance where applicable. A quick comparison table is included for fast decision-making.
| Product | Type | Key Benefit |
|---|---|---|
| CME 81 pc Ceramic Gauge Block Set (Grade 1) | Ceramic | High stability with full ASME-approved testing |
| Mitutoyo Ceramic Square Gage Block Set (AS-2) | Ceramic | Square base for precise wringing and reference height |
| INSIZE 4005-136 Ceramic Gage Block Set (AS-1) | Ceramic | Excellent wear/corrosion resistance and stability |
| MeterTo Ceramic Gage Blocks Measuring Block Set (32 Pieces) | Ceramic | Non-magnetic, non-conductive for special environments |
| 81 PCS Ceramic Gage Block Set Grade 1 (NIST Cert #702-CC01) | Ceramic | NIST-equivalent certification for traceability |
CME 81 pc Ceramic Gauge Block Set, Grade 1
The CME 81 Piece Ceramic Gauge Block Set is manufactured under controlled conditions and calibrated at 68°F. It includes 81 blocks with a certificate listing the deviation for each block, and the set is tested according to ASME B89.1.9-2002 Federal Standards. This makes it well-suited for calibration labs and tool rooms that require traceable, Grade 1 ceramic references. Best for professional metrology labs needing a complete Grade 1 ceramic reference with formal certification.
Best for: high-precision calibration environments and shops that demand a complete Grade 1 ceramic kit with documented deviations. Why selected: the included certificate and ASME-aligned testing provide robust traceability and reliability for batch verification and reference measurements.
Limitation: as a broad 81-piece set, some users may prefer smaller subsets focused on particular ranges. Consider pairing with other sizes if your stack requires very specific blocks.
Mitutoyo Ceramic Square Gage Block Set, ASME Grade AS-2
This Mitutoyo set uses ceramic blocks designed for dimensional stability and thermal expansion resistance. The blocks come with a Mitutoyo certificate of inspection confirming ASME B89.1.9 compliance. The square base aids precise wringing and helps establish a reliable height reference standard. This option is best for users who need stable blocks for wringing and consistent height references in calibration tasks.
Best for: shops requiring tight compliance with ASME standards and a wring-ready square surface. Why selected: Mitutoyo’s certificate supports traceability, and the ceramic material minimizes dimensional change in temperature fluctuations.
Limitation: AS-2 grade is high precision, but users should verify compatibility with their jigs and inspection fixtures to ensure optimal wringing performance.
INSIZE 4005-136 Ceramic Gage Block Set, Grade AS-1
The INSIZE 4005-136 set features ceramic blocks with excellent wear resistance and dimensional stability. It meets ASME B89.1.9 and includes a manufacturer inspection certificate. This makes it a solid choice for labs needing dependable reference standards with documented quality control. Best for: workshops that require durable, thermally stable ceramic references with formal certification.
Limitation: check block ranges to ensure they cover the exact measurement gaps your applications require, as ceramic sets can emphasize specific tolerance bands.

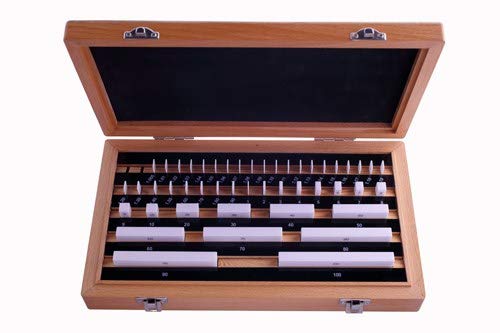

MeterTo Ceramic Gage Blocks Measuring Block Set (32 Pieces)
MeterTo offers a 32-piece ceramic set with 1–60 mm sizes, rated Grade 0. The blocks are wear-resistant, corrosion-resistant, non-magnetic, and non-conductive, making them suitable for special environments. They provide high dimensional stability and resist plastic deformation, with small gaps that do not affect test results. Best for: environments needing non-magnetic, non-conductive reference blocks and good practicality for intermediate ranges.
Limitation: not all blocks may include detailed traceability certificates; verify when ordering if your lab requires strict certificate documentation.
81 PCS Ceramic Gage Block Set Grade 1, NIST Cert #702-CC01
This CME set includes 81 ceramic blocks with a Grade 1 classification and a NIST-equivalent certificate (#702-CC01). It emphasizes traceability and precision for calibration tasks. Best for: laboratories and manufacturing environments that require formal certificate-backed traceability to national standards.
Limitation: ensure you have storage and handling accommodations for ceramic blocks, as improper handling can lead to chipping or micro-damage over time.
INSIZE 4005-36 Ceramic Gage Block Set, Grade 0
The INSIZE 4005-36 is a Grade 0 ceramic set designed for wear resistance and dimensional stability. It lists practical package dimensions and weight, which helps plan storage and transport needs in compact lab spaces. Best for: smaller calibration workstations or classrooms needing accurate ceramic references within limited space.
Limitation: Grade 0 indicates very tight tolerances, so verify that your equipment and fixtures can accurately wring and use such precise blocks.
Buying Guide: Ceramic Gage Block Set Essentials
What to consider when choosing ceramic gage blocks:
- Grade and certification: Choose sets with ASME B89.1.9 compliance and reputable certificates (e.g., NIST-equivalent, Mitutoyo certificate) for traceability.
- Material and stability: Ceramic offers low thermal expansion and corrosion resistance, beneficial in temperature-variable environments.
- Block range and granularity: Ensure the set covers your typical measurement ranges and includes the most-used sizes to minimize swapping.
- Certificate coverage: Check whether the set provides individual deviation data per block or a certificate of inspection to support calibration records.
- Storage and handling: Ceramic blocks are hard but brittle; proper storage jigs and protective cases help prevent chipping and cracks.
- Compatibility: Some sets emphasize wringing surfaces (square bases) for stable stacks; consider your inspection fixtures and wringing needs.
Practical tips for use and care:
- Keep blocks clean and free of oil or coolant to maintain stable spacing and wringing quality.
- Avoid sudden temperature shifts and expose blocks to direct heat/cold to protect dimensional stability.
- Inspect blocks for chips or nicks before use; damaged blocks can skew measurements.
- Use appropriate storage cases to prevent contact damage between blocks.
FAQs
- What is a gage block set used for? It provides a precise reference for alignment, calibration, and measurement stacking in metrology.
- Why choose ceramic over steel gage blocks? Ceramic offers lower thermal expansion, better wear resistance, and corrosion resistance in many environments.
- Do ceramic gage blocks require calibration certificates? Yes, certificate-backed traceability improves reliability for calibration labs and quality systems.
- What does ASME Grade mean? It indicates specified accuracy and tolerances defined by the ASME B89.1.9 standard for reference blocks.
- How should I store ceramic blocks? In a protective case, away from impacts, and in a temperature-controlled environment to maintain stability.
- Are all ceramic gage blocks non-magnetic? Most ceramic blocks are non-magnetic, but verify with product specs if you work in magnetic-sensitive contexts.
