If you’re shopping for aluminum pneumatic cylinder tubes or cylinders with aluminum components, this guide helps you pick the right option for clean environments, easy mounting, and reliable actuation. This article analyzes five options suited for different applications—from compact, high-precision setups to larger, robust deployments. Best for compact automation, best for heavy-duty use, and best for easy mounting, these picks cover a range of bore sizes, strokes, and port configurations. Each product section explains who it’s best for and why it stands out, along with a key limitation to consider.
Buying guide at the end includes practical considerations, such as bore size, stroke length, port fittings, mounting versatility, and material durability. A quick reference table compares notable specs to help you decide quickly.
Product comparison quick reference
| Product | Bore | Stroke | Material Notes | Best For |
|---|---|---|---|---|
| Numatics 1062D01-01A M Series | 1 1/16″ | 1″ | Aluminum caps, stainless tube | Industrially robust, versatile mounting |
| Baomain SC 100 x 250 | 3.94″ | 9.84″ | Aluminum components not specified; standard PT ports | High torque to length ratio |
| Baomain SC 63 x 200 | 2-1/2″ | 7.87″ | Standard aluminum body options implied | Compact footprint, reliable double-acting action |
| TAILONZ MAL25x100 | 1″ (25mm) | 4″ | Aluminum body noted | Small, precise, easy integration |
| TAILONZ MAL20x100 | 3/4″ (20mm) | 4″ | Aluminum body noted | Lightweight, good for quick cycles |
| SWZHAI MAL16x300 | 16mm | 300mm | Aluminum alloy body | Long stroke, high-frequency use |
Numatics 1062D01-01A M Series Double Acting Cylinder
The Numatics M Series 1062D01-01A is a double-acting pneumatic cylinder featuring a stainless steel tube and aluminum caps. Its corrosion-resistant head and end caps are ideal for clean environments, making it a solid choice for precision automation in food-processing, pharmaceutical, and electronics assembly lines. It offers broad compatibility with multiple mounting configurations—27 styles are available—enhancing versatility in tight spaces. Best for: installations requiring robust corrosion resistance and flexible mounting options.
Best for: environments where cleanability, corrosion resistance, and mounting versatility are prioritized. Why selected: corrosion-resistant caps and interchangeable mounting styles improve longevity and adaptability in industrial settings.
Caution: ensure the mounting style chosen aligns with your machine’s long-term motion profile to avoid clearance issues over time.

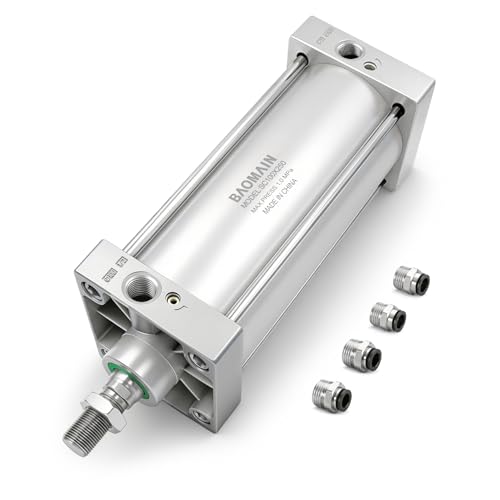

Baomain SC 100 x 250 Pneumatic Cylinder
This Baomain standard pneumatic cylinder features a 3.94″ bore and a 9.84″ stroke with a double-acting, single-rod design for balanced force in both directions. It incorporates an M20X1.5 threaded piston rod for secure connections and a self-lubricating bearing to support maintenance-free operation. PT 1/2 port with a fittings kit is included for convenient installation. Best for: projects needing strong forward and return force with straightforward integration in standard pneumatic circuits.
Best for: setups requiring a larger bore for higher actuating force and straightforward mounting. Why selected: long stroke and threaded rod simplify attachment to fixtures and tooling.
Caution: check compatibility of push-in fittings with your tube OD to avoid leaks or binding in tight installations.
Baomain SC 63 x 200 Pneumatic Cylinder
The Baomain SC 63 x 200 offers a 2-1/2″ bore with a 7.87″ stroke in a compact form factor. It uses a double-acting, single-rod design for consistent force and employs an M16x1.5 threaded piston rod for secure connections. It includes a PT 3/8 port and two 8mm push-in fittings for quick setup in standard pneumatic systems. Best for: smaller automation tasks where space is at a premium but reliable actuation is required.
Best for: compact lines with moderate thrust needs. Why selected: combination of compact size and reliable operation facilitates integration into tight spaces.
Caution: ensure the shorter stroke aligns with travel requirements to avoid end-of-stroke collisions in high-frequency applications.
TAILONZ PNEUMATIC 4 Inch Bore Cylinder MAL100
The TAILONZ PNEUMATIC 4″ bore dual-action cylinder (MAL25x100) features a PT1/2 port and a single-rod piston. With a 4″ stroke and 1″ bore, it’s suited for moderate force requirements and quick cycling. The aluminum body supports lightweight construction while maintaining durability in automated lines. Best for: mid-sized automation tasks that need reliable actuation with straightforward mounting options.
Best for: projects emphasizing lighter weight and easier installation. Why selected: aluminum construction reduces weight without sacrificing rigidity for medium-duty tasks.
Caution: verify compatibility with your system’s maximum pressure to prevent overloading the cylinder.
TAILONZ PNEUMATIC 20mm Bore MAL20x100
The MAL20x100 from TAILONZ features a 20mm bore and 100mm stroke with aluminum construction noted. It uses PT1/8 port sizing and a double-acting mechanism. This option suits compact, lightweight automation tasks in environments where aluminum components help reduce weight and improve heat dissipation. Best for: small, quick-cycling lines that require reliable performance with minimal footprint.
Best for: tight installations where weight matters. Why selected: aluminum body keeps overall mass lower while maintaining strength for short travel cycles.
Caution: check the port fittings’ compatibility with 6mm tubing to ensure leak-free operation.
SWZHAI Air Cylinder MAL16x300
The SWZHAI MAL16x300 features a 16mm bore and a long 300mm stroke in an aluminum-bodied cylinder designed for high-frequency operation. It includes a bi-directional sealing design to reduce air leakage and a compact Y-connector setup with quick fittings for easy integration. Best for: high-cycle tasks requiring long travel with quick response.
Best for: high-frequency, long-stroke applications. Why selected: aluminum construction plus bi-directional seal design minimizes maintenance and leakage over time.
Caution: longer strokes may require careful mounting to avoid flex or misalignment during extended cycles.
Buying Guide
What bore size do you need?
Bore size determines actuating force. Larger bores deliver more thrust, but require more space and can add weight. Choose a bore that matches the load and travel distance in your application.
Stroke length considerations
A longer stroke enables greater travel but increases cylinder length and potential misalignment risk. Match stroke to the required travel path and end-of-stroke clearances.
Material and construction
Aluminum bodies are lighter and dissipate heat well, which is beneficial for high-frequency cycles. Aluminum caps and end plates add corrosion resistance in cleaner environments. Consider corrosion resistance, wear resistance, and ease of maintenance in your environment.
Port sizing and fittings
Port size (PT 1/2, PT 3/8, PT 1/8) affects compatibility with fittings and tubing. Ensure fittings match your system’s tubing diameter for leak-free operation.
Mounting versatility
Multiple mounting styles broaden installation possibilities. Look for cylinders offering a wide range of mounting configurations to fit awkward or tight spaces.
Maintenance and lifecycle
Self-lubricating bearings reduce maintenance in some models. Consider the availability of spare parts, seals, and rods for long-term operation.
Environmental compatibility
Corrosion-resistant components are preferable in damp or clean environments. If your application involves exposure to moisture, chemicals, or high humidity, prioritize cylinders with corrosion-resistant caps and bodies.
FAQ
- What is the advantage of aluminum in pneumatic cylinders? Aluminum reduces weight and helps with heat dissipation, which can improve performance in high-frequency applications.
- How do I choose the right bore size? Choose according to the required force for your load. Larger bores deliver more thrust but take more space.
- Are push-in fittings compatible with common tubing? Yes, many cylinders include push-in fittings that fit standard tubing diameters. Always verify compatibility with your tubing OD.
- What mounting options should I consider? Look for cylinders with multiple mounting styles to adapt to tight or awkward installations.
- What maintenance is typical for aluminum pneumatic cylinders? Many models use self-lubricating bearings or simple seals; plan for periodic inspections of seals and fittings in high-cycle environments.
- Is a longer stroke always better? Not necessarily. Longer strokes require more space and can increase cycle time. Match stroke to the actual travel needs of your system.
