Air operated gate valves offer reliable, hands-free control for pneumatic systems, tailgates, and dust collection. This guide highlights five top options, suitable for different needs—from rugged tailgate applications to industrial dust systems. The selections favor those with clear operation, robust construction, and practical mounting options. Read on to find the best fit for your setup, whether you prioritize 4‑way control, 3‑way versatility, or built‑in electrical actuation.
| Product | Best For | Key Benefit |
|---|---|---|
| Wryxia BAV010 4‑Way | Tailgate systems | Four ports with two-position manual control |
| PartLogix 3‑Way | Compact gate control | Three-port, easy knob‑based operation |
| Buyers Products BAV010 | Industrial tailgate and pneumatics | Dashboard mounting and face plate included |
| Bluefin Auto-Gates Blast Gate | Dust collection, ducts | Self-cleaning, heavy‑duty metal build |
| Taytools 4″ OD Self Cleaning Gate | Duct system optimization | Open back for self-cleaning and precise routing |
Wryxia Air Valve Push-Pull 4 Way Valve
Best for tailgate control in smaller dump or utility vehicles. This 4‑way, 2‑position valve uses manual control and supports an OD 6mm air line with operation temperatures of -25 to 80 °C and a working pressure of 50–145 PSI. The unit ships with a control face plate and five fittings, making it practical for quick installs in mobile applications.
Who it’s best for: operators needing a compact, manually actuated tailgate valve for light to medium-duty operations. Why selected: straightforward, rugged construction and included mounting accessories speed up installation. Caution: limited to 6mm air line fittings; verify hose compatibility for your system.
PartLogix 3‑Way Push/Pull Manual Tailgate Valve
This 3‑way, 2‑position valve uses a knob for manual pull operation with three 1/4″ NPT ports. It’s well suited for compact tailgate systems where a simple, tactile control is preferred. Best for DIY installations or light‑duty pneumatic control projects.
Who it’s best for: users needing a compact, knob-operated valve without electronics. Why selected: clean, simple interface and standard NPT ports. Caution: three ports limit versatility for larger actuation schemes.
Buyers Products BAV010 4‑Way 2‑Position Manual Air Valve
Designed for tailgate and pneumatic applications, this valve supports four ports with a two‑position manual operation. It’s commonly used where a dashboard or console mounting option is desired, and it includes a tailgate control face plate. Best for: vehicles and setups that require integrated control panels. Caution: ensure your system’s port sizing matches the 1/8″ NPT ports described in its specs.

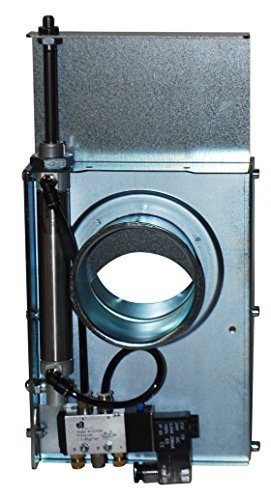

Bluefin Auto-Gates Automatic Blast Gate
This industrial grade 6″ blast gate uses a pneumatically actuated, self‑cleaning blade design. It’s geared toward dust collection systems and ducting where a reliable, automated shutoff is needed. Best for: large draft systems and duct routes requiring robust, high‑duty operation. Caution: may require dedicated 110 V AC solenoid or replacement with a 24 VDC solenoid depending on your control system.
Taytools 4 Inch OD Self Cleaning No Clog Gate
Compatible with 4″ hoses or ducts, this self‑cleaning gate focuses airflow to precise locations, enhancing dust collection efficiency. It features an open slot at the back for self‑cleaning and clog‑free operation. Best for: duct networks where targeted extraction is critical. Caution: 4″ size limits compatibility with smaller systems; check your hose diameter before purchasing.
TAILONZ Pneumatic 1/4″ NPT Solenoid Valve
This 2‑position, 5‑way solenoid valve provides electric actuation for pneumatic control. It uses a 12V DC supply and supports a working pressure range of 25–116 PSI. Best for: automated gate control where electrical actuation is preferred over manual operation. Caution: verify coil voltage compatibility with your system’s power source.
Buying Guide
- Port configuration: Choose 3‑way, 4‑way, or 5‑way valves based on the number of air lines you must control. More ports offer higher versatility but require more space and correct mounting.
- Actuation method: Manual push/pull, knob, or solenoid electrical control. Manual options are simple and rugged; solenoids enable automation and remote operation.
- Pressure and temperature: Ensure working pressure and temperature ratings match your system’s requirements. Incompatible ratings can reduce performance or fail prematurely.
- Port size and fittings: Confirm NPT or other port types (e.g., 1/4″ NPT). Inaccurate fittings cause leaks or installation delays.
- Mounting and accessibility: Dashboard or console mounting options improve operator ergonomics. Consider whether control faces are included or must be purchased separately.
- Self-cleaning capability: For dust collection and duct systems, self-cleaning gates reduce clogging and maintenance. This is especially important in high-dust environments.
Frequently Asked Questions
- What is an air operated gate valve?
It is a valve controlled by compressed air to regulate flow in pneumatic systems, useful for tailgates, dust collection, and ductwork. - When should I choose a manual valve over a solenoid valve?
Choose manual for simple setups, lower cost, and no electrical requirements. Choose solenoid for automation and remote control. - Are 3‑way or 4‑way configurations better?
3‑way is sufficient for simple on/off control with a single exhaust; 4‑way supports more complex actuation paths and double-acting cylinders. - What port size should I expect for pneumatic gates?
Common sizes include 1/4″ NPT and 1/8″ NPT. Verify port dimensions against your hoses and fittings. - Can these valves operate in dusty environments?
Self‑cleaning designs and rugged housings improve reliability in dusty conditions; consider blast gates designed for debris exposure. - Is electrical compatibility important for solenoid valves?
Yes. Check voltage (e.g., 12V DC) and current requirements to ensure compatibility with existing controllers and power sources.
