Find the right 5th axis self-centering vise for precise multi-axis work. This guide highlights top options for different buyers—from hobbyists needing reliable performance to shops seeking rugged, production-ready fixtures. Each pick is shown with who it’s best for and why it stands out, along with practical cautions to consider before buying.
Summary of chosen products
- RATTMMOTOR ZF-70-100: Best for small to mid-size 5-axis jobs requiring quick positive/negative jaw switching.
- XinDianPAF H77-120: Best for versatile 3/4/5-axis setups with a wide clamping range.
- Jieotwice Precision Self-Centering CNC Vise: Best for high stability and versatile clamping in 4- to 5-axis machining.
- RATTMMOTOR ZF-90-150GJ: Best for larger workpieces with extended opening and strong rigidity.
- HHIP 3900-2239: Best for five-axis operations with quick jaw changes and zero-point compatibility.
RATTMMOTOR ZF-70-100 Self-Centering Vise
Model: ZF-70-100; clamping range 6-80 mm; positive jaw clamping 28-80 mm; reverse jaw 6-54 mm. Size 100 x 71 x 52.5 mm; weight 1.86 kg. Features detachable jaws for easy switching between positive and negative jaw configurations, enhancing workflow efficiency. Jaws offer a 0.02 mm repeatability and support 3-, 4-, and 5-axis CNC work. Best for shop floors needing fast changeovers on mid-sized parts.
Best for: Small to mid-size 5-axis workpieces where quick jaw-direction changes improve cycle times. Choose this if you frequently switch between clamping orientations and require reliable repeatability at moderate clamping ranges.
Caution: Ensure the jaw direction swap is performed correctly to avoid misalignment during high-tynamic milling operations.
XinDianPAF H77-120 Self-Centering Vise
Specification: 5.1 inch (130 mm) model, jaw opening 0-4.7 inches; reversible jaws can be disassembled and replaced; repeat positioning accuracy ~0.02 mm; dimensions 130 x 77 x 65 mm. Built with high-hardness steel for wear resistance and designed for electrode and precision mechanical work. Lightweight and portable for shop benches or small CNC stations.
Best for: Users needing a flexible, easy-to-service self-centering vise with replaceable jaws and a wide opening, suitable for electrode work and general precision machining. Better for setups that require frequent jaw customization without buying separate accessory jaws.
Caution: The unit’s dimensions and jaw travel should be matched to your specific machine bed and tool clearance to avoid interference during five-axis travel.
Jieotwice Precision Self-Centering CNC Vise
Features include a claw design for stable clamping and a titanium-plated screw for increased wear resistance. Designed for high versatility, stability, and long service life across 4- and 5-axis CNC machining centers. The robust construction supports repeatable positioning and secure workholding during complex toolpaths.
Best for: Shops needing dependable, high-stability clamping across multi-axis work, especially where long-term wear resistance matters. Choose this when steady, repeatable grip is essential for complex five-axis operations.
Caution: Ensure proper alignment when using in tight workspace conditions; the claw system is effective, but clearance must be checked to avoid interference with tooling during multi-face milling.

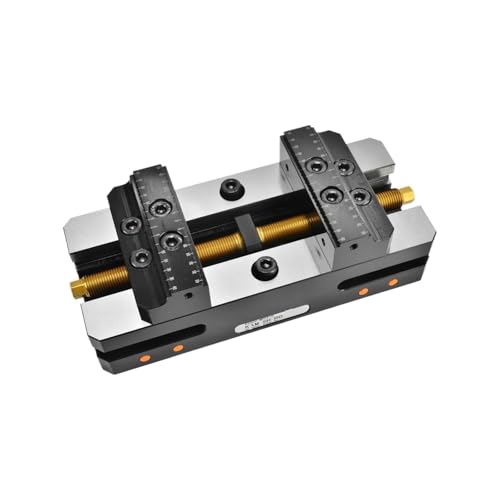

RATTMMOTOR KSSCV-M90210 8 Inch Vise (5 Axis)
Type: 8 inch five-axis self-centering vise. Features enhanced grip for clamping pipes and round materials, suitable for quick clamping and tightening after sanding. Mount on a workbench for sanding clamping and fastening operations. The design emphasizes practical handling and robust clamping in multi-step workflows.
Best for: Carving and finishing workflows where round stock or pipes require reliable clamping between machining stages. Choose this if your primary tasks involve sanding or preparation before finishing passes on a 5-axis setup.
Caution: May be overkill for very small parts; verify jaw travel and contact surface area to ensure it matches your part geometry and machine bed clearance.
HHIP 3900-2239 5-Axis Self-Center Vise
Made in Taiwan with quick reversible jaw changes and a patented swing design on one side of the clamping jaw for better grip when workpieces are not parallel. The Zero-Point vise system enables all-direction clamping and is designed to work with industry-standard 96-mm pin spacing. It includes an angle lock mechanism to prevent workpiece lifting when locked, and a pin-locking cam mechanism for secure operation.
Best for: Applications requiring robust five-axis clamping with quick jaw changes and zero-point compatibility. Suitable for operators who want reliable multi-direction clamping and secure locking during heavy milling tasks.
Caution: The setup relies on compatible pin-spacing; verify your equipment’s compatibility before purchasing. The system adds complexity if your existing fixtures don’t support zero-point standards.
Buying Guide: Key Considerations for 5th Axis Self-Centering Vises
- Jaw design and adjustability: Look for detachable or replaceable jaws to tailor grip for different workpieces. Reversing jaw direction can expand clamping options without swapping entire vises.
- Clamping range and opening: Match the maximum opening and total clamping range to your typical workpiece sizes. A wider range handles more variations in one setup.
- Jaw material and wear resistance: Hardened steel or titanium-plated components reduce wear and improve longevity in high-cycle environments.
- Compatibility with quick-change systems: If your shop uses 52-point or 96-mm pin spacing, ensure the vise is designed to mount directly on compatible plates for fast changeovers.
- Five-axis workflow suitability: Choose a model designed for true five-axis machining with low runout, repeatable positioning, and secure locking to resist lifting during heavy passes.
- Size and clearance: Larger vises offer stronger clamping but require more machine space. Confirm the vise fits your CNC table, spindle clearance, and toolpath clearance.
- Installation and maintenance: Consider ease of installation, ease of jaw changes, and whether accessories (soft jaws, inserts) are readily available to extend use cases.
Frequently Asked Questions
- What is a self-centering vise?
– It is a workholding device with jaws that automatically center around the workpiece, enabling repeatable clamping for multi-axis machining. - Why choose a 5-axis self-centering vise?
– It allows stable, repeatable clamping across multiple faces, reducing setup time in five-axis milling scenarios. - Should I pick detachable jaws?
– Yes, detachable or replaceable jaws provide flexibility for diverse workpiece geometries and protect delicate surfaces. - What should I verify about jaw travel?
– Confirm that jaw opening, positive/negative clamping ranges, and travel align with your typical part dimensions and tool geometry. - Are zero-point systems necessary?
– They enable rapid repeatable setups, but require compatible plates and pin layouts; verify compatibility with your CNC tooling ecosystem. - Is bigger always better?
– Larger vises can clamp bigger parts but may introduce more weight and require more machine space; balance with your usual part size and machine footprint.
