Pneumatic valves are essential for controlling air-powered systems in automation, robotics, and manufacturing. This guide highlights five reliable 4-way pneumatic valves from well-known brands, featuring different actuation styles (solenoid, hand lever, and rotary lever) to suit diverse setups. Each option provides clear running capabilities, straightforward installation, and robust construction for durable performance in industrial environments. Use the buying guide below to compare actuation types, voltages, port sizes, and mounting options to select the best valve for your system.
| Product | Brand | Key Feature |
|---|---|---|
| TAILONZ PNEUMATIC 1/4″NPT 5 Way 2 Position DC110V | TAILONZ PNEUMATIC | AC110V operation, 2-position, 5-way with junction box |
| TAILONZ PNEUMATIC 1/4″NPT 5 Way 2 Position DC12V | TAILONZ PNEUMATIC | DC12V operation, 2-position, 5-way with outlet wiring |
| Hand Lever Valve AirTAC 4HV210-08 | Airvexalon | Manual rotary control, 4/2 way, 25-145 PSI |
| Baomain 4 Station Solenoid Valve Manifold, 24V DC | Baomain | Integrated 4-station manifold, quick-connect fittings |
| TAILONZ PNEUMATIC 1/4″NPT 5 Way 3 Position | TAILONZ PNEUMATIC | 5-way, 3-position hand lever control |
TAILONZ 1/4″ NPT 5 Way Solenoid Valve AC110V – 2 Position
Product: 2-Position 5-Way Solenoid Valve (Junction Box) with AC110V operation. This valve uses a dual-acting coil arrangement, opening or closing based on coil state. It is suitable for compact automation panels where space is at a premium. The valve is designed to handle pressures within typical pneumatic systems and uses a junction box for convenient wiring. The published working temperature and pressure ranges enable reliable performance in standard shop and industrial environments.
TAILONZ 1/4″ NPT 5 Way Solenoid Valve DC12V
Product: 2-Position 5-Way Solenoid Valve with DC12V operation and outlet wiring. This valve type behaves similarly to the AC version but is optimized for DC control. It features a standard 1/4″ NPT connection and a compact footprint, making it suitable for control panels and modular automation setups where DC control is preferred. The valve operates such that the default state is open when the coil is de-energized and closes when energized, aligning with many safety and fail-safe designs.
AirTAC Hand Lever Valve 4HV210-08 1/4″ PT 4/2 Way
Product: 4/2 way hand lever valve with manual control and 1/4″ PT ports. The aluminum alloy body provides light yet sturdy construction to suit compact automation devices. This manual valve supports a wide operating temperature and a moderate pressure range, enabling user-friendly control for pneumatic circuits that require tactile operation or manual override capabilities during testing or maintenance.
Baomain 4 Station Solenoid Valve Manifold, 24V DC
Product: 4-station pneumatic valve manifold in a single base with 24V DC solenoids. Includes 4 valves and a manifold base with mufflers. The design simplifies installation, reduces space requirements, and is compatible with common 1/4″ PT ports. Quick-connect fittings and integrated exhaust features support fast setup and cleaner piping layouts in automated lines that require parallel actuation for multiple cylinders.
TAILONZ PNEUMATIC 1/4″ NPT 5 Way 3 Position Hand Lever Valve
Product: 5-way, 3-position hand lever valve with 1/4″ NPT ports. This valve adds a manual override along with a robust 25-116 psi operating pressure range. It is suited for equipment where quick manual control is required, such as clamping or rotation tasks on small automation platforms. The compact form factor helps integrate into control panels with limited space while offering positive mechanical feedback for operator control.

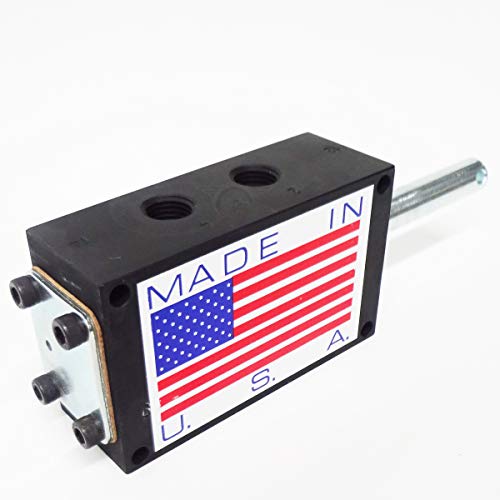

Coats Tire Changer 4-Way Pneumatic Control Valve
Product: A 4-way pneumatic valve commonly used on Coats tire changers. This valve is foot-pedal operated on many models, controlling multiple functions such as wheel clamping, bead breaking, turntable rotation, and other air-driven actions. It provides a practical solution for OEM and retrofit applications where a robust, pedal-controlled valve is required for large tooling and automated tire service equipment.
Buying Guide: Key Purchase Considerations
- Actuation Type: Solenoid, hand lever, and rotary hand valves offer different control methods. Choose based on automation needs, emergency override requirements, and space constraints.
- Port Size and Connections: Common 1/4″ NPT ports fit many standard pneumatic systems, but verify port diameter and thread type to ensure compatibility with existing fittings and manifolds.
- Voltage and Power: DC vs AC actuation affects control wiring and power supply requirements. DC options are common in low-voltage control circuits, while AC versions are often used in industrial panels with standard mains connections.
- Valve Configuration: 4/2, 5/2, and 5/3 configurations define the number of ports and positions. Match to your cylinder count and desired motion sequence (double-acting cylinders require appropriate porting).
- Mounting and Size: Compact footprints save panel space; check mounting patterns and base dimensions to ensure proper fit in your enclosure or machine bed.
- Materials and Durability: Aluminum bodies and corrosion-resistant components extend life in shop environments. Consider environmental conditions such as temperature and humidity.
- Maintenance and Accessories: Look for features like mufflers, exhaust ports, and easy-to-replace seals. Some manifolds ship with integrated mufflers for quieter operation.
- Integrated vs. Standalone: Manifolds consolidate multiple valves for simplicity and reduced wiring. Standalone valves offer modular flexibility if your setup evolves.
