Buying a 3 stage dry sump pump means prioritizing reliability, flow, and compatibility with your engine build. The top picks below are selected for performance-focused buyers seeking robust dry sump setups. This guide highlights pros, best-use cases, and quick cautions to help you decide. The table at a glance summarizes the key choices for fast comparison.
| Product | Brand | Stage / Drive | Pressure & Scavenge | Notes |
|---|---|---|---|---|
| Peterson Fluid Systems 04-3066-HEX | Peterson Fluid Systems | 3 Stage • 3/8″ Hex Drive • Driver Side | 1.400 in Pressure • 1.400 in Scavenge | Low profile for easier mounting |
| Moroso 22303 Tri-Lobe Dry Sump Pump | Moroso | 3 Stage | 1.200″ Pressure Section • Inlets/outlets listed | Fits GM LS engines; right-side mounting |
| Peterson Fluid Systems 04-3016-HEX | Peterson Fluid Systems | 3 Stage • 3/8″ Hex Drive • Driver Side | 1.400 in Pressure • 1.200 in Scavenge | Low profile; reverse rotation option |
| Moroso 22363 3 Stage Tri-Lobe Dry Sump Pump | Moroso | 3 Stage | Tri-lobe scavenge with timing gears | Fuel pump drive compatibility; drag-race oriented |
| Moroso 22443 3 Stage Tri Lobe Dry Sump Pump | Moroso | 3 Stage | Tri-lobe; driver’s side mount | High RPM clearance and timing gear design |
Peterson Fluid Systems 04-3066-HEX Oil Pump
The Peterson 04-3066-HEX is a three-stage dry sump pump with a 3/8 inch hex drive and a driver-side configuration. It delivers 1.400 inch pressure and 1.400 inch scavenge, making it suitable for high-demand engines requiring robust oil throughput. Best for builders seeking a compact, high-flow dry sump with a low-profile footprint for tighter engine bays. A potential limitation is the mounting space requirement due to its geometry, so verify clearance before installation.

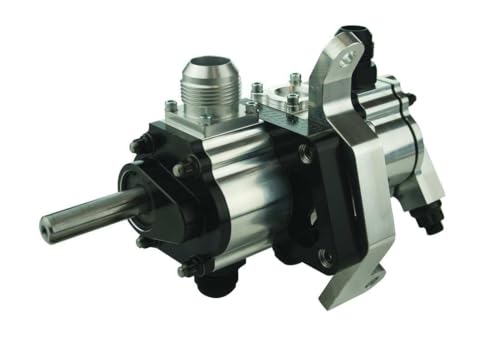

Moroso Tri-Lobe Dry Sump Pump 22303
The Moroso 22303 is a 3-stage dry sump pump designed for GM LS engine blocks, featuring a 1.200″ pressure section. It aligns with factory A/C bracket holes on the right side of the block, helping simplify installation. It includes various fittings (-16AN inlet, -12AN inlets/outlets), supporting diverse oil routing configurations. Best for LS engine builds with space constraints and the need for a compact, versatile pump. Choose this if engine block mounting compatibility and fittings variety are priorities; avoid if you require a larger pressure section.
Peterson Fluid Systems 04-3016-HEX Oil Pump
The 04-3016-HEX from Peterson is a three-stage dry sump pump with a 1.400 inch pressure section and a 1.200 inch scavenging section, plus a reverse-rotation option. The driver-side, low-profile design supports easier mounting in compact engine bays. Best for setups that require a slightly smaller scavenging capacity with a robust pressure stage. Limitations may include availability of reverse-rotation configurations for certain builds.
Moroso 22363 3 Stage Tri-Lobe Dry Sump Pump
The Moroso 22363 offers a Tri-Lobe dry sump solution with a 3-stage design and a 1.200″ pressure section, featuring individual timing gears for consistent clearance at high RPMs. It uses a spur gear pressure section like Moroso’s billet wet sump design and is optimized with variable spring rates for stable oil pressure. Best for drag-race and high-RPM applications where precise pressure control matters; choose this if high RPM stability is crucial, and avoid if you need a larger scavenging capacity beyond 1.200″ or require a different drive orientation.
Moroso 22443 3 Stage Tri Lobe Dry Sump Pump
The Moroso 22443 is a driver’s side mount Tri-Lobe dry sump pump designed for high-performance applications. It emphasizes tri-lobe aluminum scavenge sections with individual timing gears to ensure clearance at peak RPMs and uses Moroso’s billet-style pressure section design. Best for engines requiring reliable high-RPM oil management and a driver-side mount; avoid if your space requires a different mounting orientation or you need a broader scavenge capacity beyond the scavenge provisions of this model.
Buying Guide
- Mounting orientation and space: Check driver-side vs rear-drive configurations and overall footprint to fit your engine bay.
- Pressure vs. scavenging capacity: Higher pressure sections support intense load; ensure scavenging capacity matches your oil demands and pickup routing.
- Engine compatibility: Some pumps are tuned for GM LS blocks or specific engine platforms; verify compatibility with your block and brackets.
- Drive interface: Hex drive vs belt-driven options affect installation and drive compatibility with your accessory layout.
- Fittings and plumbing: Check inlet/outlet sizes and available fittings to minimize custom piping.
- RPM performance: Tri-lobe designs excel at high RPMs; consider whether your application involves drag racing, bracket racing, or endurance use.
FAQ
- What is a 3-stage dry sump pump? It uses three separate stages to move oil: typically two or more scavenge stages and a pressure stage to deliver oil under pressure to bearings and components.
- Which pump is best for LS engines? Moroso 22303 is specifically described for GM LS engine blocks with compatibility for right-side mounting and standard fittings.
- Why choose a low-profile pump? A low-profile pump fits tighter engine bays and helps maintain routing flexibility for lines and accessories.
- What is the benefit of a reverse-rotation option? Reverse rotation can align with engine-driven accessories and reduce interference in certain installations.
- Are fittings included with these pumps? Several models include or support standard -16AN and -12AN fittings; check each product’s listed features for included hardware.
- Is a high RPM performance necessary? For drag or high-RPM race applications, tri-lobe designs with precise timing gears provide stable oil pressure at top RPMs.
