Whether you’re upgrading a three‑phase system or building a new industrial setup, choosing the right 3 phase air compressor pressure switch is essential for performance and safety. This guide covers five solid options, highlighting who each product is best for and where they excel. You’ll find clear comparisons, practical buying tips, and a concise FAQ to help you decide quickly.
Summary of top choices: the table below lists the five selected models, their voltage compatibility, and who they’re best for. Use this as a quick reference when narrowing down options for your application.
| Product | Voltage / Phase | Best For | Notes |
|---|---|---|---|
| Jwn 3-Phase 90-120 PSI | 230V/380V/400V, 16A | General 3‑phase compressors needing adjustable 3–12 bar | Versatile for multiple voltages |
| Square D 9013FHG12J52M1X | 95–125 PSI, 1 Port | Small to midsize systems with unloader | Includes unloader and lever |
| Vikye 4‑Hole 380V 3‑Phase | 380V, 20A | High‑voltage, robust builds | High max voltage, durable |
| Hyuduo 380V 3‑Phase, 20A | 380V, 20A | Three‑phase systems needing simple control | Includes 20A drive rating |
| I.E.E Square D 135–175 PSI | 100–200 PSI adjustable | Two‑stage systems needing higher range | Unloader valve and lever included |
Jwn 3-Phase 90-120 PSI Air Compressors Pressure Switch
The Jwn pressure switch is designed for multi‑voltage three‑phase networks, including 230V, 380V, and 400V, with a 16A rating. It offers an adjustable pressure range from 3 to 12 bar to fit a wide variety of air storage and delivery requirements. This model is best for shops or plants using mixed equipment that require a single switch for different 3‑phase configurations. A caution: verify the actual wiring and voltage compatibility in your control panel before installation to avoid miswiring or motor stall.
Who it’s best for: facilities needing versatility across common industrial voltages and a broad pressure range. The switch is a strong match for mid‑sized compressors that require reliable start/stop control without frequent recalibration.
Key limitations: The multiple voltage options can complicate wiring for first‑time installers. Ensure proper electrical protection and correct phase identification during setup.
Square D Pumptrol 9013FHG12J52M1X 95-125 PSI
The Square D 9013FHG12J52M1X is a compact pressure switch with an unloader and an ON/OFF lever, supporting 95–125 PSI. It’s suitable for single‑port setups where reliable unloader control is important to reduce pump wear and cycling. This option is better for smaller pressure systems or retrofit projects where a standard unloader function is required.
Who it’s best for: users upgrading a compact air system that benefits from a simple, proven lever‑operated control with unloader functionality.
Limitations: With a 95–125 PSI range, it may not cover higher demand applications without additional valve adjustments or controller changes.
Vikye G1/4″ 380V 3 Phase Pressure Switch
The Vikye pressure switch uses a G1/4″ interface and is designed for 380V three‑phase systems with a maximum working pressure up to 175 PSI. It’s built from a mix of metal and plastic, aiming for durability and straightforward replacement. This model fits higher‑voltage setups and is chosen for reliability in robust industrial environments.
Who it’s best for: higher‑voltage installations needing a compact, durable control valve that’s easy to install and replace.
Limitation: Some users may need to confirm compatibility with their exact motor starter and wiring scheme to ensure a seamless fit.
Hyuduo Three-Phase 380V Pressure Switch, 20A
The Hyuduo model is a three‑phase 380V pressure switch rated at 20A, with a straightforward control function for start/stop based on storage tank pressure. It emphasizes safety and reliability, making it suitable for mid‑to‑large industrial applications that require consistent cycling control and a robust drive capability.
Who it’s best for: facilities needing a dependable, higher‑amp switch for frequent operation in a 380V three‑phase system.
Limitation: Higher current ratings necessitate proper wiring protection and appropriate gauge wiring to avoid overheating in long runs.
I.E.E Square D 135-175 PSI Pressure Switch
The I.E.E Square D 135–175 PSI switch is designed for 2‑stage compressors and includes an unloader control valve and an ON/OFF lever. It is adjustable between 100–200 PSI and features a single 1/4″ NPT sensing port. This makes it a strong choice for systems requiring a higher pressure limit and a simple manual override.
Who it’s best for: two‑stage or higher‑end systems needing a higher start/stop threshold and an integrated unloader function.
Limitation: The 1/4″ sensing port size may require compatible fittings and may influence installation in tighter control panels.
LOCADENCE 380V 20A Pressure Switch
The Locadence switch supports 380V three‑phase systems with a 125 PSI range and a G1/4″ port. It emphasizes electricity efficiency, durable materials, and easy installation as a replacement for older switches. It is a pragmatic choice for facilities seeking a balance of performance and modernization.
Who it’s best for: operations looking to replace an aging switch with a durable, cost‑effective upgrade that improves electrical efficiency.

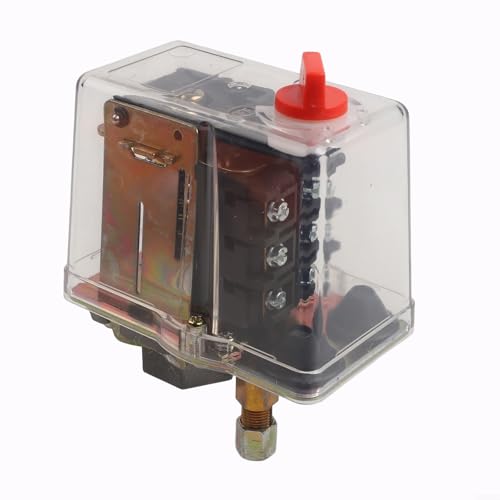

Deskbloom Three Phase Pressure Switch Controller
The Deskbloom three‑phase switch supports 380V and 400V systems with a 5–8 bar (roughly 72–116 PSI) range and a three‑wire connection. It’s designed for industrial use, offering adjustable regulation for precise control over pressure in demanding environments. This model is a fit for projects needing a compact, versatile 3‑phase controller with stable performance.
Who it’s best for: industrial settings requiring adjustable, reliable pressure control within a specific mid‑range window.
Buying Guide: Key Considerations for 3 Phase Pressure Switches
- Voltage and phase compatibility: Ensure the switch supports your system’s voltage (230V, 380V, 400V) and phase configuration. Choosing the wrong voltage can damage the control circuit.
- Pressure range and adjustment: Match the switch’s operating range to your compressor’s deliverable pressure. Consider whether the unit allows easy adjustment for future needs.
- Unloader valve and lever: An unloader reduces motor wear by venting air from the pump when stopping. Levers provide manual control useful during maintenance.
- Port size and fittings: Check sensing port and inlet/outlet thread sizes (commonly 1/4″ NPT or similar) to ensure compatibility with your plumbing and fittings.
- Durability and build quality: Look for switches with robust metal components for long life in harsh environments, especially at 380V/400V.
- Ease of installation: Consider whether the switch includes clear wiring diagrams, readily available replacement parts, and straightforward mounting options.
- Safety and compliance: Ensure the unit meets local electrical standards and is compatible with your motor protection scheme.
Fast comparison: Which switch to choose by scenario
- Best for versatility across voltages: Jwn 3-Phase 90-120 PSI.
- Best for compact systems with unloader: Square D 9013FHG12J52M1X.
- Best for high‑voltage, heavy use: Vikye 380V 3‑Phase.
- Best for straightforward 380V control with solid drive: Hyuduo 380V 20A.
- Best for high range and unloader features: I.E.E Square D 135–175 PSI.
Frequently Asked Questions
- What is a three‑phase pressure switch used for?
It starts and stops an air compressor based on tank pressure and protects the motor from overload. - Do I need an unloader valve?
An unloader valve helps reduce motor stress during startup by venting pressure from the pump. - Can I mix 3‑phase switches with single‑phase motors?
No. Use a switch designed for the motor’s voltage and phase configuration to avoid electrical issues. - How important is the PSI range?
The range should match your compressor’s operating requirements; too narrow a range can cause frequent cycling. - Is higher current rating always better?
A higher rating supports heavier loads, but requires proper wiring and circuit protection to avoid overheating. - What installation checks should I perform?
Inspect port sizes, thread types, and wiring diagrams; verify voltage, phase, and unloader compatibility before powering up.
